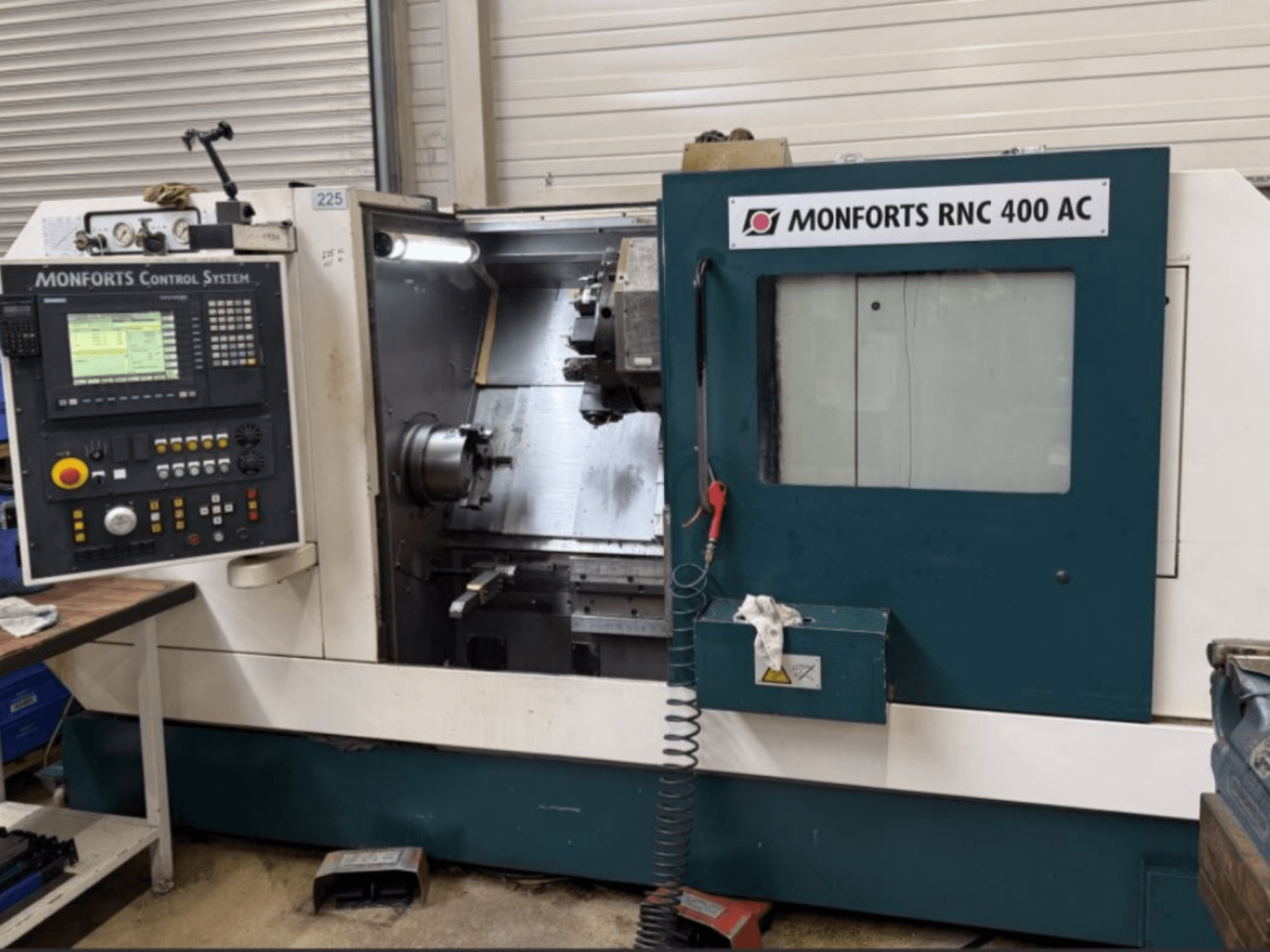

Horizontal turning machine manufactured in 2000. This Monforts RNC 400 AC features a turning length of 600 mm and a swing over bed of 410 mm. It is equipped with a 12-station disc turret and a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 400 AC machine we have for sale. Contact us for further details.
Overview
- brand: Monforts
- year: 2000
- MODEL: RNC 400 AC
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - Monforts RNC 400 AC
Dimensions
- Machine Weight: 6800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 410 mm
- Z-axis Travel: 280 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 30 kW
- Spindle Speed: 4000 RPM
Additional Information
CNC memory: 256 kB (buffered RAM), expandable to 1.5 MB
Programming language: DIN 66 025 with high-level language extensions
Swing over bed: 410 mm
Swing over cross slide: 280 mm
Turning length: 600 mm
Spindle bearing diameter: 130 mm
Spindle nose: DIN 55026 A6
Material clearance (bar capacity): 65 mm
Max. torque: 500 Nm
Axes/feeds: AC servo drives with electronic safety monitoring; rapid traverse X/Z 24/24 m/min; feed force X/Z 7.2/10.7 kN
Turret: 12-station disc turret (DIN 69880/VDI 3425/2), 40 mm shaft diameter
Driven tools: 12 stations; max power 13.6 kW (25% ED); max torque 28.9 Nm; max speed 4500 rpm
C-axis: 0–25 rpm; 300 Nm holding torque
Tailstock: Separate guide rail; manual clamping; 900 mm travel; 90 mm quill stroke; 12,000 N force (adjustable); MT3
Hydraulic system: Central pressure oil supply for hydrostatics and clamping
Cooling: 310 L tank; reinforced coolant pump (3 bar, 40 L/min)
Bed: 60° slant bed; steel welded construction on reinforced concrete base with 3-point support
Power requirements: 3x400 V, 50 Hz; total connected load 20.5 kW (41 kVA)
Additional equipment
Hydraulic hollow clamping device
Parts catcher
A6 drawtube for collet chuck
200 mm suction nozzle
1 GB storage expansion
Network card
Driven tools with tapping without compensation chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
