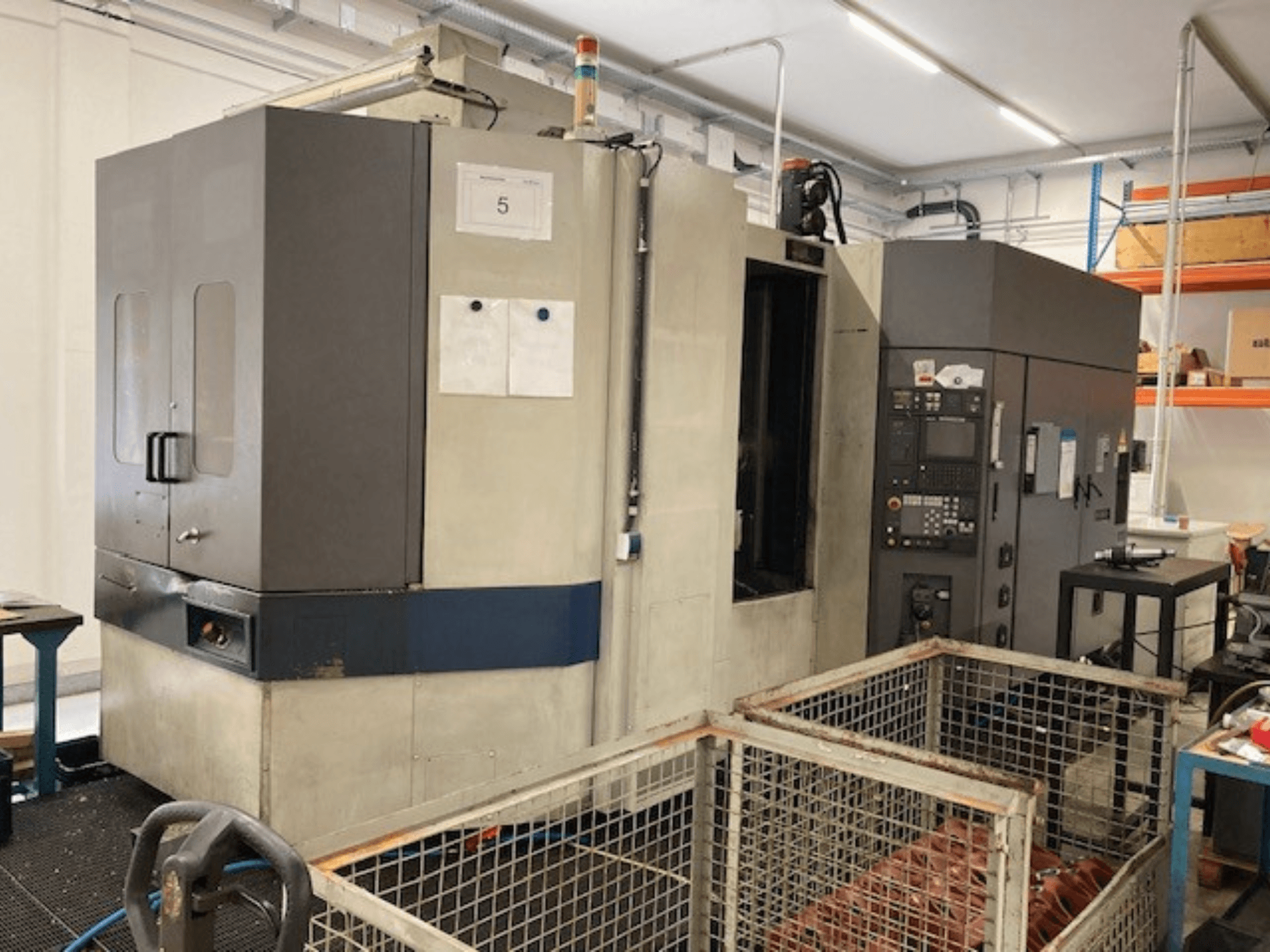

This 4-axis MORI SEIKI SH633 was manufactured in 2001. It features an X-axis travel of 840 mm, Y-axis travel of 760 mm, and Z-axis travel of 840 mm. The machine is equipped with 2 pallets, each measuring 630 x 630 mm, and can handle a maximum workpiece weight of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SH633 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2001
- MODEL: SH633
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - MORI SEIKI SH633
Dimensions
- Machine Weight: 18500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 840 mm
- Y-axis Travel: 760 mm
- Z-axis Travel: 840 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 10000 RPM
Additional Information
Machine mass: 17,800 kg
Number of pallets: 2
Pallet size (L x W): 630 x 630 mm
Maximum workpiece weight: 1,200 kg
Number of tool pockets: 60
Electrical specs:
Phase: 3
Frequency: 50 Hz
Voltage: 200 V
Full load current: 252 A
Spindle motor current rating: 120 A
Interrupting capacity: 5 kA
Rated power: 87 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
