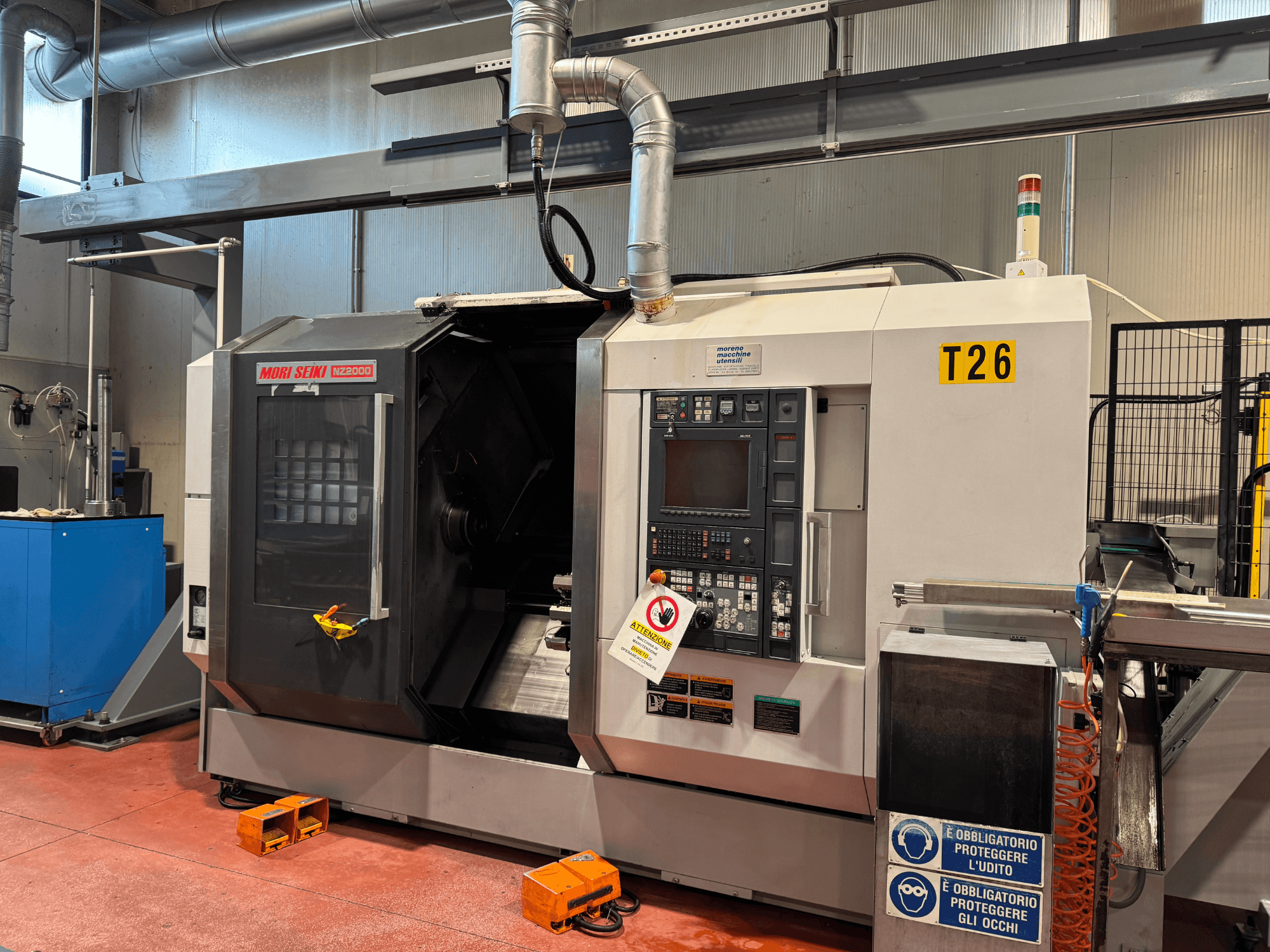

MORI SEIKI - NZ-2000/T2/Y2 IT-TUR-MOR-2008-00001

• Control/NC

  • Control unit: MORI SEIKI MSX-701

  • NC system: FANUC FS-31iA (MAPPS 3); MAPPS version: 3

  • Software/features: Load monitor; Tool life management; Number of stored programs: 250; User memory: 50 MB; Tool offset pairs: 99; Custom macro variables: 600

  • Languages: NC and MAPPS screens in Italian

• Electricals/destination

  • Voltage: 380–480 V; Frequency: 50 Hz; Destination: Europe

• Machine configuration

  • Bed length: 800 mm

  • C-axis on both spindles

  • 2 turrets with X-Y-Z axes

  • Both turrets originally equipped with live tooling

  • Lower turret live tooling currently NOT working (turning functions OK)

  • Suitable for complex multi-process turning and milling

• Spindles

  • Main spindle (Spindle 1)

    • Through-hole diameter: 73 mm

    • Chuck type: Hollow chuck 8"; Chuck through-hole: 65 mm; Chuck manufacturer: KITAGAWA

    • C-axis: Included; Spindle orientation: Included (without lock); C-axis brake: Included

  • Sub spindle (Spindle 2)

    • Power: 25/22 kW; Speed: 5,000 rpm

    • Through-hole diameter: 73 mm

    • Chuck type: Hollow chuck 8"; Chuck through-hole: 65 mm; Chuck manufacturer: KITAGAWA

    • C-axis: Included; Spindle orientation: Included (without lock); C-axis brake: Included

• Axis travels

  • B: 810 mm

  • Max. distance between spindle noses: 1,130 mm

• Turrets

  • Turret 1: Axes X-Y-Z; 16 stations; Milling function included; Rotary tool speed: 6,000 rpm; Tool mounting: By bolts

  • Turret 2: Axes X-Y-Z; 16 stations; Milling function present but NOT working; Rotary tool speed: 6,000 rpm; Tool mounting: By bolts

  • Backward tool max lengths: 155 mm (upper turret), 100 mm (lower turret)

• Tool presetting

  • Spindle 1 in-machine tool presetter: Manual (detachable)

  • Spindle 2 in-machine tool presetter: Manual (detachable)

• Coolant/chip (machine-integrated)

  • High-pressure coolant system: 635 W / 1040 W

  • Coolant type: Water-soluble

  • Through-spindle air blow: Included

  • Chip disposal direction: Right

• Interfaces

  • Bar feeder interface: Included (Multiple-bar feeder specification; LNS)

  • Robot interface: Included

• Languages/documentation

  • Manuals: Italian

  • Documentation: Installation, Operation, Maintenance manuals; Declaration of Conformity; CE Certificate

• Important note

  • Lower turret motorized tooling function faulty on both machines. T2 turret currently usable only for turning operations.

Additional equipment

• Automation/handling

  • RR Robotica loading portal (included)

  • Loading pallets (included)

  • Work loader (Spindle 2 side)

  • Workpiece ejector

  • Work unloading conveyor

  • Part receiver

  • Custom upper door hatch for portal loading/unloading (non-original)

• Chip/coolant peripherals

  • Drag-type chip conveyor

  • Coolant tank with washing pumps

  • Additional non-original 20 bar high-pressure pump

• Workholding and tooling

  • Main spindle and sub spindle chucks included (KITAGAWA 8" hollow)

  • Fixed tool holders: 8 total (4 upper + 4 lower)

  • Driven tool holders: 2 axial, 2 radial

• Electrical/other

  • External machine transformer

  • Signal light tower: 3-tier (red / milky white / green)

  • Twin chuck footswitch
