➤ Used HWACHEON VT550R For Sale | gindumac.com

Show in original language

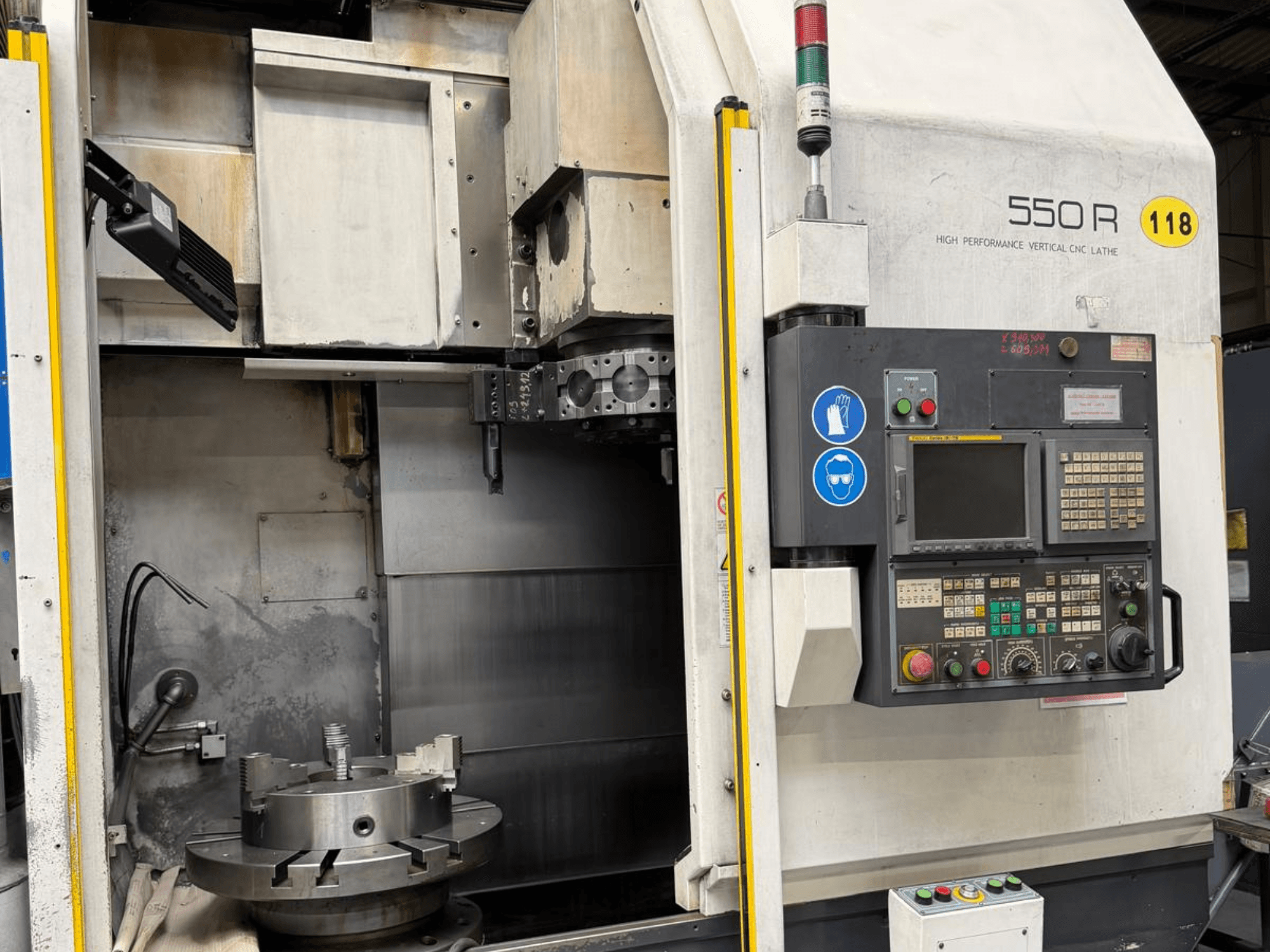

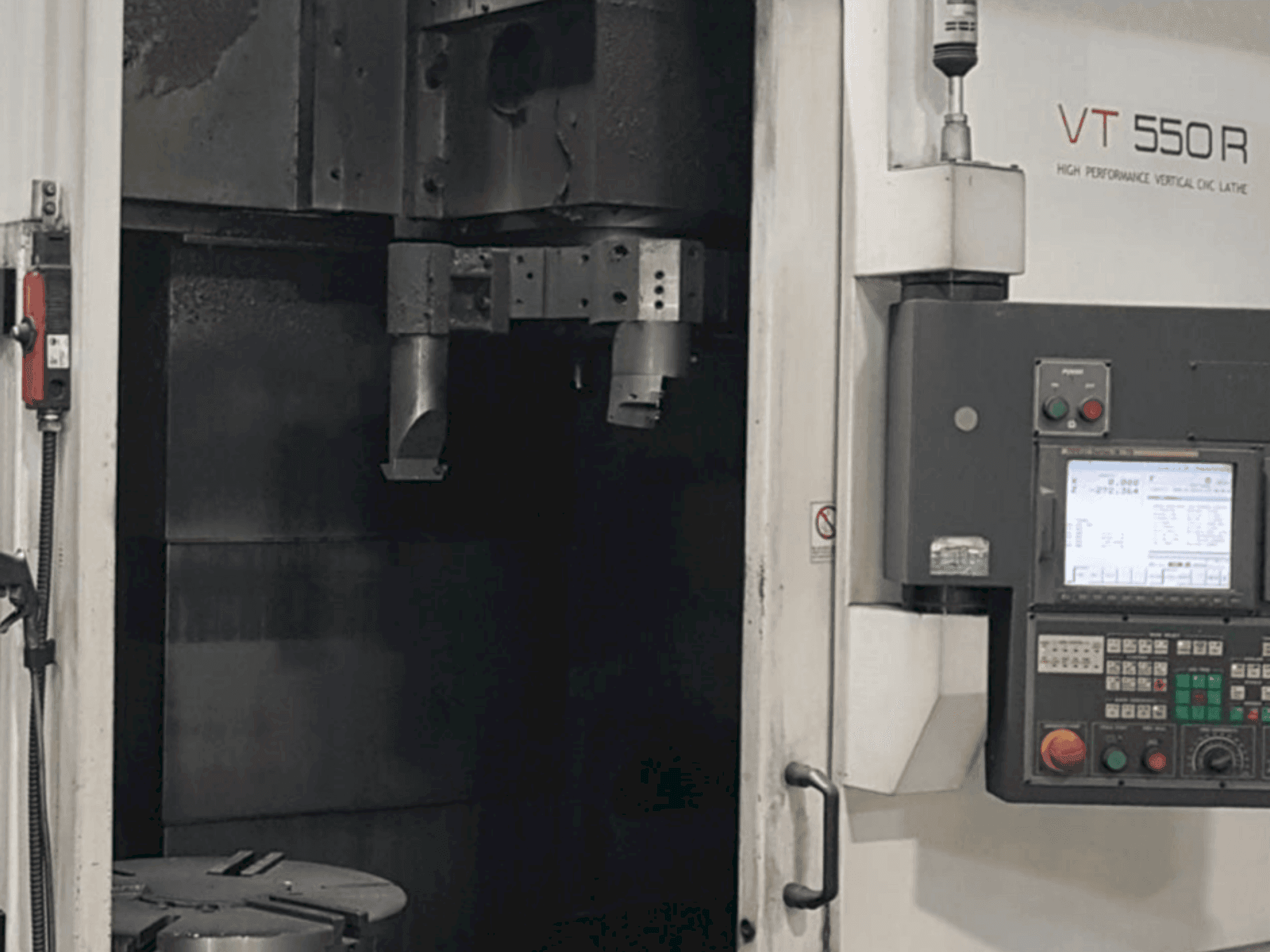

This HWACHEON VT550R was manufactured in 2008. It features a hydraulic chuck diameter of 500 mm, a maximum turning diameter of 650 mm, and a spindle speed up to 1,500 RPM. The machine includes a 12-position turret and a chip conveyor, ensuring efficient operation. Consider the opportunity to buy this HWACHEON VT550R turn-mill centre. Contact us for more information about this machine.

Overview

brand: HWACHEON
year: 2008
MODEL: VT550R
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - HWACHEON VT550R

General Data

Measurements width: 2200 mm
Measurements depth: 3000 mm
Measurements height: 3300 mm
Machine weight: 13000 kg

Main drive

Spindle bore: 100 mm
Number of axis: 2

Movement

X-AXIS Movement: 350 mm
Z-AXIS Movement: 790 mm

Tools

Max tool diameter: 50 mm

Additional Information

Max turning diameter: 650 mm
Max swing diameter: 820 mm
Max turning length: 700 mm
Spindle head: ASA A2-11
Spindle bearing diameter: 160 mm
Rapid traverse: 20,000 mm/min
Turret positions: 12
Tool square size: 25 × 25 mm
Connected load: 75 kVA

Additional equipment

Hydraulic self-centering chuck: Ø500 mm
Chip conveyor
Static motorized tool kit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
