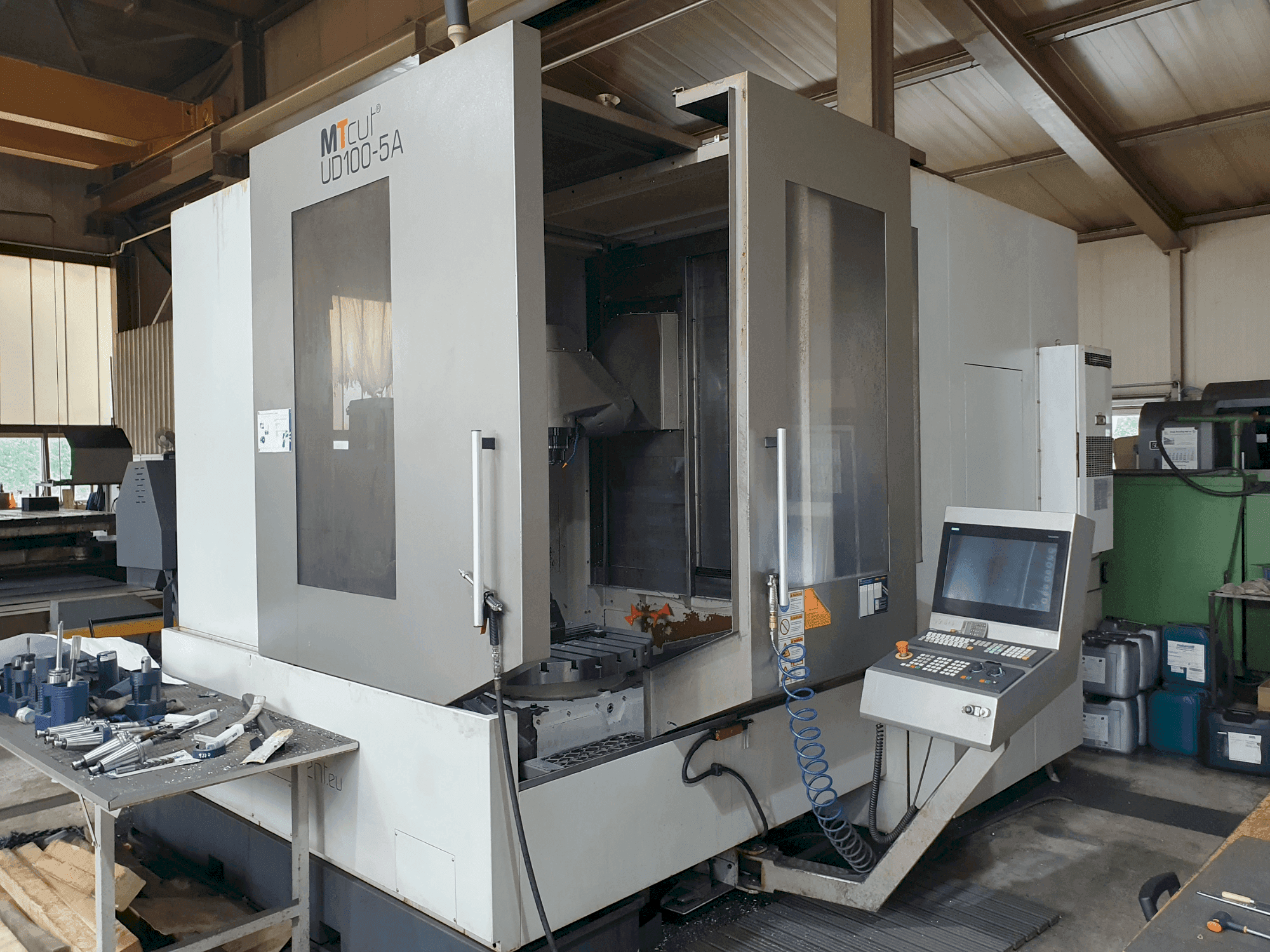

Front view of MTcut UD100-5A  machine

MTcut - UD100-5ADE-MIL-MTC-2017-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This 5-axis MTcut UD100-5A was manufactured in 2017 and features a robust design with a 1,000 mm X-axis, 800 mm Y-axis, and 700 mm Z-axis. It includes a 52-position tool changer, integrated rotary table, and a milling swivelling head with a 14,000 rpm spindle. Ideal for complex machining tasks, the MTcut UD100-5A machining center we have for sale is immediately available. Contact us for further details regarding this machining center.


  • brand: MTcut
  • year: 2017
  • MODEL: UD100-5A
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Sold

Technical Information - MTcut UD100-5A

Main drive

  • Number of spindles: 1
  • Spindle speed range: 14000 rpm 1/MIN
  • Spindle motor power: 29 kW
  • Number of axis: 5


  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 700 mm
  • B-AXIS Movement: 0-180º MM
  • C-AXIS Movement: 0.001 x 360º MM


  • Type of tool holder: SK40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Torque: 160 nm // milling swivelling head features: torque motor, hydraulic clamping, swivelling range 0-180º, infinitely variable, 14,000 rpm, 160 nm torque, drive power 29 kw, separate spindle cooling
      • - Spindle nose to table distance: 5-750 mm
      • - Machine table dimensions: Ø 1,000 mm x 800 mm
      • - T-slots in the table: 7 // t-slot width: 18 mm h8 // t-slot spacing: 100 mm
      • - Feed rate: 1-20,000 mm/min
      • - Positioning accuracy: ± 0. 005 mm/300 mm // repeat accuracy: ± 0. 003 mm
      • - Integrated rotary table features: 360º stepless, hydraulic clamping, Ø1000mm x 800mm
      • - General features: 52-position tool changer with double arm gripper, coolant and compressed air gun, chip conveyor, coolant device, electronic handwheel, work area light
      • - Spindle cooling: water cooled
      • - Ell gear x/y/z: 24/24/24 m/min

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
