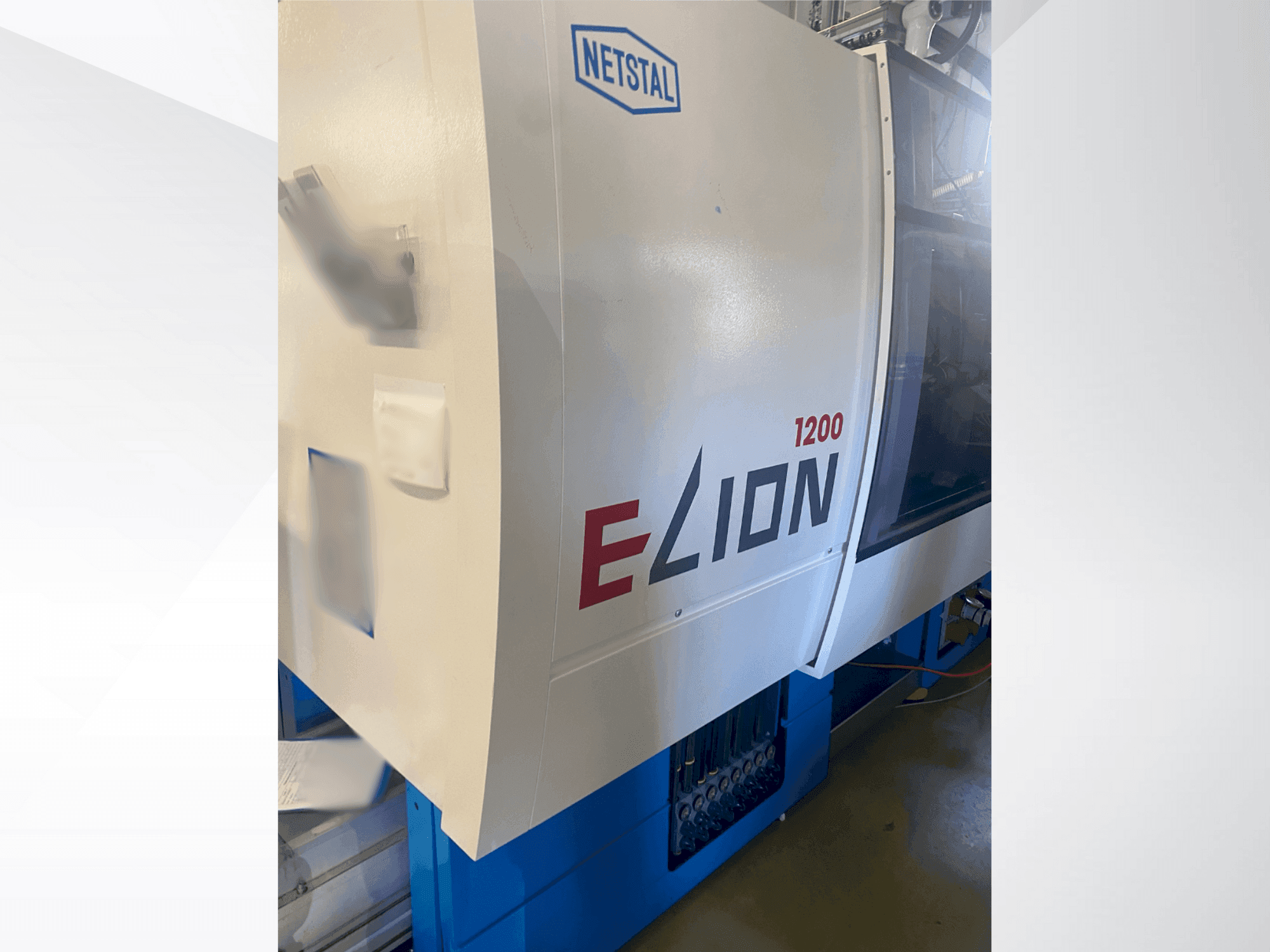

This Netstal ELION 1200-270 was manufactured in 2005. A robust hydraulic injection moulding machine, it features a closing force of 1200 KN and a screw diameter of 32 mm. It offers a maximum shot weight of 98.8 grams and an impressive injection pressure of 2350 bar. Ideal for precision molding with a dry cycle stroke of 322 mm. A great opportunity to buy this Netstal ELION 1200-270 hydraulic injection moulding machine. Contact us for further details regarding this machine.
Overview
- brand: Netstal
- year: 2005
- MODEL: ELION 1200-270
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Netstal ELION 1200-270
General Data
- Measurements width: 1780 MM
- Measurements depth: 4966 MM
- Measurements height: 2044 MM
- Machine weight: 9050 KG
Injection Unit
- Screw diameter: 32 mm
- Shot weight: 98.8 g (ps)
- Injection pressure: 2350 bar
- Heating capacity: 17.7 kW
Clamping unit
- Clamping force: 1200 kN
- Opening stroke: 440 mm
- Distance between bars: 460 x 460 mm
- Mould height min: 250 mm
- Mould height max: 550 mm
- Ejector stroke: 120 mm
- Ejector force for / back: 33 kn
Additional Information
- Technical Machine Benefits:
- - Max metering stroke: 128 mm
- - Max shot volume: 102. 9 cm³
- - Standard injection flow rate: 201. 1 cm³/s
- - Power injection flow rate: 361. 9 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s
- - Max screw speed force/speed/master: 400 / 530 / 550 rpm
- - Max torque force: 480 nm
- - Max torque speed: 330 nm
- - Max torque master: 480 nm
- - Opening force: 1200 kn
- Qualitative Machine Benefits:
- - Mold installation height ii: 450 – 750 mm
- - Max mold weight: 1556 kg
- - Max retraction force: 33 kn
- - Dry cycle stroke: 1. 3 - 322 seconds per mm
- - Nozzle contact force: 25 / 50 kn
- - Nozzle lift-off stroke: 510 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
