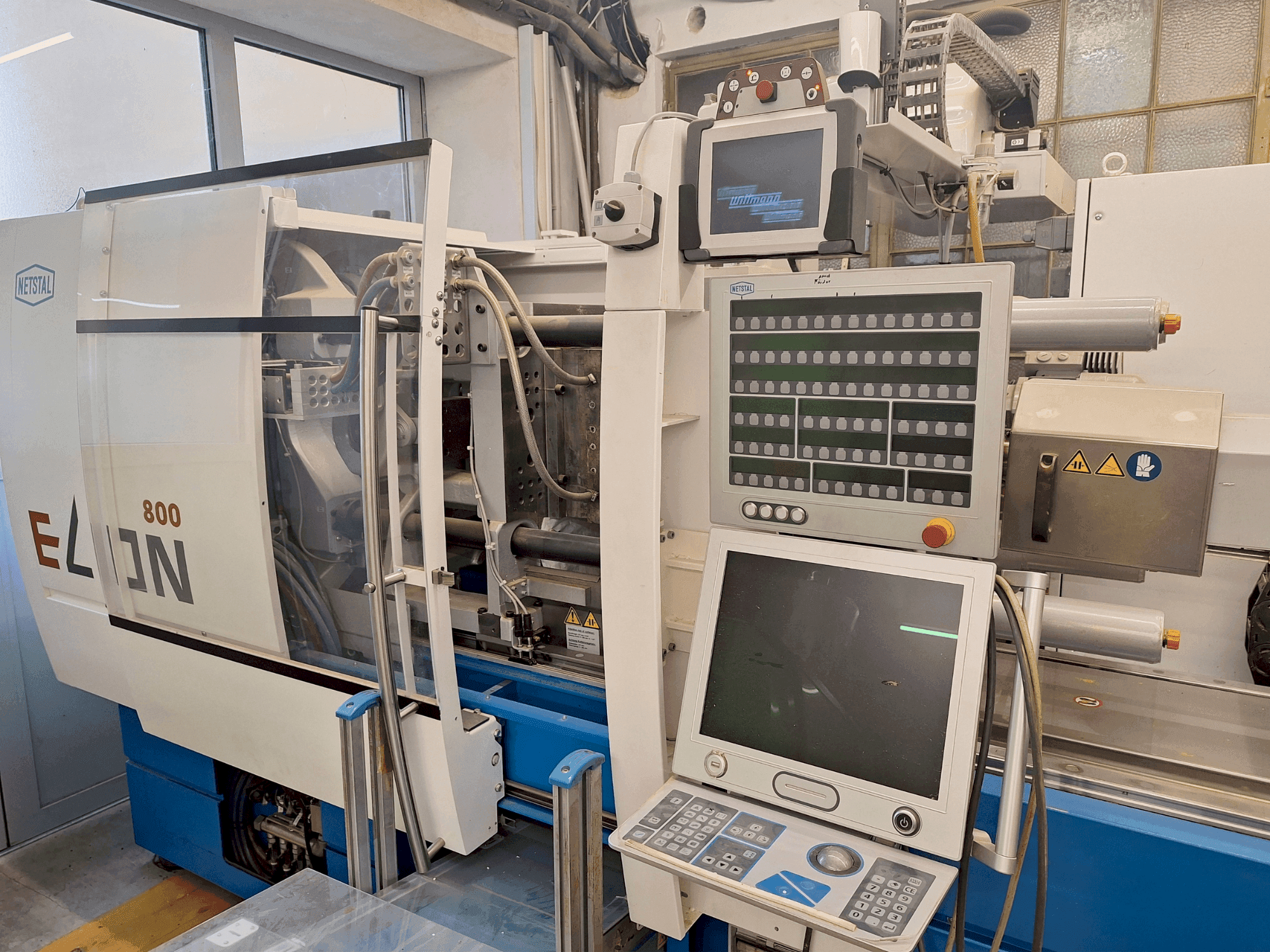

Netstal - Elion 800-270DE-INJ-NET-2021-00001

Additional information

inclusive Wittmann Primus 16T robot

Travel ranges: Z: 1250 mm, Y: 800 mm, X: 590 mm

5 kg payload

Control system: Wittmann CNC8, Primus R8.3 software

R8 Teachbox Touch

Vacuum circuit with additional 5/2-way valve

• Injection Unit: 270 Powermaster with injection speed of up to 450 mm/s

• Screw Diameter: 40 mm, type B, 3-zone screw

• Nozzle Type: Pneumatically controlled needle valve nozzle with additional heating zone

• Minimum Installation Height: 200 mm

• Maximum Installation Height: 500 mm

• Clamping Force: 800 kN

• Minimum Installation Height: 200 mm

• Maximum Installation Height: 500 mm

• Hydraulic Unit: Fully integrated hydraulic unit 9 kW with 140 bar operating pressure

• Pneumatics: 1 Air valve to 890 Liter, 1 additional Air valve to 890 Liter

• Safety Cover Execution: Locked doors, top

• Operator Identification: User recognition via PIN

• EUROMAP 67: Standard + dynamic retraction
  Interfaces: Colour feeder, Freely Configurable DIO: 4x Output/2x Input

• Tool Monitoring: Available on DFP

• Voltage Fluctuation Compensation: UPS present

Extras

Socket box 1:

X2510, Cekon, 16A /400V, 3P-N-PE via HS

X2511, Cekon, 16A /400V, 3P-N-PE via HS

X2512, Cekon, 16A /400V, 3P-N-PE via HS

X2513, Cekon, 16A /400V, 3P-N-PE via socket contactor

(Function 0060)

Sockets for colour dispenser:

1X2507 / 1W7145, Schuko 10A / 230V, 1P-N-PE, via HS

plus 1X9507 / 1W9507, Schuko 10A / 230V, 1P-N-PE, via HS

Mount sockets and base housings on bracket 110.180.6902

(Function 0060)

1X3123, Zone 12 HAN 4A screw-in, power only

1X9123, Zone 12 HAN 4A screw-in, sensor only

(Function 0110)

Pneumatics 1, 1x3/2WV 890L, mounted on DAP, W2008

(Function 0470)

Pneumatics 9, 1x3/2WV 890L, mounted on BAP, W2016

(Function 0470)

Cooling water 1:

X4051 W9088 Flow measurement B1135 - B1138 (return),

Pressure measurement B1211 (flow)

X4060 W9260 HAN16E Temperature measurement

B0801 (flow), B0832 (return)

(Function 0490)

Cooling water 2:

X4050 W9086 Flow measurement B1147 - B1150 (return),

Pressure measurement B1212 (flow)

X4059 W9259 HAN16E Temperature measurement

B08813 (Flow), B0814 (Return)

(Function 0490)

Dosing 1C:

1x suction conveyor and 1x paint dosing

1X2018/1W7146, HAN 4A for paint dosing

1X9191/1W9946, HAN 3A for suction conveyor

mount sockets and base housings on holder 110.180.6902

(Function 0550)
