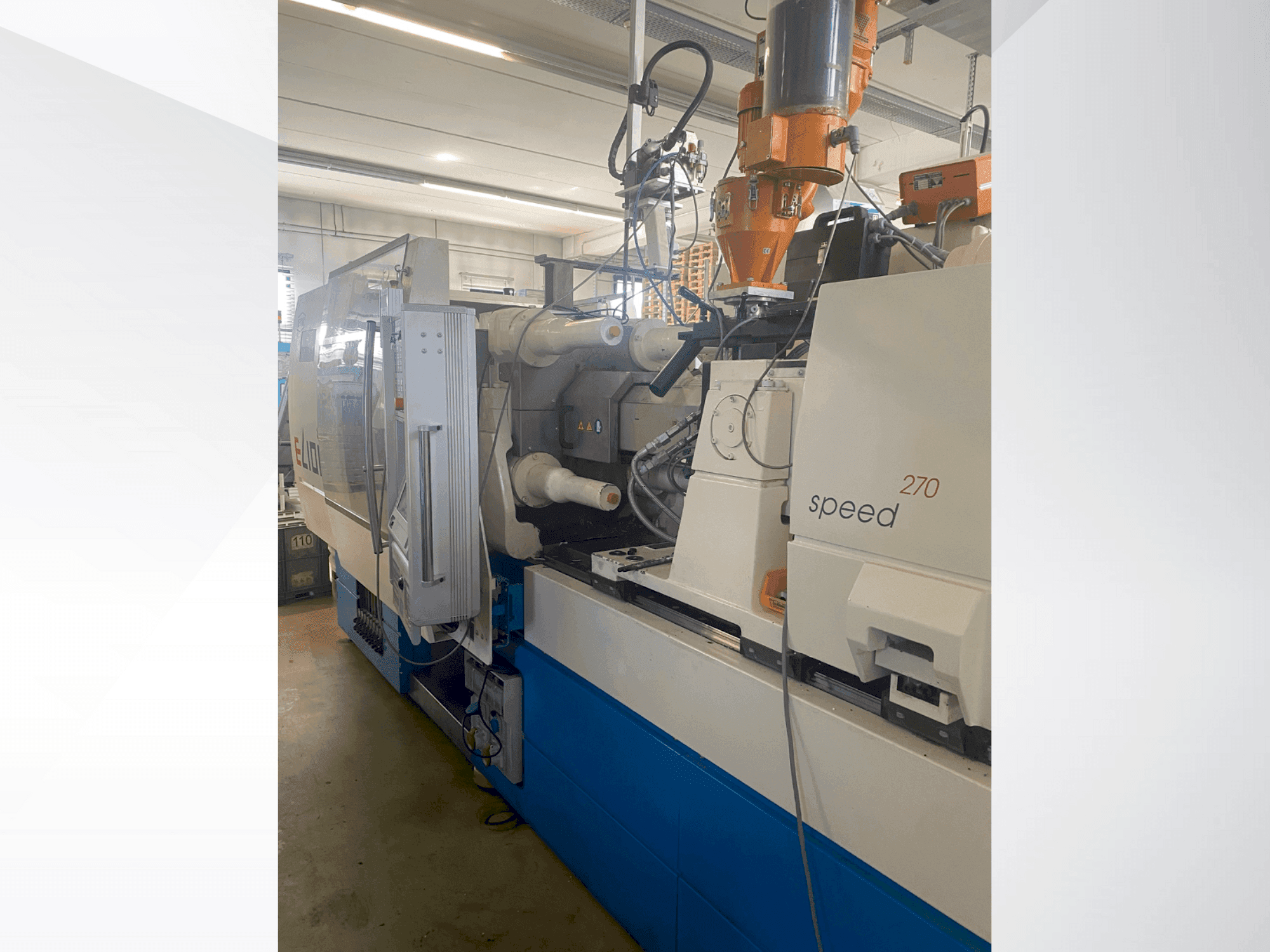

Netstal ELION 800-270 S

Photo Gallery

Netstal - ELION 800-270 SCH-INJ-NET-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Netstal ELION 800-270 S For Sale | gindumac.com

Show in original language

This Netstal ELION 800-270 S was manufactured in 2013. A robust hydraulic injection moulding machine featuring a closing force of 800 KN and a screw diameter of 35 mm. It supports a shot weight of 118.1 gr and an injection speed up to 450 mm/s. Ideal for precision molding with a mould weight capacity up to 1174 kg. Consider the Netstal ELION 800-270 S machine we have for sale. Contact us for further details regarding this injection moulding machine.

Overview

brand: Netstal
year: 2013
MODEL: ELION 800-270 S
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine

Technical Information - Netstal ELION 800-270 S

Technical Specification

Clamping Force: 800 kN
Max. Shot Weight: 118.1 g
Screw Diameter: 35 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Max mold weight: 1174 kg
Max retraction force: 27 kn
Dry cycle stroke: 1. 3 – 287 s – mm
Nozzle contact force: 25 / 50 kn
Nozzle lift-off stroke: 510 mm

Technical Machine Benefits

Max metering stroke: 128 mm
Standard injection flow rate: 240. 5 cm³/s
Power injection flow rate: 433 cm³/s
Max injection speed standard/power: 250 / 450 mm/s
Max screw speed force/speed/master: 400 / 530 / 550 rpm
Max torque force: 480 nm
Max torque speed: 330 nm
Max torque master: 480 nm
Opening force: 800 kn
Mold installation height ii: 400 – 700 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
