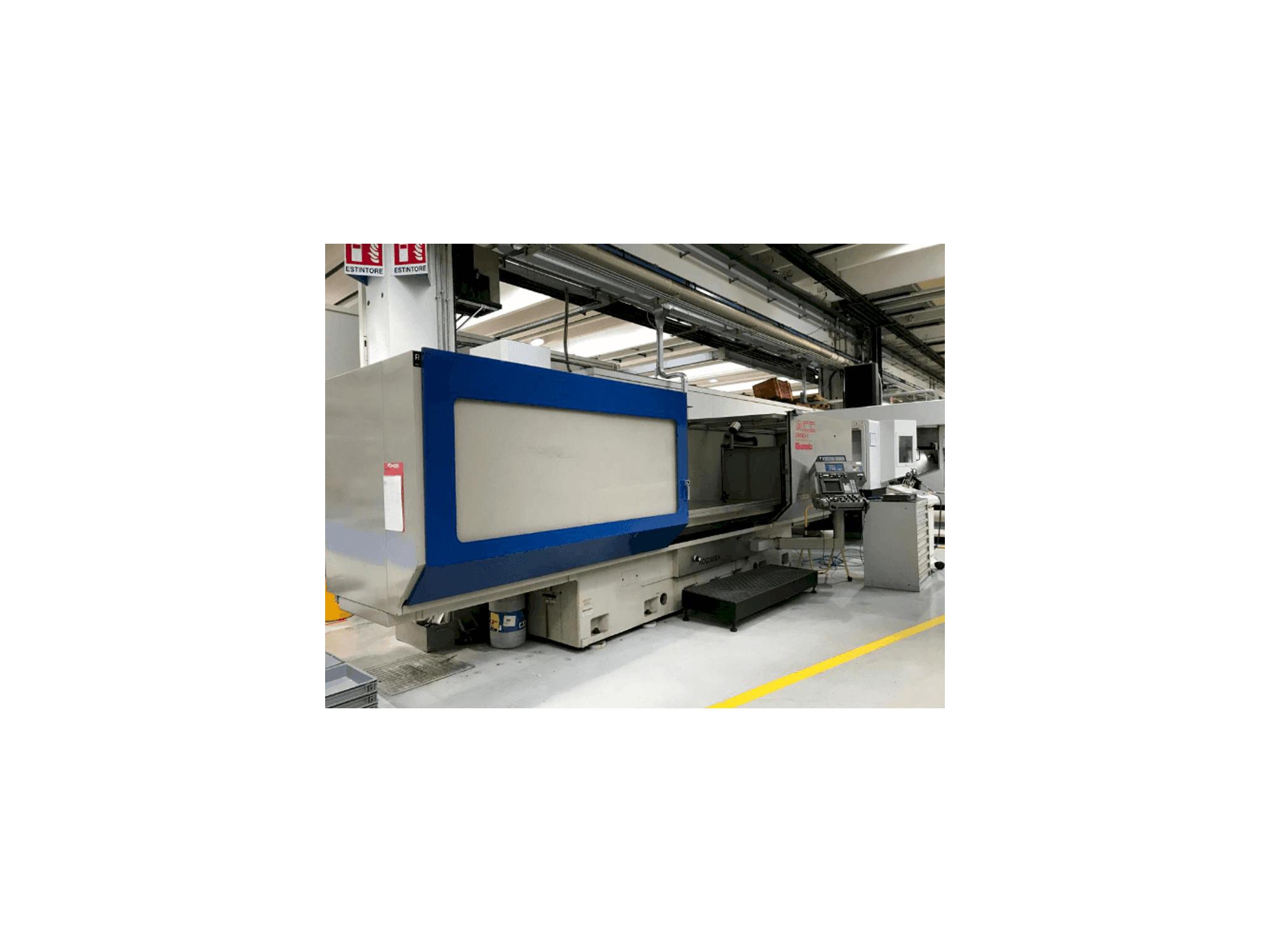

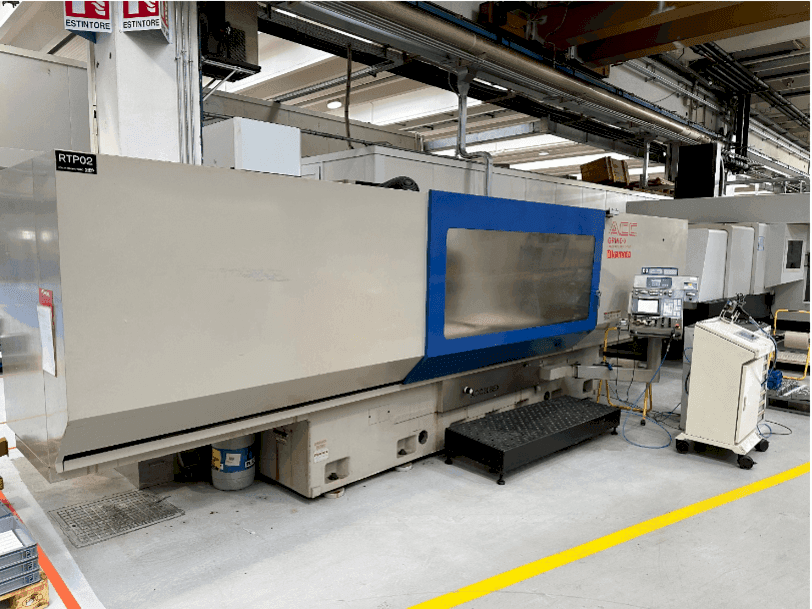

➤ Used OKAMOTO ACC 208ex Grinding machine

Show in original language

This OKAMOTO ACC 208ex Grinding machine was manufactured in the year 2008. The machine has a spindle speed of 1400 rpm.

Overview

brand: OKAMOTO
year: 2008
MODEL: ACC 208ex
application type: Grinding
Location: Italy
machine type: Surface Grinding Machine

Technical Information - OKAMOTO ACC 208ex

General Data

Measurements width: 5900 mm
Measurements depth: 3920 mm
Measurements height: 2550 mm
Machine weight: 11500 kg

Main drive

Spindle speed range: 1400 1/MIN

Table

Outer length: 2000 mm
Outer width: 800 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Hand feed per turn (x1/x10/x50) mm. 0. 1/1/5
Graduations from handwheel (x1/x10/x50) mm. 0. 001/0. 01/0. 05
Intermittent feeding: 0. 5 – 40 mm.
Continuous feeding speed:. 0 – 1000 mm/min
Hand feed per revolution:(x1/x10/x10). 0. 01/0. 1/1 mm
Graduations from handwheel : x1/x10/x10). 0. 0001/0. 001/0. 01 mm
Coarse pass depth. 0-0. 5 (16 steps) mm
Fine pass depth. 0-0. 04 mm (11 steps)
Fine grinding tolerance. 0-0. 05 mm (9 steps)
Feeding with air cutting ((coarse/fine) mm. 0-9999. 9, hydraulic oil pump (for the sharpener) kw 0. 2/4, vertical feeding (ac servomotor) kw 0. 9, transversal feed kw 0. 9, 380/400/415. 3p 50hz, 31kva, grinding holder flange with hole dia. 127 mm.

Technical Machine Benefits

Max distance to the table surface under the wheel 400 mm. 685 mm.
Average weight of the vise: 1152 kg
Load capacity of the table (weight of the vice included): 2000 kg
T-slots (width x n. ) 20x3 mm.
Longitudinal advance
Max stroke 2150 mm.
Longitudinal feed speed m/min. 3 – 30
Max stroke 760 mm.
Automatic advance stroke 760 mm.
Rapid feeding speed: 4000mm/min.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
