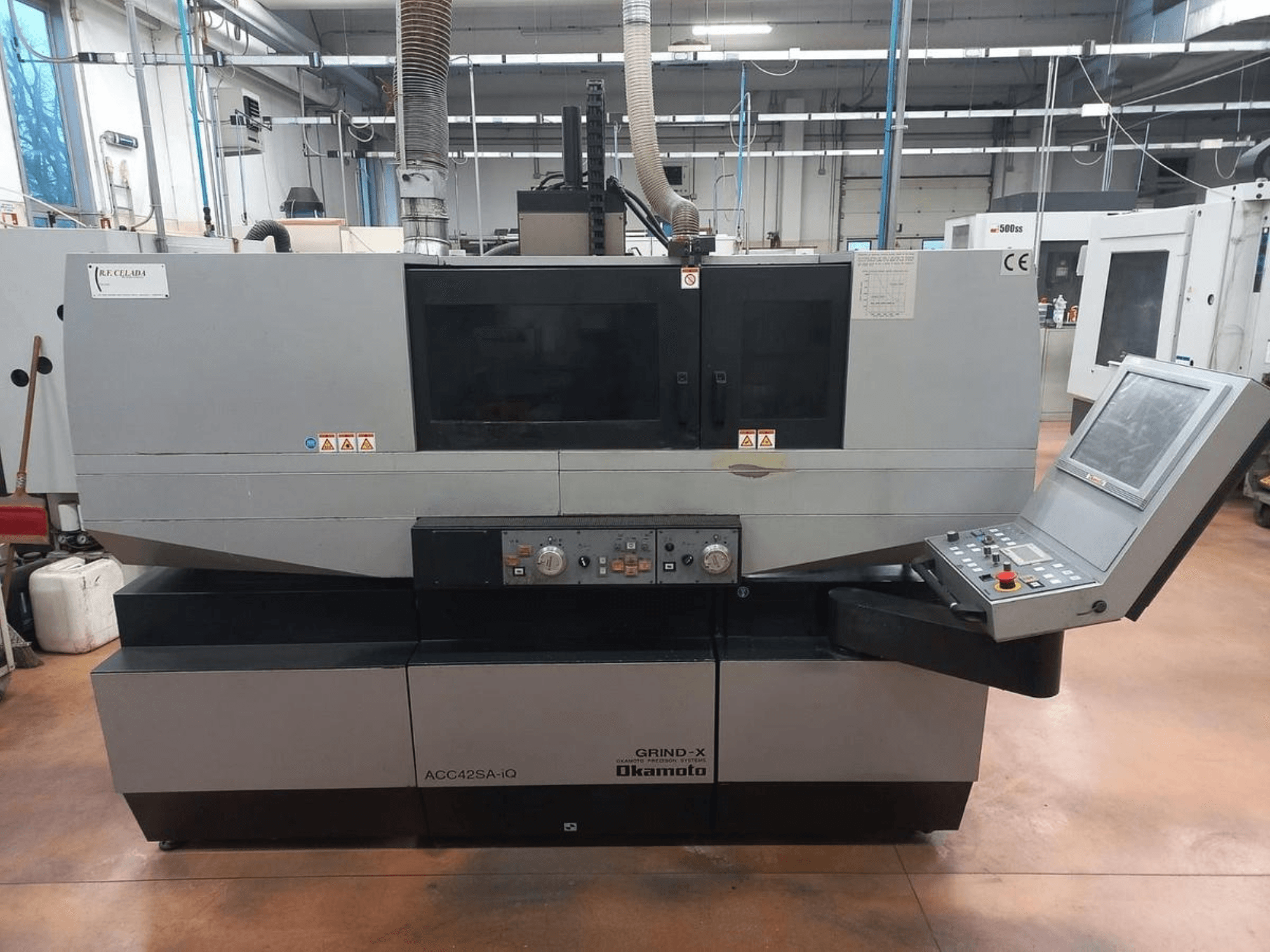

Surface grinding machine manufactured in 2014. This OKAMOTO ACC 42 SA-iQ features a working surface of 450 x 200 mm and a longitudinal stroke of 530 mm. It includes a maximum weight capacity on the table of 120 kg and a standard grinding wheel diameter of 205 mm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC 42 SA-iQ machine we have for sale. Contact us for further details.
Overview
- brand: OKAMOTO
- year: 2014
- MODEL: ACC 42 SA-iQ
- application type: Grinding
- Location: Italy
- machine type: Surface Grinding Machine
- control unit brand:
Technical Information - OKAMOTO ACC 42 SA-iQ
Movement
- Number of Axes: 2
- X-axis Travel: 530 mm
- Y-axis Travel: 230 mm
Additional Information
Working surface: 450 x 200 mm
Magnetic chuck surface: 400 x 200 mm
Longitudinal stroke: 530 mm
Longitudinal feed: 0.1–25 m/min
Cross stroke: 230 mm
Intermittent automatic cross feed: 0.5–20 mm
Continuous automatic cross feed: 0–1000 mm/min
Manual handwheel graduation (cross): 0.0001 / 0.001 / 0.01 mm
Vertical stroke: 357 mm
Rapid vertical feed: 0–1000 mm/min
Manual handwheel graduation (vertical): 0.0001 / 0.001 / 0.05 mm
Automatic increment range: 0.0001–0.03 mm
Distance between spindle axis and table surface: 22–303 mm
Max weight on table (including chuck): 120 kg
Standard grinding wheel diameter: 205 mm
Max peripheral speed: 1000 / 3600 m/min
Spindle motor: 2.2 kW
Hydraulic pump motor: 0.75 kW
Cross feed motor: 0.75 kW
Head elevation motor: 0.75 kW
Net machine weight: 2,090 kg
Floor dimensions: 2,270 x 2,781 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
