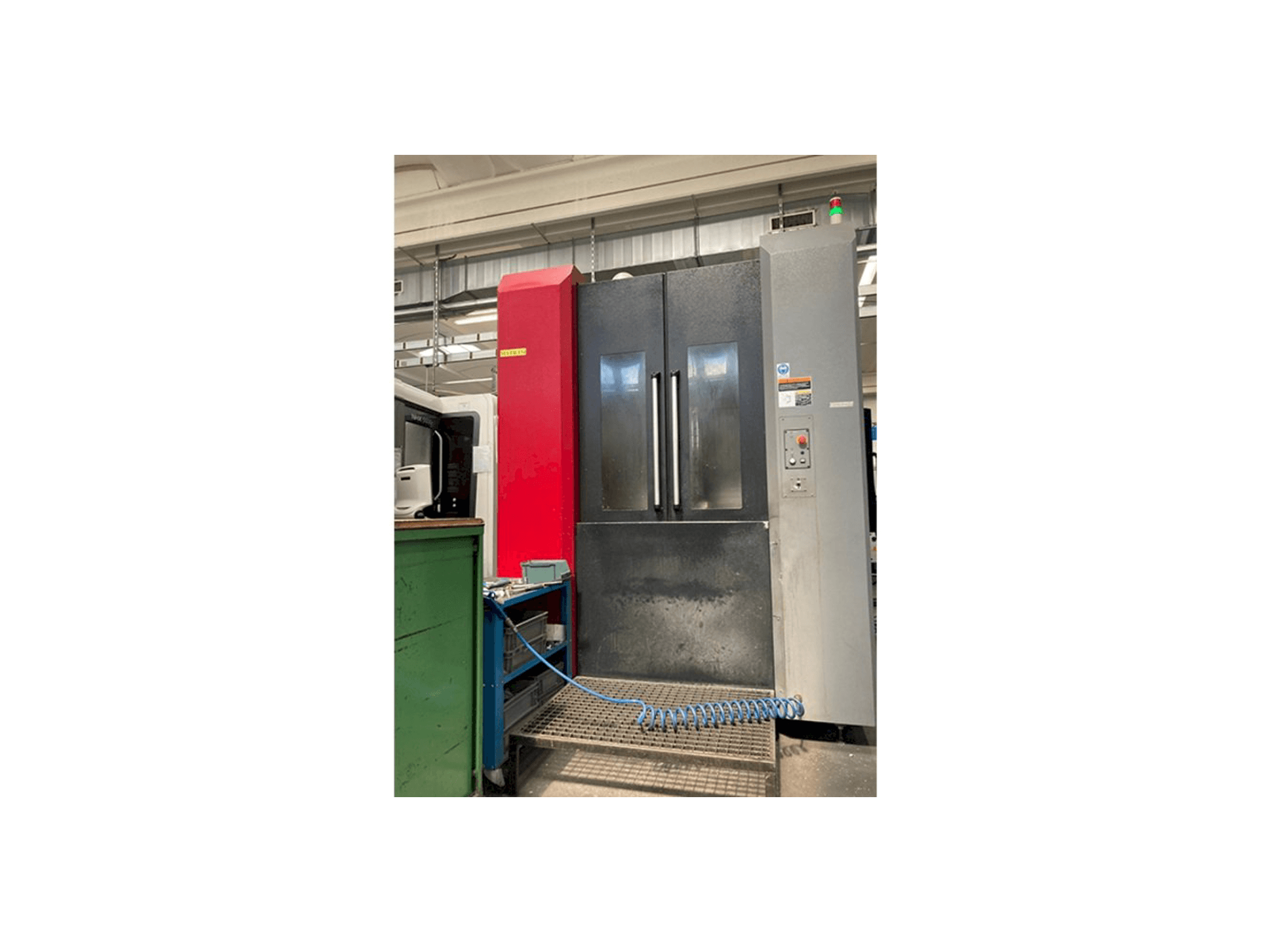

OKK HMC 500 Horizontal Machining Center

Show in original language

This OKK HMC 500 Horizontal Machining Center from 2016 was built in Germany. It counts with 40320 hours of cutting time. It is operated through a Fanuc Series control unit. This 5 axis machine can operate with a spindle speed up to 18000 rpm.

Overview

brand: OKK
year: 2016
MODEL: HMC 500
production hours: 40320
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - OKK HMC 500

Control Unit

Control Brand: FANUC
Control Model: Series

Dimensions

Machine Depth: 4102 mm
Machine Weight: 5280 kg
Table Load: 200 kg

Movement

A-axis Max: 30°
A-axis Min: -110°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 520 mm

Technical Specification

Max. Tool Weight: 7 kg
Number of Tools: 40
Spindle Speed: 18000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle nose to table (min-max) 3. 5 in / 24 in (90 mm / 610 mm)
Table diameter 9. 8 in (248 mm)
Peak spindle motor 47 hp @ 2,800 rpm (35 kw @ 2,800 rpm)
Spindle torque (peak) 88 ft. Lbs (119 nm)
Max programmable feedrate 1575 in/min (40 m/min)
A, c axis max. Rpm 25 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
