Okuma - GENOS L2000-eHU-TUR-OKU-2018-00001

Name: Okuma GENOS L2000-e
Brand: Okuma
SKU: HU-TUR-OKU-2018-00001
Price: 60000 EUR
Availability: InStock

60,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

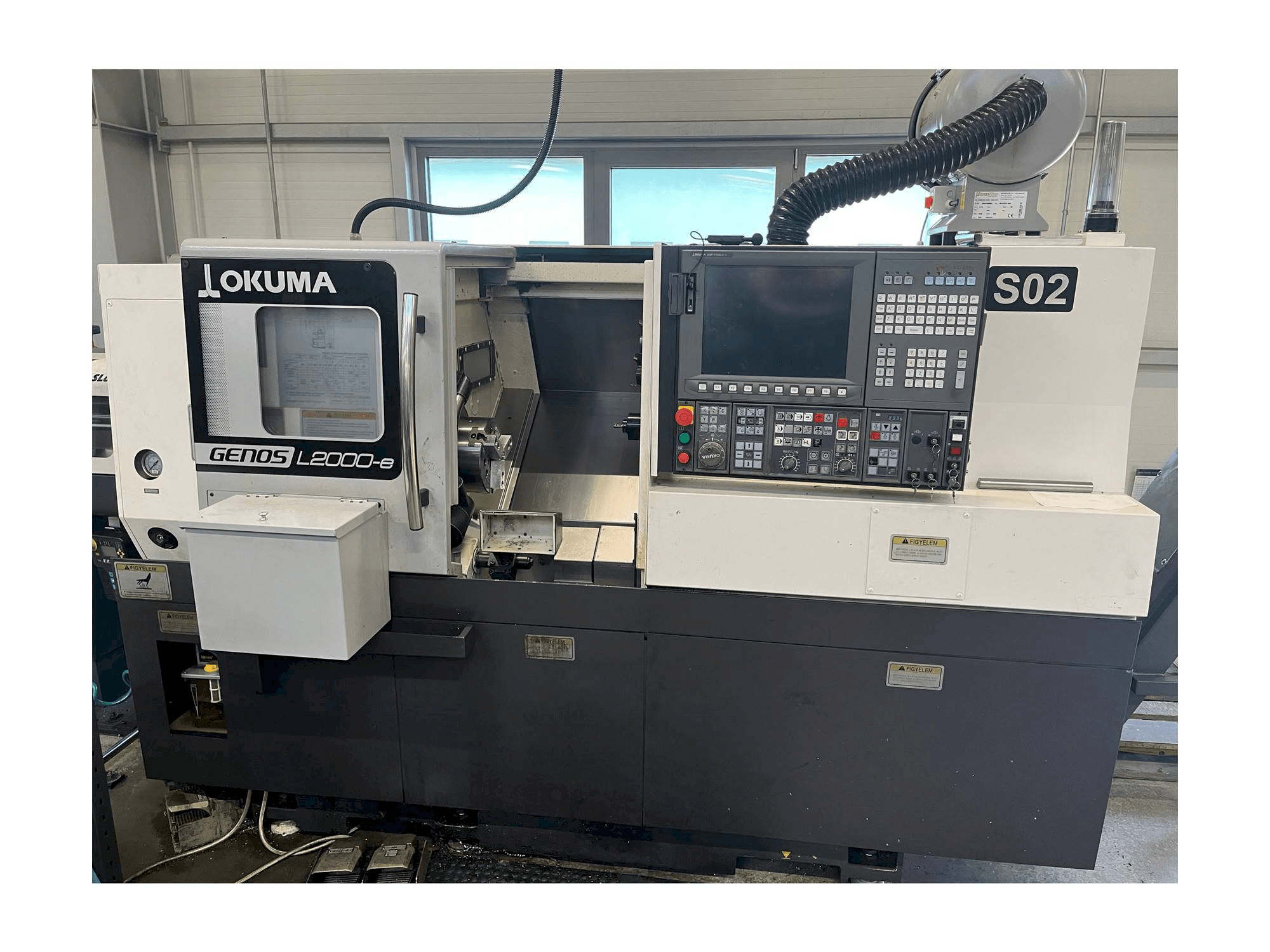

OKUMA GENOS L2000-e Lathe

Show in original language

This OKUMA GENOS L2000-e Lathe was manufactured in the year 2018 in Taiwan. It is equipped with a OKUMA OSP P300L-R control unit. The machine has a spindle speed of 107-4500 rpm.

Overview

brand: Okuma
year: 2018
MODEL: GENOS L2000-e
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: OKUMA

Technical Information - Okuma GENOS L2000-e

General Data

Measurements width: 2081 mm
Measurements depth: 1550 MM
Measurements height: 1569 mm
Machine weight: 3800 kg

Control Unit

Brand: OKUMA
Model: OSP P300L-R

Main drive

Spindle speed range: 107-4500 1/MIN
Spindle bore: 66 mm
Tool taper: JIS A2-6

Movement

X-AXIS Movement: 165 mm
Z-AXIS Movement: 400 mm
C-AXIS Movement: 360º MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar feeder not included in the price
- - Swivel diameter over bed 450 mm
- - Max. Machinable diameter 200 mm
- - Front main spindle bearing diameter 100 mm
- - Turret head type m-v12 (vdi) number of tools 12
- - Tool size 20x20 mm
- - Tool shank diameter ∅32 mm
- - Tool change time 0,1 sec
- - Driven tool speed 60-6. 000 1/min
- - Rapid traverse (x) 20 m/min rapid traverse (z) 25 m/min
Qualitative Machine Benefits:
- - Cone of segment sleeve mt5
- - Segment sleeve displacement 100 mm
- - Main motor power (30 min/process) 11/7,5 kw
- - Driven tool power 4,0/1,8 kw
- - Ce and emc marked〈european standard specification〉

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
