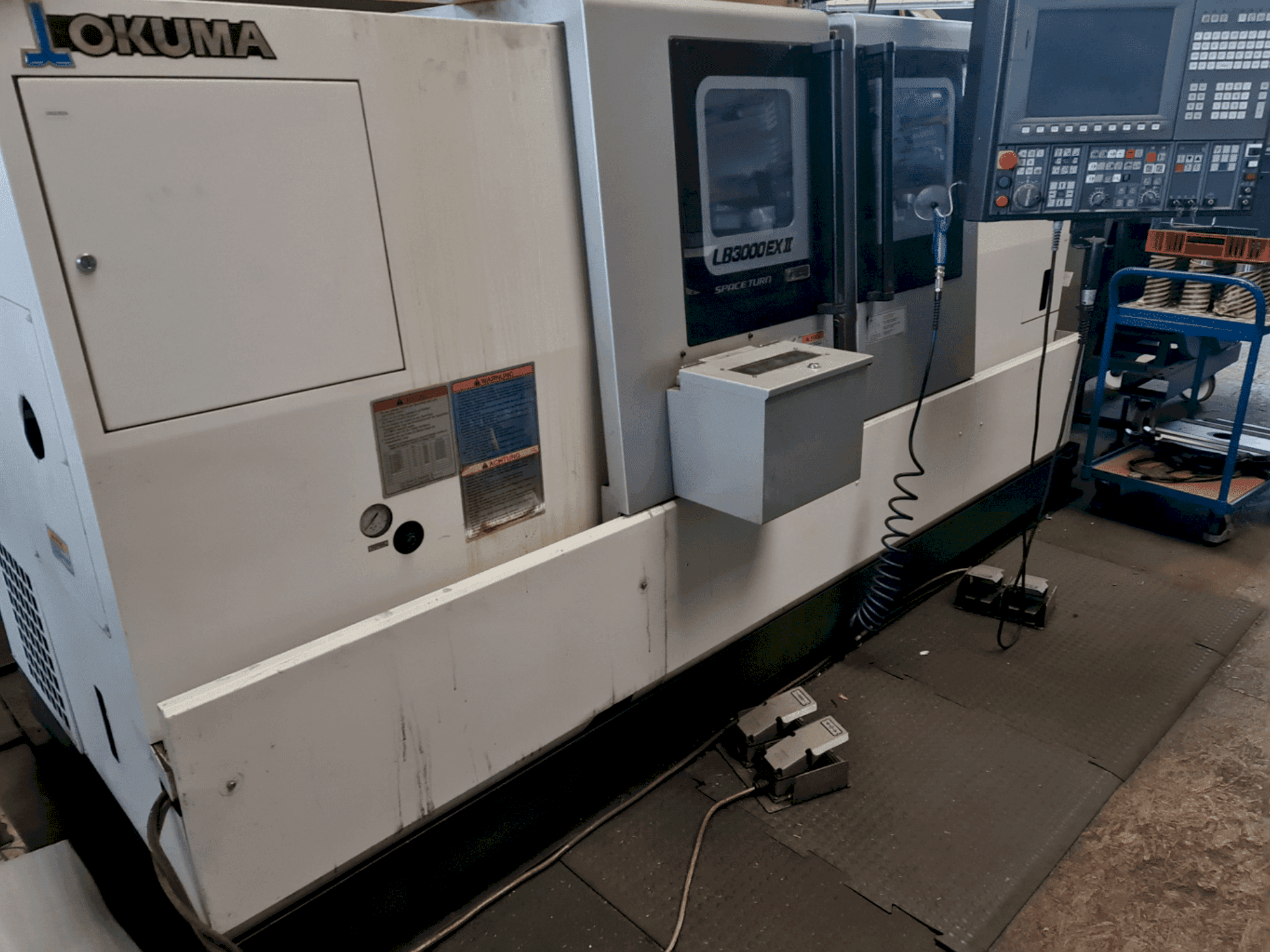

Front view of Okuma LB3000 EX II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma LB3000 EX II

Photo Gallery

Okuma - LB3000 EX IIDE-TUR-OKU-2014-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OKUMA LB300 - 2014 - Lathe For sale | gindumac.com

Show in original language

This 3-Axis OKUMA LB3000 EX II lathe was manufactured in 2014, equipped with an OSP-P300L control unit for precision and efficiency. It features a main spindle with a speed range up to 5000 1/min and a 12-station tool turret. The machine offers a c-axis resolution of 0.001° and a rapid traverse on the NC tailstock of 12 m/min. Additional features include a 3-jaw power chuck and a hinged belt chip conveyor. Reach out for further details regarding this lathe.

Overview

brand: Okuma
year: 2014
MODEL: LB3000 EX II
production hours: 12781
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma LB3000 EX II

General Data

Measurements depth: 1000 mm

Control Unit

Model: OSP-P300L
Brand: OKUMA

Main drive

Spindle speed range: 45-5000 rpm 1/MIN
Spindle bore: 80 mm
Number of axis: 3

Workpiece

Workpiece drm over bed: 250 mm
Workpiece weight: 5.8 kg

Turret

Number of turrets: 1

Tools

Number of stations: 12

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

hollow clamping cylinder diameter 70mm; 47 kN
3-jaw power chuck: bore diameter 75mm, outside diameter 275mm, max. speed 4200 1/min, confirmation force 43 kN, incl. base jaws and t-nuts
Hinged belt chip conveyor: discharge height approx. 1200mm, chip discharge to the right, without chip cart, bed length 1000mm
submersible pump with motor
reinforced coolant pump
Interface bar feeder magazine
workpiece catcher for parts up to a diameter of 80 x 150 mm

Machine Benefits

Technical Machine Benefits

Ø 250 x 1000mm
Front bearing diameter 120mm
40. 4 nm
C-axis with 0. 001° resolution
Nc tailstock rapid traverse 12 m/min; 5 kn
Square cross holder; chisel cross-section 25 x 25 mm left long
Square cross holder; chisel cross section 25 x 25 mm left short
Automatic bar gripper

Extra Information

Main spindle details, c-axis resolution, spindle time, NC running time. Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
