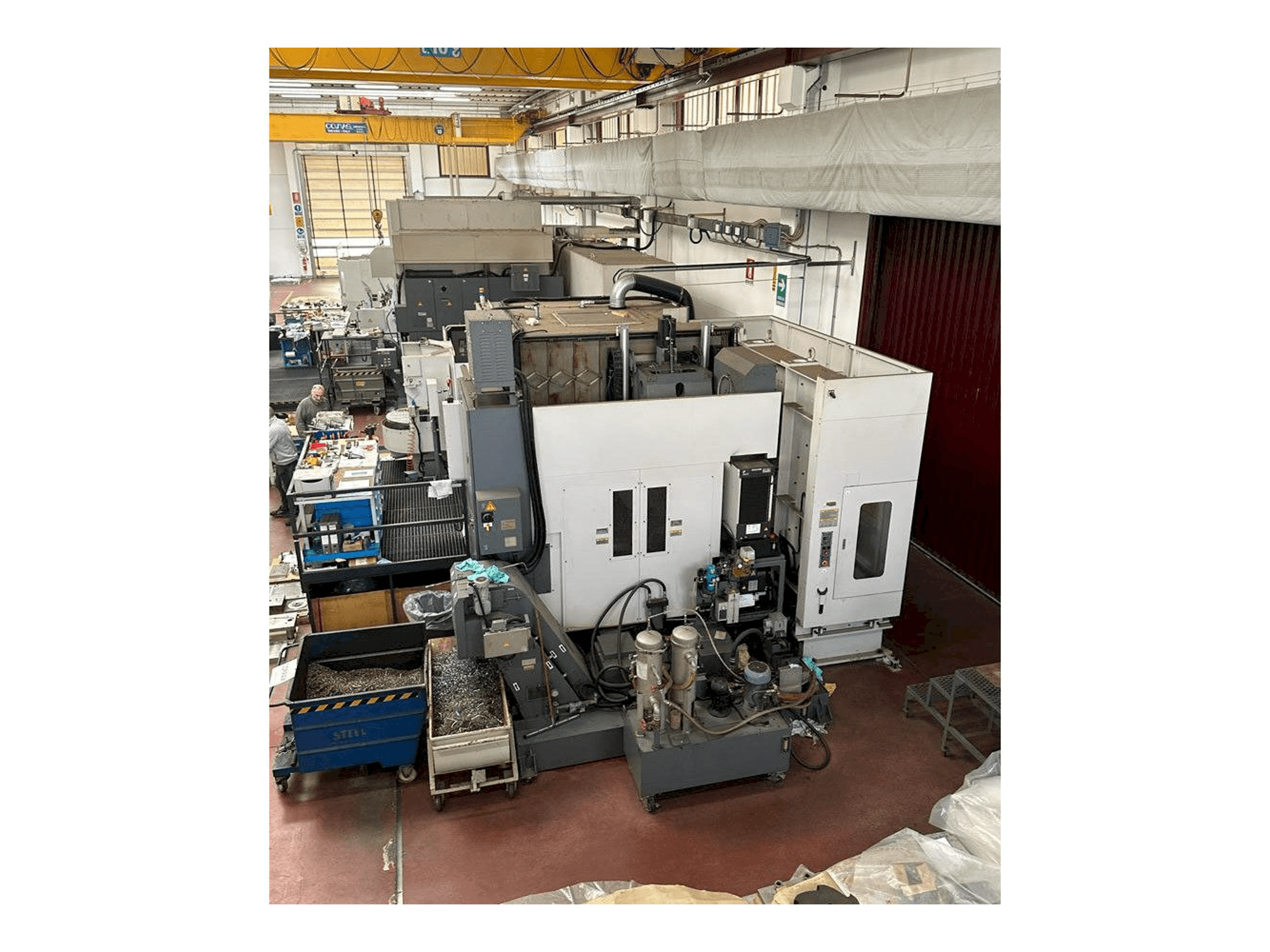

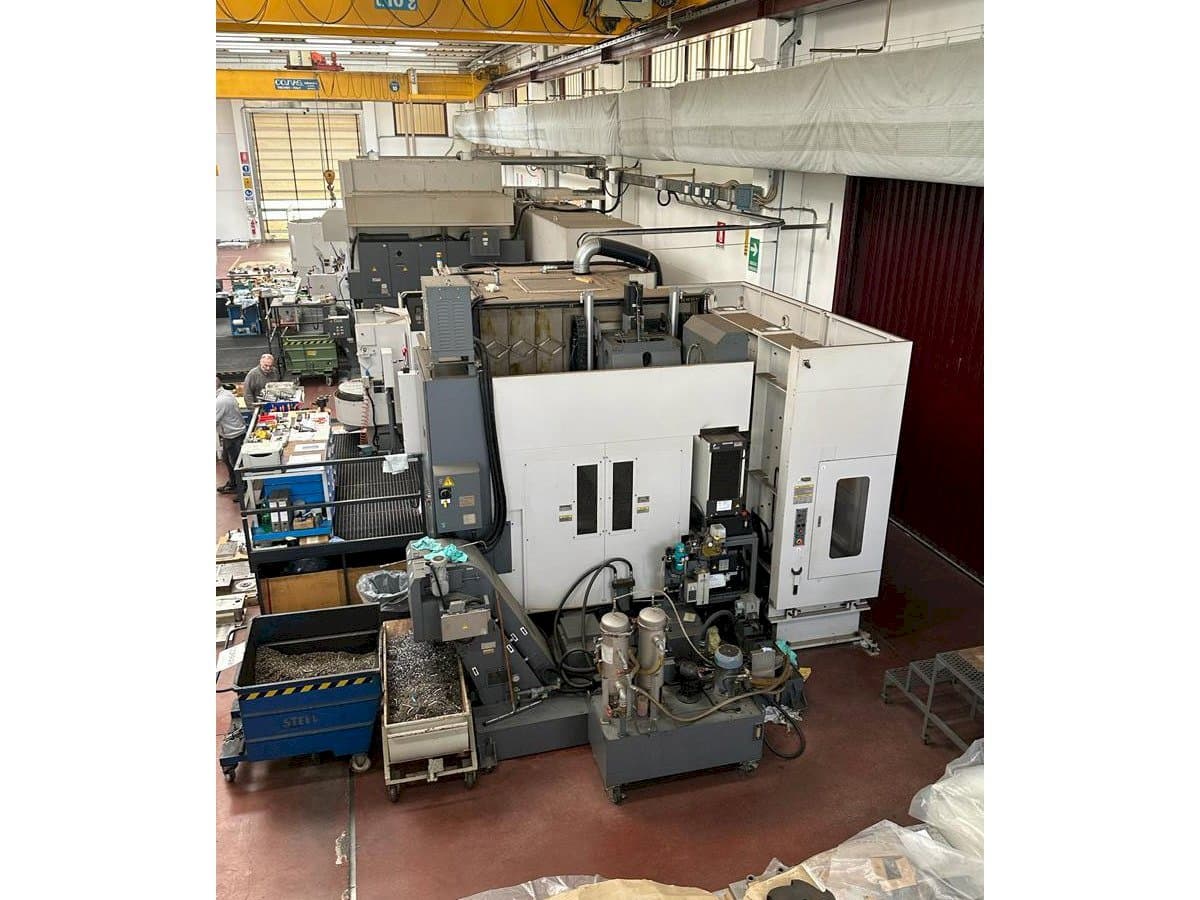

Okuma MILLAC 800VH

Machine Benefits

• Technical Machine Benefits:
  • - Automatic palletization at 6 positions including 4 additional pallets
  • - Tool magazine with 120 positions
  • - Optical scales on linear axes x, y, z in addition to the std encoders.
  • - Circular optical scale on spindle tilting head axis with 0. 001 g.
  • - Resolution with tilting locking by means of brake
  • - Circular optical scale on rotary table c axis
  • - Resolution 0. 001 g. With continuous locking by brake
  • - Measuring probe taken from tool changer for resetting/checking the workpiece including macro b on the cnc
  • - Air blow for chips cleaning both around the spindle and for cleaning the cone flange bt 50
  • - Laser probe for checking blum/laser diameter and tool length with pneumatic system for cleaning laser beam lenses
• Qualitative Machine Benefits:
  • - Lubrication system through the spindle center at 70 bar 13/18 lt. /min. (6. 9 mpa) with in-line centrifugal filter
  • - Air/coolant blow through selectable spindle
  • - Shower washing system
