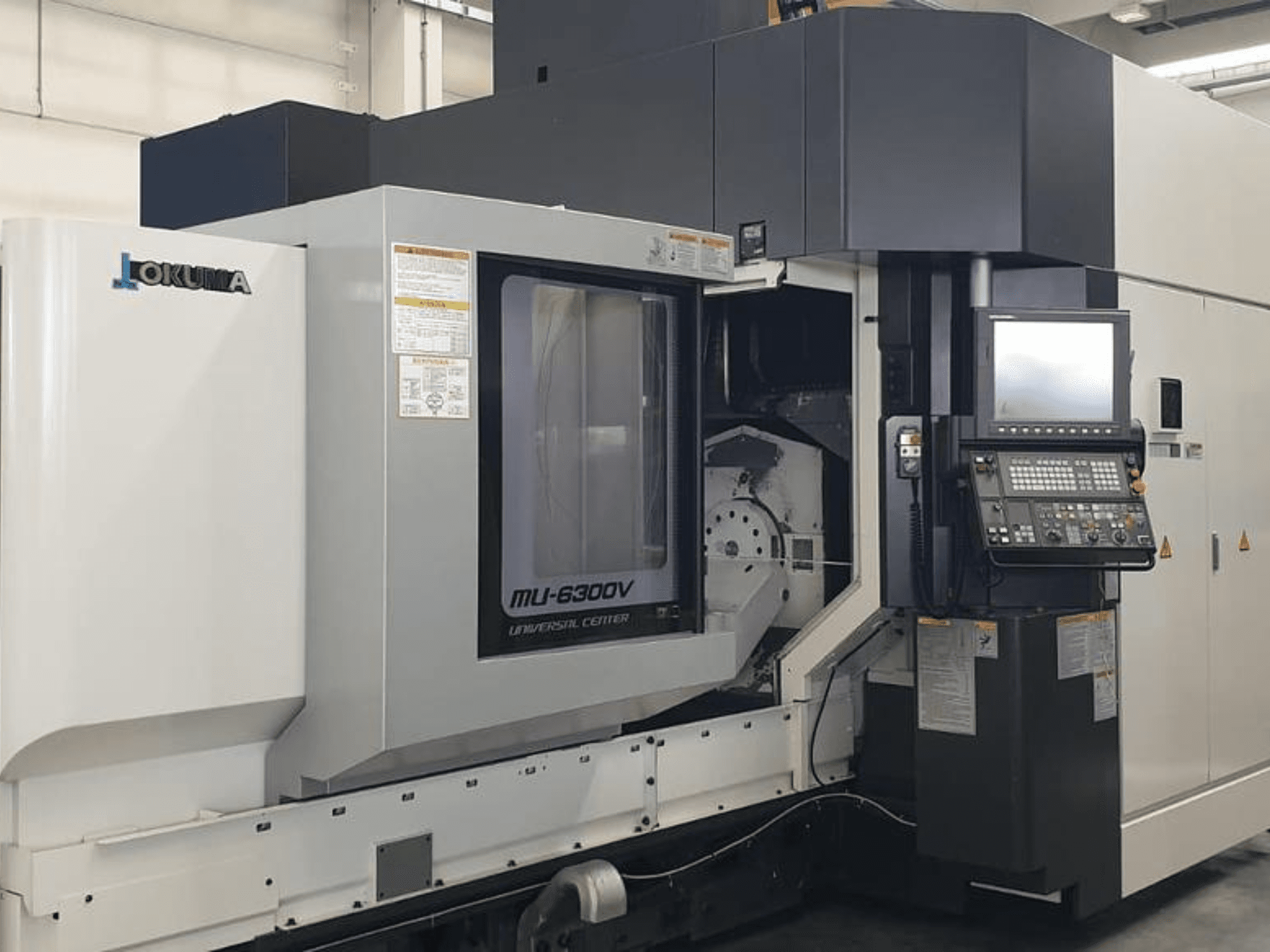

Okuma MU 6300 V Vertical Machining Centre, front view showcasing control panel and machining area details.
Okuma MU 6300 V Vertical Machining Centre, front view showcasing control panel and machining area details.

Okuma - MU 6300 VIT-MIL-OKU-2016-00003

55,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Okuma MU 6300 V was manufactured in 2016. It features impressive X-axis travel of 925 mm, Y-axis travel of 1,050 mm, and Z-axis travel of 600 mm. The machine has a maximum load capacity of 600 kg and a C-axis table diameter of 630 mm. If you are looking to get high-quality machining capabilities, consider the Okuma MU 6300 V vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Okuma
  • year: 2016
  • MODEL: MU 6300 V
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Okuma MU 6300 V

Dimensions

  • Table Load: 600 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 925 mm
  • Y-axis Travel: 1050 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Spindle Power: 26 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 50

Additional Information

  • Table/C-axis diameter: 630 mm

  • Max machinable dimensions: Ø 830 x 550 mm

  • C-axis rotation: 360,000 positions / 360° continuous

  • A-axis rotation: +90° to -120°

  • Table–spindle distance: 60 – 660 mm

  • Rapid feed (X/Y/Z): 50 m/min

  • Max working feed: 50,000 mm/min

  • Positioning accuracy (X/Y/Z): 0.004 mm (Std JIS)

  • Repeatability (X/Y/Z): 0.0015/100 mm (Std JIS)

  • Spindle taper: BT50 Big Plus

  • Tool magazine: Matrix, 98 positions (expandable to 166)

  • Axis feedback: X–Y–Z optical scales

  • Operational hours: Power on 25,683 h; Operating 10,364 h; Cutting 9,209 h

  • Included control/software options: 5-axis continuous Super-NURBS kit, Center tool programming, Tool length compensation, DNC-DT connection, Tool orientation command

Additional equipment

  • Mayfran MT10 chip conveyor

  • Renishaw TS27R tool setter

  • Renishaw RMP60 workpiece probe

  • 5-axis calibration kit

  • Shower wash

  • Pallet changer ready (preparation)

  • Industry 4.0 kit (registered 2026)


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
