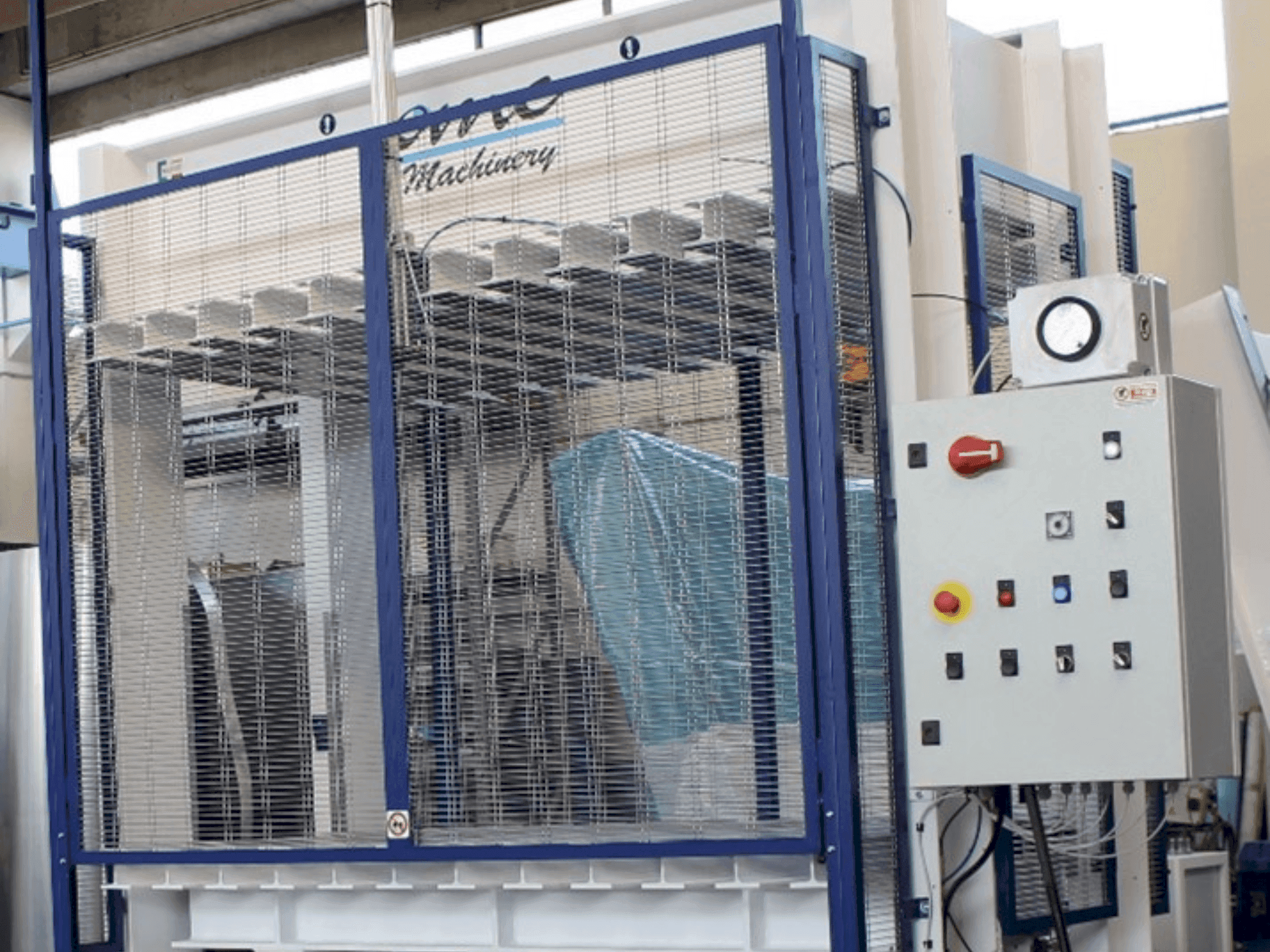

This OMC PPC/e was manufactured in 2022. It features a robust steel structure with a rack and pinion guide system ensuring parallel plate movement. The hydraulic system includes a noise-reducing two-stage power unit and multiple safety valves. Equipped with a basic electrical control module, it offers manual and automatic plate opening options. Consider the opportunity to buy this OMC PPC/e. Contact us for more information about this machine.
Overview
- brand: OMC
- year: 2022
- MODEL: PPC/e
- application type: Other Woodworking Machinery
- Location: Italy
- machine type: Other (Wood)
Technical Information - OMC PPC/e
Main drive
- Pressing force: 120 tons KN
- Stroke: 650 mm
Additional Information
- Technical Machine Benefits:
- - Plate size: 2000 x 1400 mm
- - Press cylinders: 6 x Ø 85 mm
- - Opening size: 1200 mm
- - Stroke type: drive plate bottom (from bottom to top)
- - Specific pressure: 4. 28 kg/cm²
- - Connection: 400 v, 50 hz, 3 ph
- - Control Unit Control Panel: Basic equipment with electrical control module, double button, adjustable pressure gauge with pressure recovery Automatic Opening: Automatic opening with timer Protection Device Safety Features: Emergency call button Two-hand operation Manually closing guillotine guard at the front Metal protective grilles on the sides Aluminum foil connected to the generator CE Standard Compliance Press Structure Material: Assembled and welded steel structure for both fixed and moving platen Guide System: Rack and pinion guide system ensuring parallel movement during closing/opening Hydraulic System Components: Two-stage power unit with a pump for noise reduction and lubrication High flow rate pump for fast closing/opening and low flow rate press pump for high pressure Electric motor Control/Safety Valves: Maximum pressure valve Pressure retention valve (check valve) Low drain pressure valve (pre-drain valve) Oil drain magnetic valve Control Panel and Electrical System Features: Pressure gauge for setting working pressure with automatic pressure equalization system General on/off switch Automatic opening timer with switch for automatic/manual plate opening after work cycle
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
