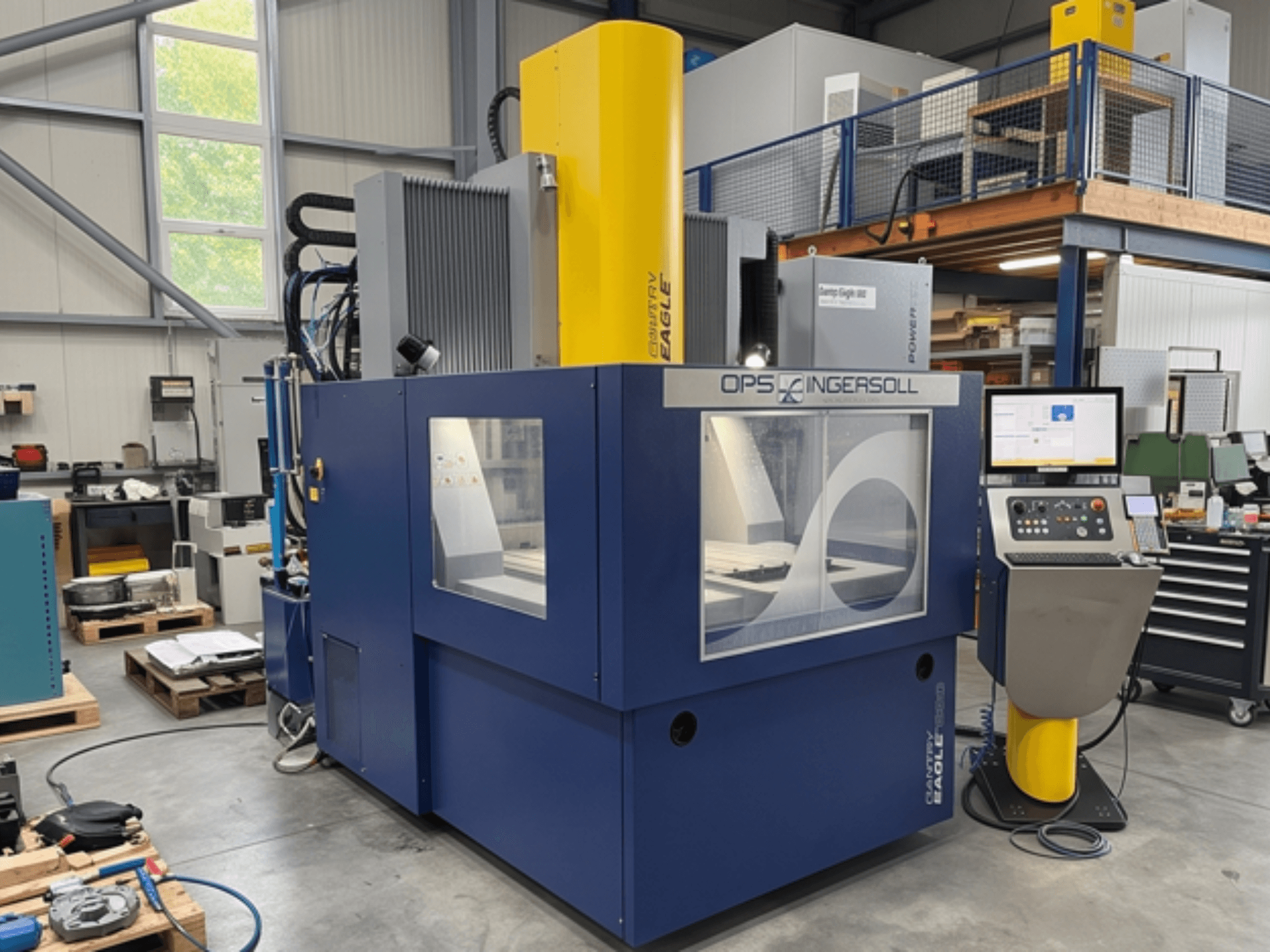

OPS INGERSOLL - Gantry Eagle 1200 PlusDE-EDM-OPS-2014-00001

- Control system: Eagle Powertec PC/NC Steuerung 3060 (22" Touchscreen display, Multiprog Powertec technology programming, Powertec 2 Easy Burn fast programming, Powertec Handheld, Ethernet and USB interfaces, MultiControl light remote maintenance)

- Fine finishing generator: Eagle Powertec PT60

- Z-axis speed: Eagle Power Jump with 18 m/min interval speed in Z-axis

- Travel X / Y / Z: 880 x 1360 x 700 mm

- Distance table / chuck min./max.: 440 / 1140 mm

- Worktable dimensions: 1110 x 1610 mm (table clamping surface recessed 50 mm compared to standard)

- Dielectric height: 960 mm (Option: 1000 mm)

- Special telescopic working tank (W x L x H): 1140 x 1640 x 1040 mm

- Max. head load: 300 kg

- Additional dielectric fluid capacity: 2000 l (Total 4800 l with extra tank and connecting hoses)

- Electrode changer: EW30 (30-fold) / 13-fold base unit

- Measuring system: Linear measuring system in X and Y-axis (already included in Z-axis)

- Electrode clamping system: Hirschmann H5000 / Minifix (H8.11.20)

- Energy saving function: ECOTEC

- Flushing: Programmable pressure flushing, manual suction connection

- Filter system: 32 m² paper candle filter

- Cooling: Compressor re-cooling unit

- Main voltage: 400 V3~ / 50Hz

- Control voltage: 24 VDC

- Max. fuse: 32 A

- Power consumption: 20 kVA

- Total weight: approx. 12,500 kg (Machine base: 10,000 kg, Gantry/Portal: 2,500 kg, Extra tank: 1,100 kg)

- Additional features: C-axis without chuck, CO2 fire extinguishing system, T-slot plate for large electrode mounting, machine shoes, preparation for external erosion mist extraction nozzle, fire damper, structural paint finish in Cobalt Blue (RAL5013), Telegrey (RAL7045), and Rape Yellow (RAL1021)
