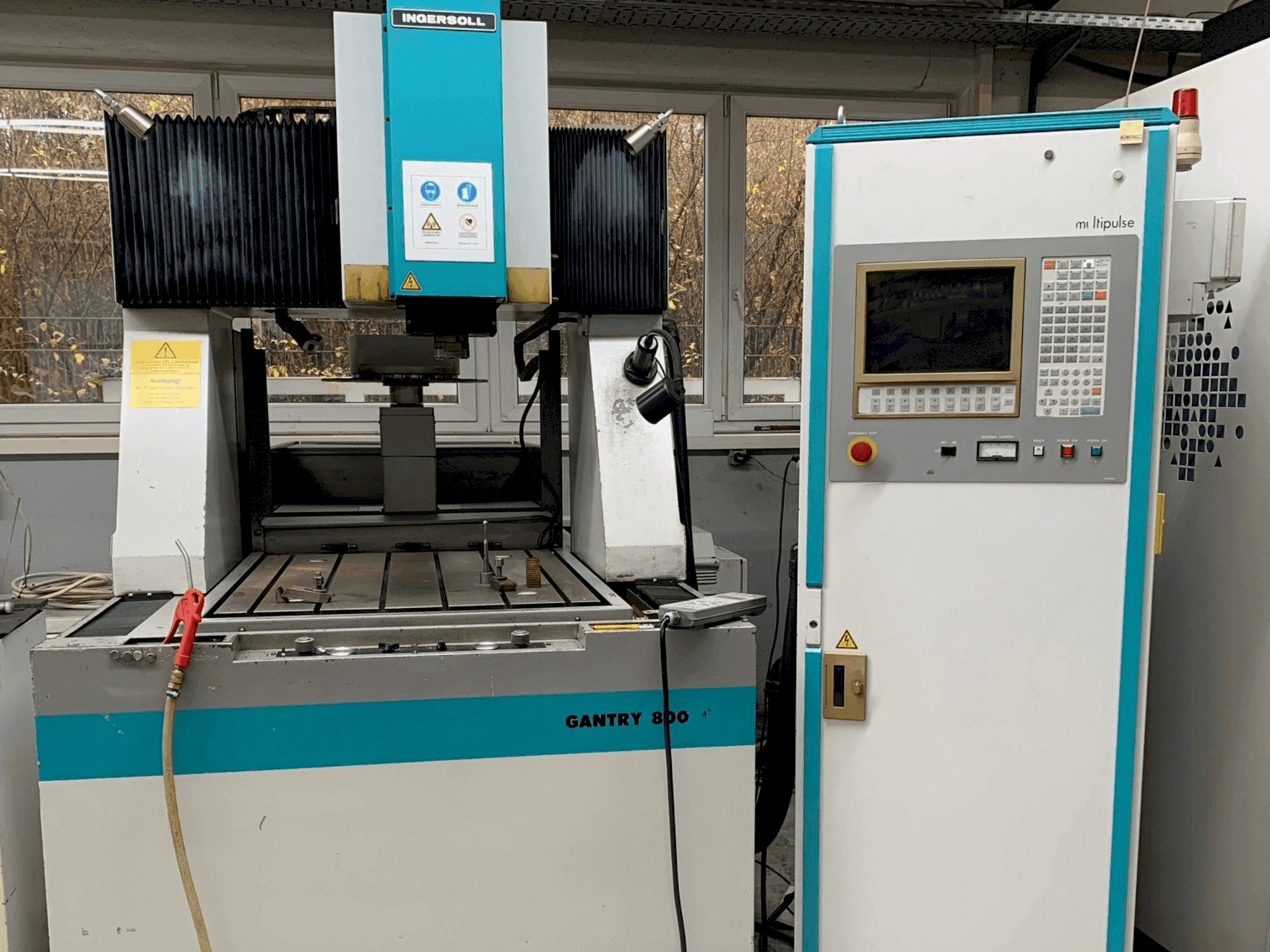

This 4-axis OPS INGERSOLL Ingersoll Gantry 800 die-sinking EDM machine was manufactured in 1998. It features a robust 5600kg frame, a worktable supporting up to 2000kg, and travels of 550x850x450mm within the work container. The integrated C-axis offers a speed of 1-20 min-1 with a load capacity of 50/15kg. If you are looking to get high-quality die-sinking capabilities, consider the OPS INGERSOLL Ingersoll Gantry 800 machine we have for sale. Contact us for more information.
Overview
- brand: OPS INGERSOLL
- year: 1998
- MODEL: Ingersoll Gantry 800
- application type: EDM
- Location: Germany
- machine type: Die-Sinking EDM Machine
- availability: Immediately
Technical Information - OPS INGERSOLL Ingersoll Gantry 800
General Data
- Measurements width: 2650 mm
- Measurements depth: 2400 mm
- Measurements height: 2680 mm
- Machine weight: 5600 kg
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 850 mm
- Z-AXIS Movement: 450 mm
Table
- Table load: 2000 kg
Additional Equipment
- - Training Folder
- - Operating Instructions
- - Machine Documentation
- - Programming Instructions
- - Recooling System
- - Diskette for the Software
- - 20 Holders Equipped with the REF System
- - 2 Holders with Collets
- - Push Button
Additional Information
- Technical Machine Benefits:
- - Connected load: 12 kva
- - Fuse protection: 25 a
- - Control unit system: cnc dialog 32bit cnc // control unit drive type: digital ac servo motors
- - Control unit travel speed max. (x, y, z): 2000 mm/min
- - Y travel for electrode change and loading position: 1180 mm
- - Working tank internal dimensions: 800x1100x480 mm
- - Electric height programmable/automatic max: 450 mm
- - Support surface: 760x1000 mm
- - Max. Distance between tool carrier plate and worktable: 585 mm
- - Electrode weight permissible: single electrode 15 kg / changer total load 60 kg
- - Machine History NC Working: 1284 hours Program 2 Works: 540 hours In Progress 3: 500 hours
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
