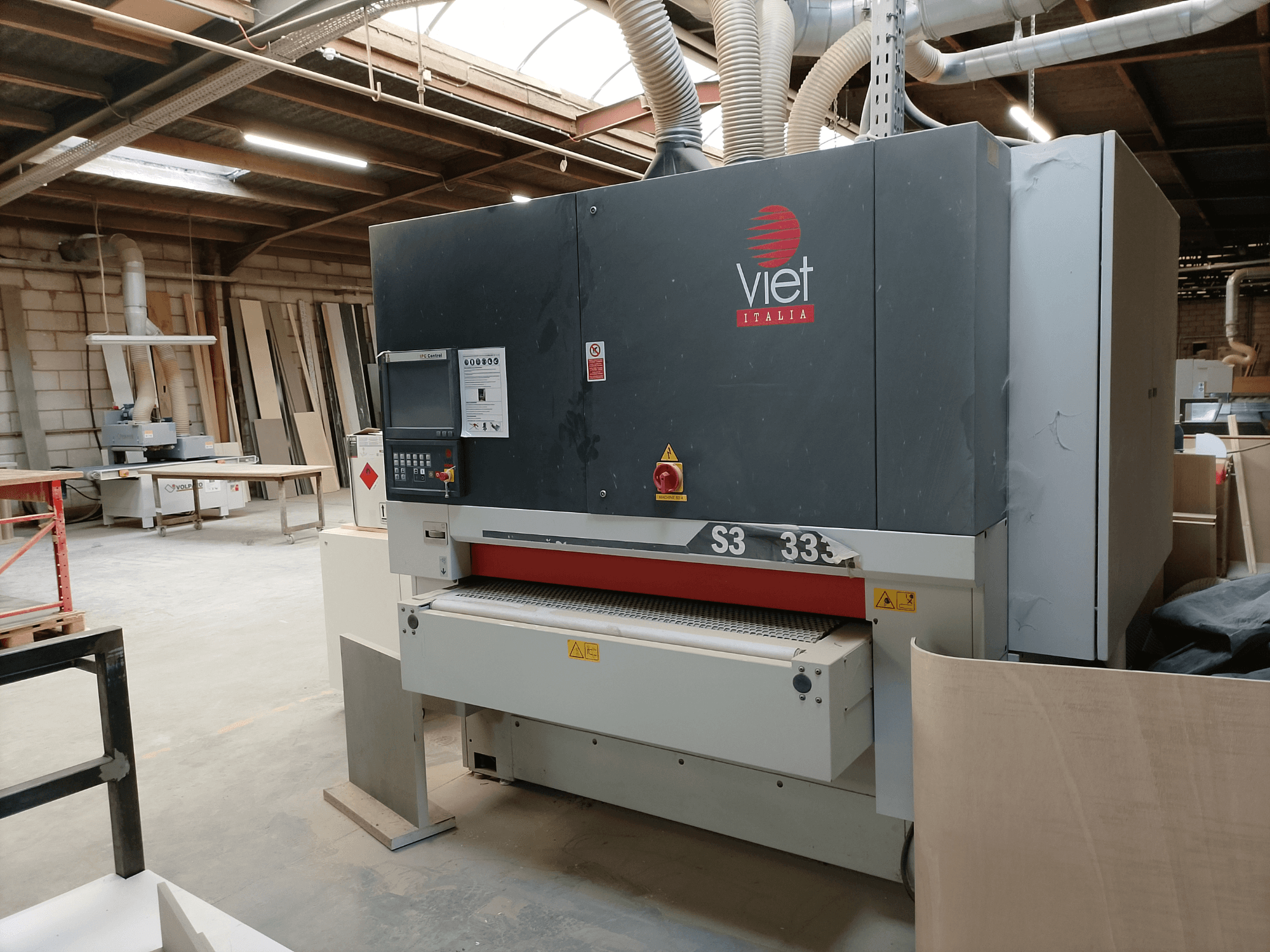

- ➤ Used Other S3 333 - Belt Sander For Sale | gindumac.com
Belt sander manufactured in 2010. This Other S3 333 features a working width of 1350 mm and accommodates workpiece thickness from 3 to 160 mm. It includes three sanding units with powerful 4 kW motors and a conveyor group speed of 3-16 m/min. If you are looking to get high-quality sanding capabilities, consider the Other S3 333 belt sander we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 2010
- MODEL: S3 333
- application type: Sanding
- Location: Belgium
- machine type: Belt Sander
Technical Information - Other S3 333
Technical Specification
- Working Width: 1350 mm
Additional Information
1st Sanding Unit (Composition): Spinbrush
1st Sanding Unit (Motorization): INV 4 kW
2nd Sanding Unit (Composition): Brush
2nd Sanding Unit (Motorization): INV 4 kW
3rd Sanding Unit (Composition): Brush
3rd Sanding Unit (Motorization): INV 4 kW
Conveyor Group: 3–16 m/min
Conveyor Group (Motorization): INV 3 kW
Adjustment/Rise (Motorization): MTR 0.37 kW
Vacuum Pump (Motorization): MT 4 kW
Mass: 4170 kg
Workpiece Thickness: 3–160 mm
Operating Voltage: 3 AC - 400 V
Frequency: 50 Hz
Current Draw: 48.9 A
Motor with Max Current Draw: 8 A
Minimum Compressed Air Pressure: 6 - 86 bar-Psi
Maximum Compressed Air Pressure: 8 - 116 bar-Psi
Compressed Air Consumption: 1441 Nl/min
Minimum Suction Flow Speed: 25 m/s
Minimum Suction Capacity: 6190 m³/h
Noise Level (Idle): 75 dB(A)
Noise Level (Operating): 76 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
