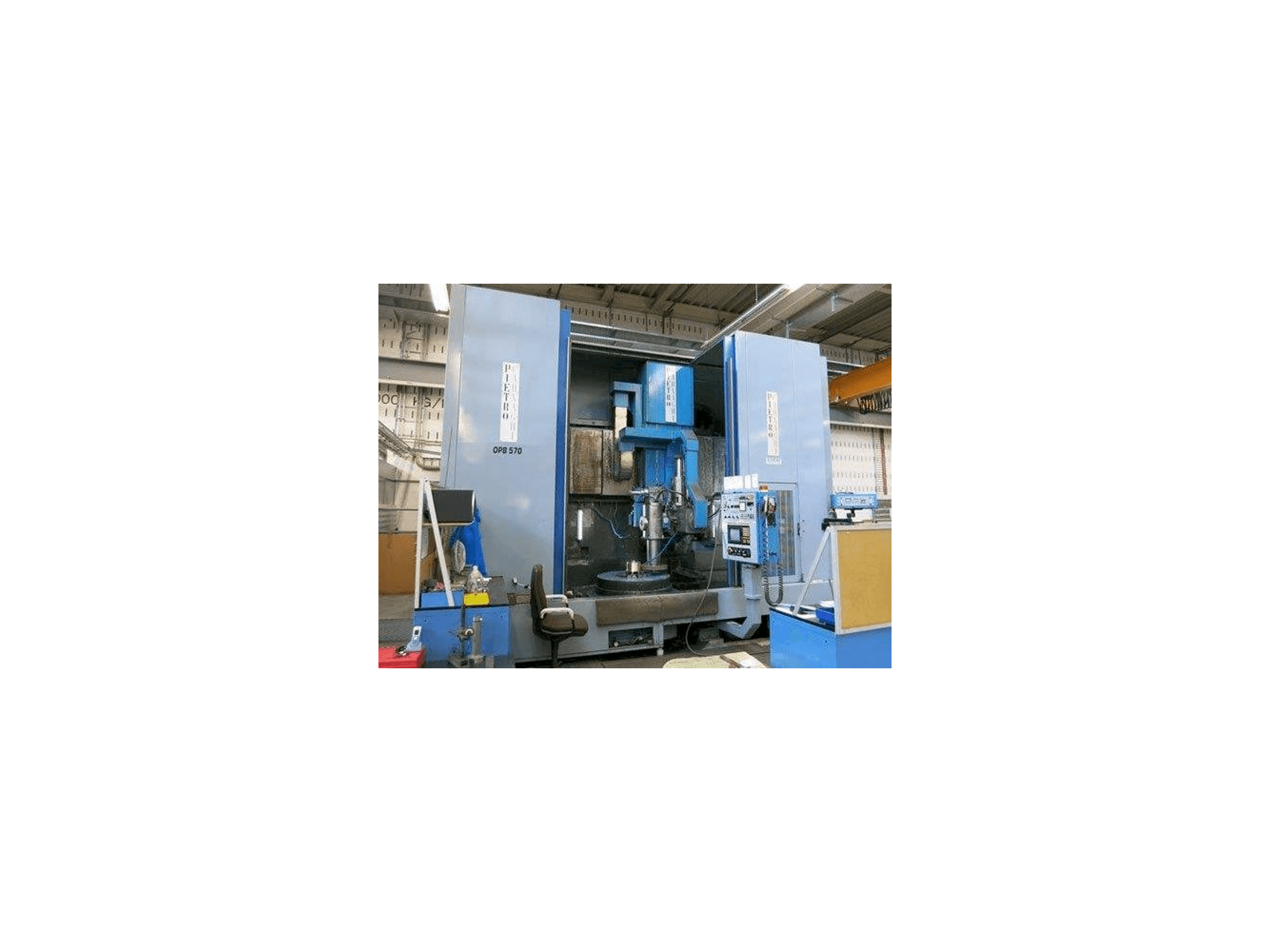

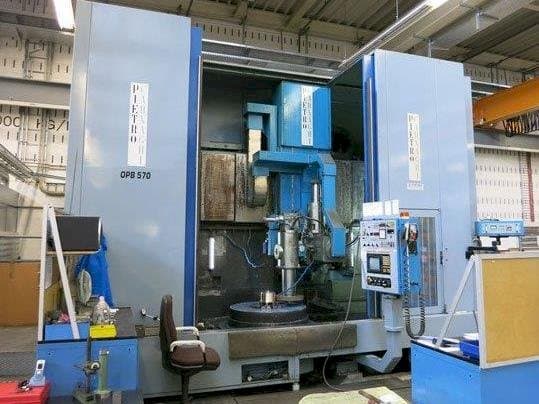

- PIETRO CARNAGHI ATF 8 SH Grinding Machine
This PIETRO CARNAGHI ATF 8 SH Grinding Machine was built in 1980 and has been retrofitted in the year 2004. It is equipped with a SINUMERIK System 3 control unit. The machine has 4 spindles, 2 of them works with a speed range between 1000 - 2800 rpm and spindle number 3 has a speed range 3000 - 6000 rpm. It includes automatic balancing device and several wheel-holder flanges.
Overview
- brand: PIETRO CARNAGHI
- year: 1980
- MODEL: ATF 8 SH
- application type: Turning
- Location: Italy
- machine type: Vertical Turning Machine
- control unit brand: SIEMENS
Technical Information - PIETRO CARNAGHI ATF 8 SH
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK System 3
Dimensions
- Machine Depth: 5000 mm
- Machine Height: 4600 mm
- Machine Weight: 42000 kg
Technical Specification
- Spindle Power: 12 kW
- Spindle Speed: 2800 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Automatic balancing device
- Tapering device
- Several wheel-holder flanges
Machine Benefits
Qualitative Machine Benefits
- Wagon for grinding (transverse): vertical displacement 650 mm
- Wagon for grinding (transverse) work advances: 0. 0005 - 50 mm/rev
- Wagon for grinding (transverse) work advances: 0. 01 - 2000 mm/min
- Wagon for grinding (transverse) rapid 4: m/min
- Wagon for grinding (transverse) minimum increment: 0. 001 mm
- Wagon for grinding (transverse) gyratory precision: 5 sec
- Spindle 1 (for external round grinding) wheel diameter: 250 - 400 mm
- Spindle 2 (to cheek) power: 15 kw
- Spindle 3 (for internal grinding) revolutions: 3000 - 6000 rpm
- Spindle 3 wheel diameter: 250 mm
Technical Machine Benefits
- Wheelheads: 4 units
- Magnetic table diameter: 1000 mm
- Maximum passage diameter: 1200 mm
- Grinding height: 420 mm
- Maximum external grinding diameter: 1100 mm
- Turning table diameter: 1000 mm
- Turning table revolutions: 5 - 150 rpm
- Turning table power: 10 kw
- Wagon for grinding (transverse): includes ball screws
- Wagon for grinding (transverse): cross travel 1180 mm
Extra Information
- Spindle 3 power: 15 KW - Spindle 4 (for internal grinding) wheel diameter: 50 mm - Spindle 4 minimum grinding diameter: 90 mm - Spindle 4 revolutions 15000 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
