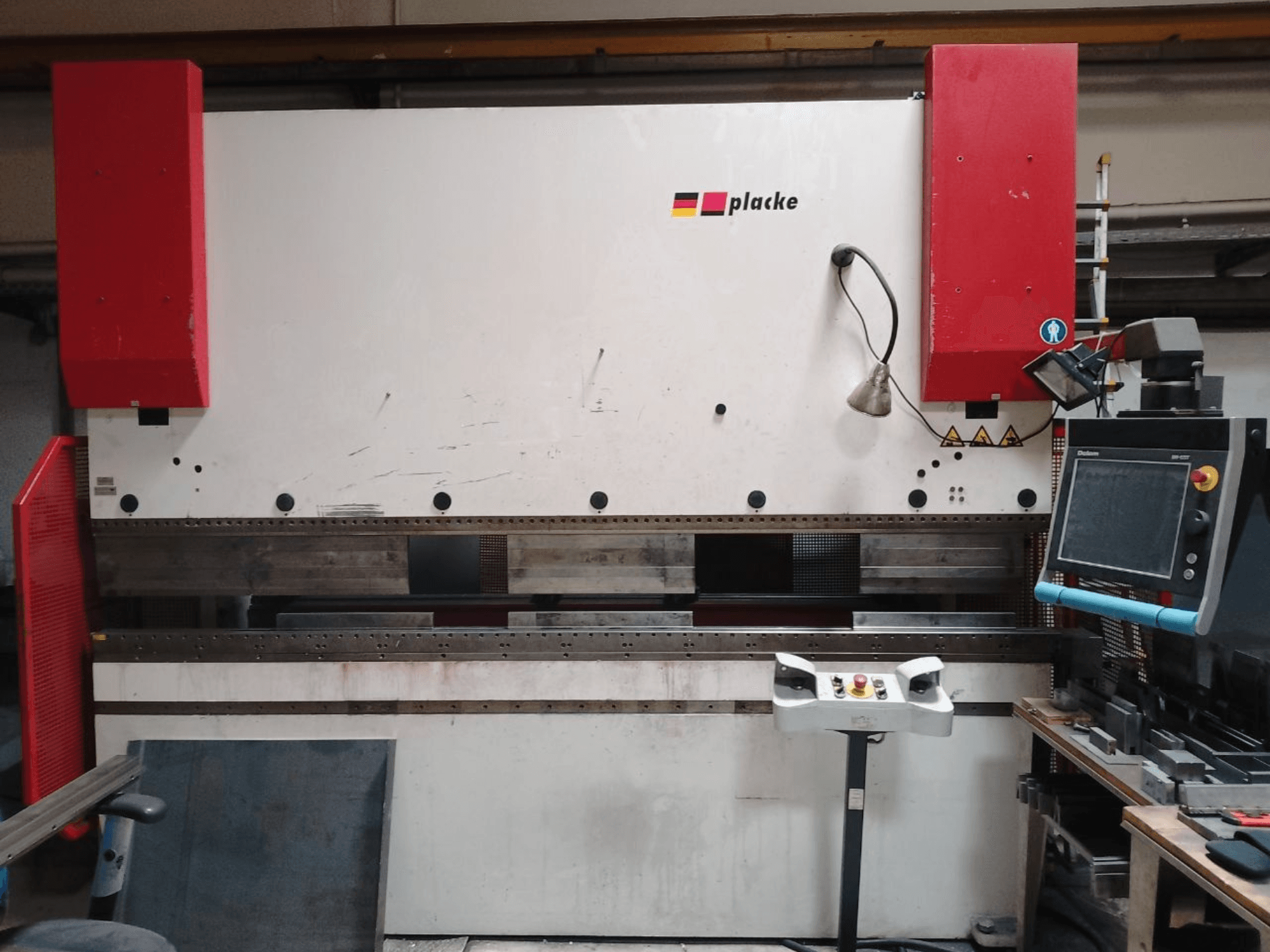

PLACKE - QPB-4 150/3100DE-BEN-PLA-2001-00001

- Control System / Software: Delem DA-69T CNC Control (4 axes)

- Operating Hours: 9,584.1 hours

- Maximum Operating Pressure: 300 bar

- Distance Between Uprights: 2600 mm

- Ram Stroke: 215 mm

- Installation Height: 525 mm

- Throat Depth: 300 mm

- Working Height (without table/tools): 900 mm

- Rapid Advance Speed: 150 mm/s

- Working Speed: 0 - 9.8 mm/s

- Return Speed: 100 mm/s

- Safety Speed: < 10 mm/s

- Stopping Time: 0.15 s

- Safety Distance: 270 mm

- Ram Dwell Time: 0 - 9.9 s

- Drive Power: 11 kW

- Total Connected Load: 15 kW

- Voltage / Frequency: 400 V / 50 Hz (3 PEN)

- Control Voltage: 24 V DC

- Current Rating: 30 A

- Fuse Protection: 35 A

- Hydraulic Tank Capacity: 270 L

- Max. Oil Operating Temperature: 80 °C

- Oil Filtration on Filling: < 25 µm

- Sound Level: < 70 dB(A)

- X-Axis Travel Range: 600 mm (Max speed: 400 mm/s, Accuracy: +/- 0.02 mm, Motor torque: 1.9 Nm)

- R-Axis Travel Range: 200 mm (Max speed: 200 mm/s, Accuracy: +/- 0.05 mm, Motor torque: 1.9 Nm)

- Z1-Z2-Z3-Z4 Axis Adjustment Range: 2400 mm (Manual adjustment)

- Crowning System: Mechanical crowning system by Wila (0.6 kW, controlled via CNC)

- Tool Clamping / System: Wila Modufix

- Operating Ambient Temperature: +5 °C to +40 °C

- Operating Humidity: 30% to 95% (non-condensing)

- Included Accessories & Tooling:

* Foot control panel

* Technical documentation (1 set)

* Sheet support arms: 2x 1m, 2x 0.5m

* Punches (Upper Tools): 5x 515mm (28°, H200); 2x 100mm (28°, H200); 1x 200mm (28°, H200); 1x each 20mm, 30mm, 35mm, 40mm (28°, H200); 2x 100mm (28°, H200 with corner notch); 2x 255mm

* Dies (Lower Tools): 5x 515mm (12x30°, R=1, H55); 6x segmented (12x30°, R=1, H55) [Total width 3m]; 4x 515mm; 1x 475mm; 8x segmented [Total width 3m]; 1x 515mm (50x80°, R=5, H55); 1x unspecified; 1x 200mm (V=8, 30°, R=1, H55)

* Tool extensions: 1x 1240mm (H140, L410), 2x 50mm (H100), 4x custom-made (H100)
