POSmill H 800 U

Photo Gallery

POSmill - H 800 UDE-MIL-POS-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

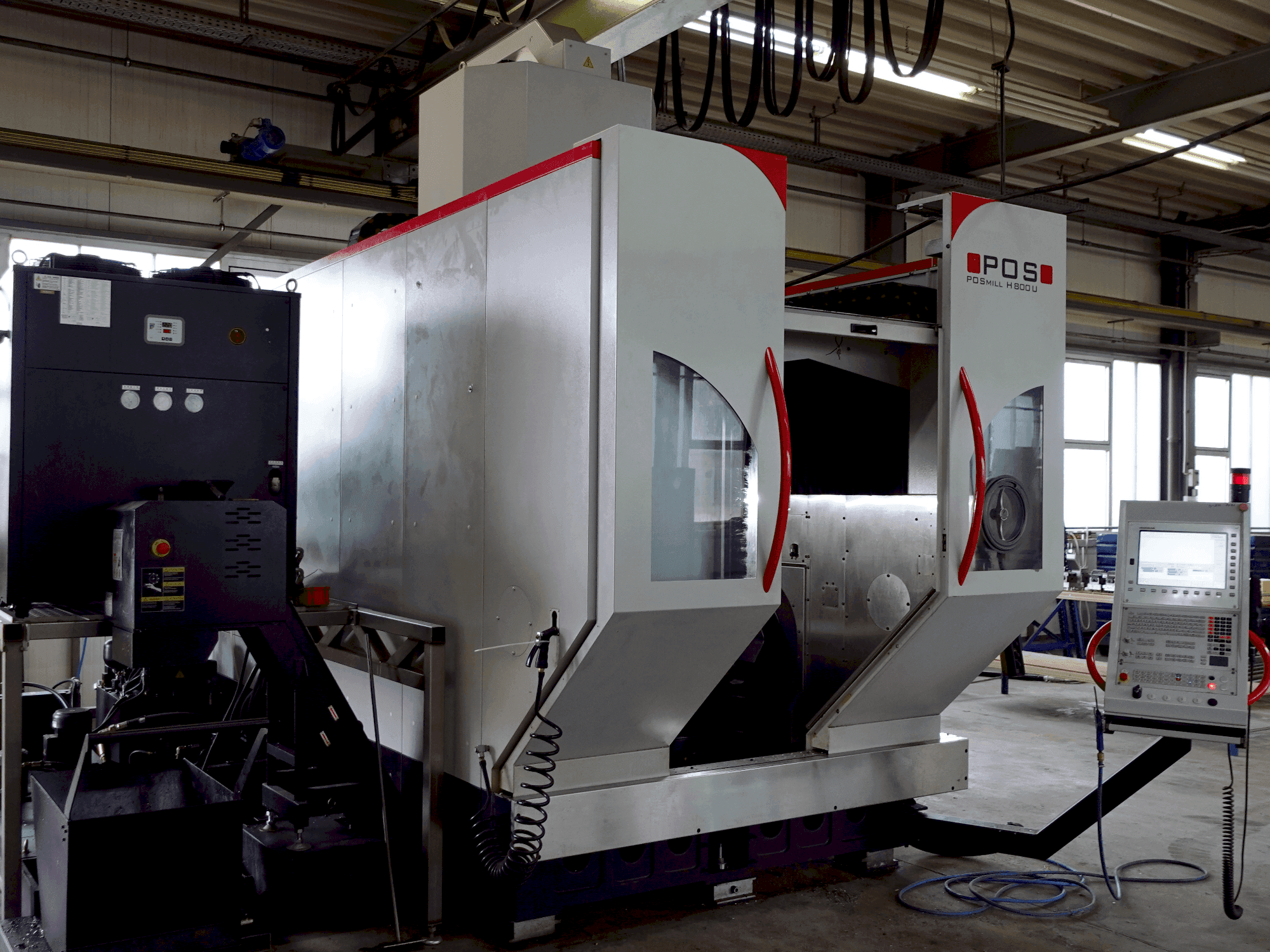

POSmill H 800 U Universal Machining center

Show in original language

This POSmill H 800 U Universal Machining center was manufactured in the year 2019. It is equipped with a HEIDENHAIN TNC i 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. This High-performance machining center is ideal for both demanding tool and mold making and high-volume production. Standard torque drives on all rotary axes enable full simultaneous 5-axis machining (swivel range: +/-120 degrees, rotary table: 360 degrees endless). See attached the full tech specs of the original order confirmation.

Overview

brand: POSmill
year: 2019
MODEL: H 800 U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H 800 U

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC i 530

Movement

Number of Axes: 5
X-axis Travel: 670 mm
Y-axis Travel: 830 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 18000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

High-performance machining center with 5 axis

Technical Machine Benefits

Swivel range: -120 to + 120 degrees
Rotary table: 360 degrees endless
Tool changer 96-fold
Hsk-a 63 heidenhain linear measuring system x,y,z
Sealing air for all linear measuring system
Active switch cabinet cooler air-air
Oil cooling for 4th + 5th axis, controlled
Spindle cooler, controlled
Rotation measuring system heidenhain, 3d probe tool measurement by blum laser
Ikz 20 bar with belt filter unit with temperature control coolant

Extra Information

Specific options: POSRobo Basic // POSrobo+ // POS gripper // Stainless steel platform for IKZ system POSmill H series

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

POSmill H 800 U (2019) - Overview Tech Specs.pdf
