- POS H800U Universal Machining Centre

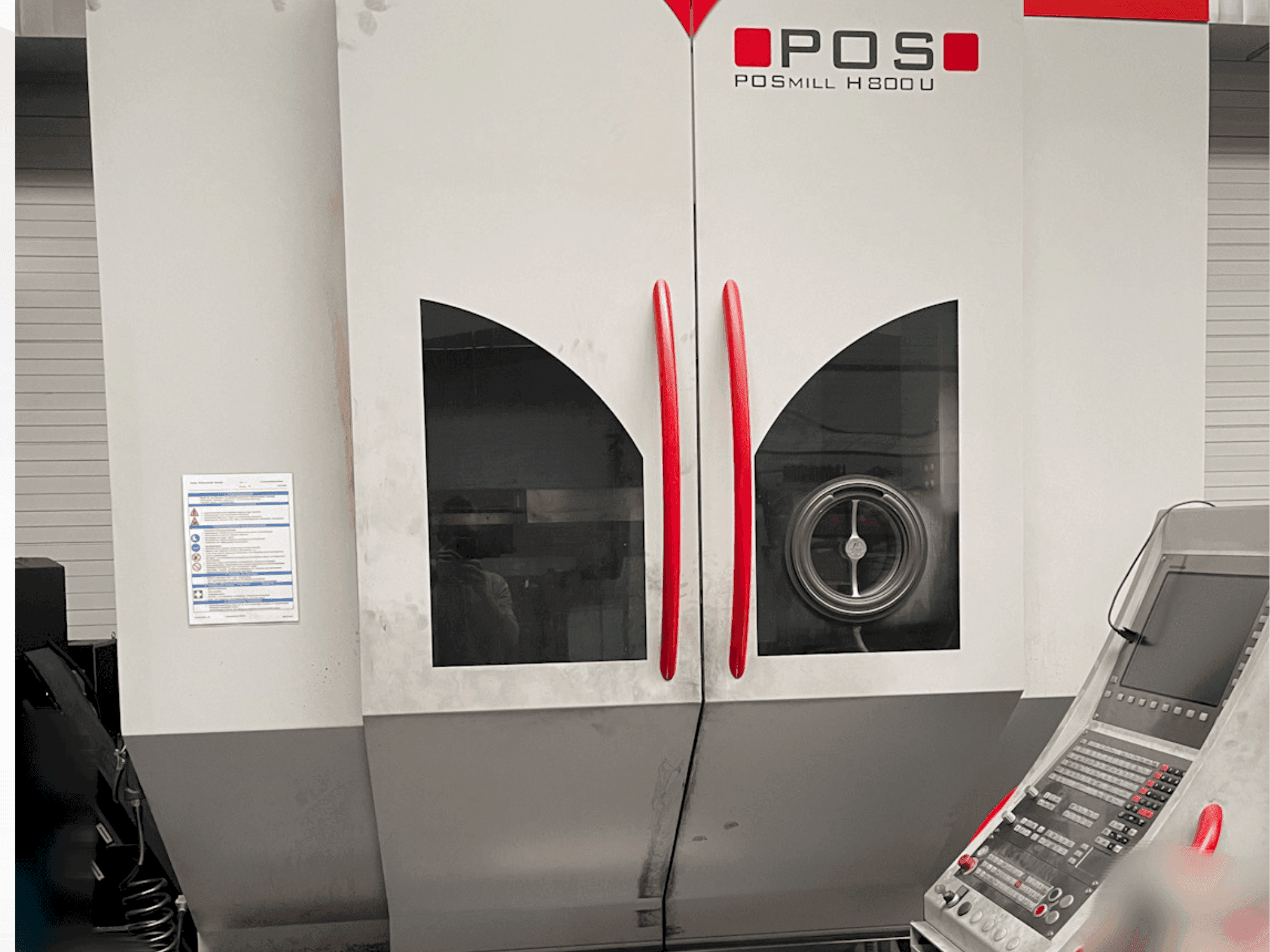

This POS H800U Universal Machining Centre was manufactured in 2018 in Germany. It has 5 axis (X = 670, Y = 600 mm, Z = 820 mm / Swivel range -100 to +120 degrees, Rotary table 360 degrees endless) and comes with a HSK-A63 spindle with 18,000 rpm. The machine is operated by a iTNC530 HEIDENHAIN control and is equipped with a Heidenhain rotary and linear measuring system X,Y,Z. As extras it features air through spindle, internal coolant supply 20 bar with belt filter unit, a KESSLER table with diameter 800 mm, tool measurement with BLUM laser and operation mode 4. See tech specs overview as PDF (DE) attached.
Overview
- brand: POSmill
- year: 2018
- MODEL: H800U
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Immediately
- control unit brand: Heidenhain
Technical Information - POSmill H800U
Control Unit
- Brand: Heidenhain
- Model: iTNC530
Main drive
- Spindle speed range: 18000 1/MIN
- Tool taper: HSK-A63
- Number of axis: 5
Movement
- X-AXIS Movement: 670 MM
- Y-AXIS Movement: 600 MM
- Z-AXIS Movement: 820 MM
Media
- Internal cooling: Yes
Additional Equipment
- - Heidenhain rotary measuring system
- - Heidenhain linear measuring system X,Y,Z
Additional Information
- Technical Machine Benefits:
- - Table clamping surface: diameter 800 mm
- - Swivel range -100 to +120 degrees
- - Rotary table: 360 degrees endless
- - 96-position tool changer
- - Air through the spindle
- - Internal coolant supply 20 bar with belt filter unit
- - Kessler table diameter 800 mm
- - Preparation for workpiece measurement
- - Infrared workpiece measurement - 3d - probe
- - Tool measurement with blum laser
- Qualitative Machine Benefits:
- - Operating mode 4
- - Rotation viewing window // POS DCM collision module
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
