- Quaser MK603HPD Horizontal Machining Center
Show in original language

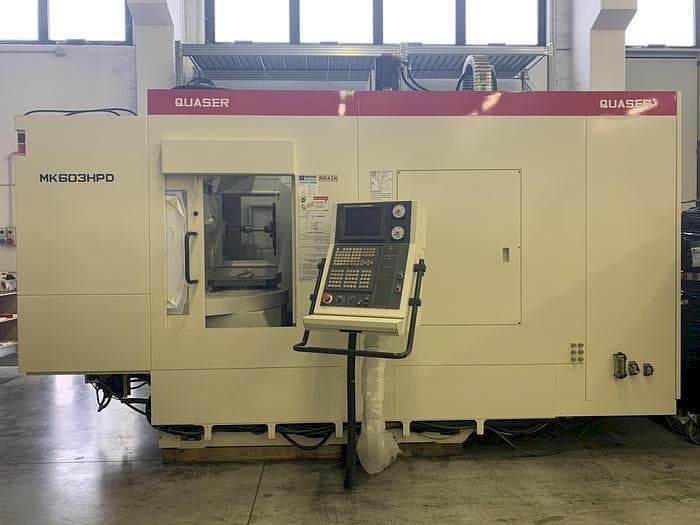

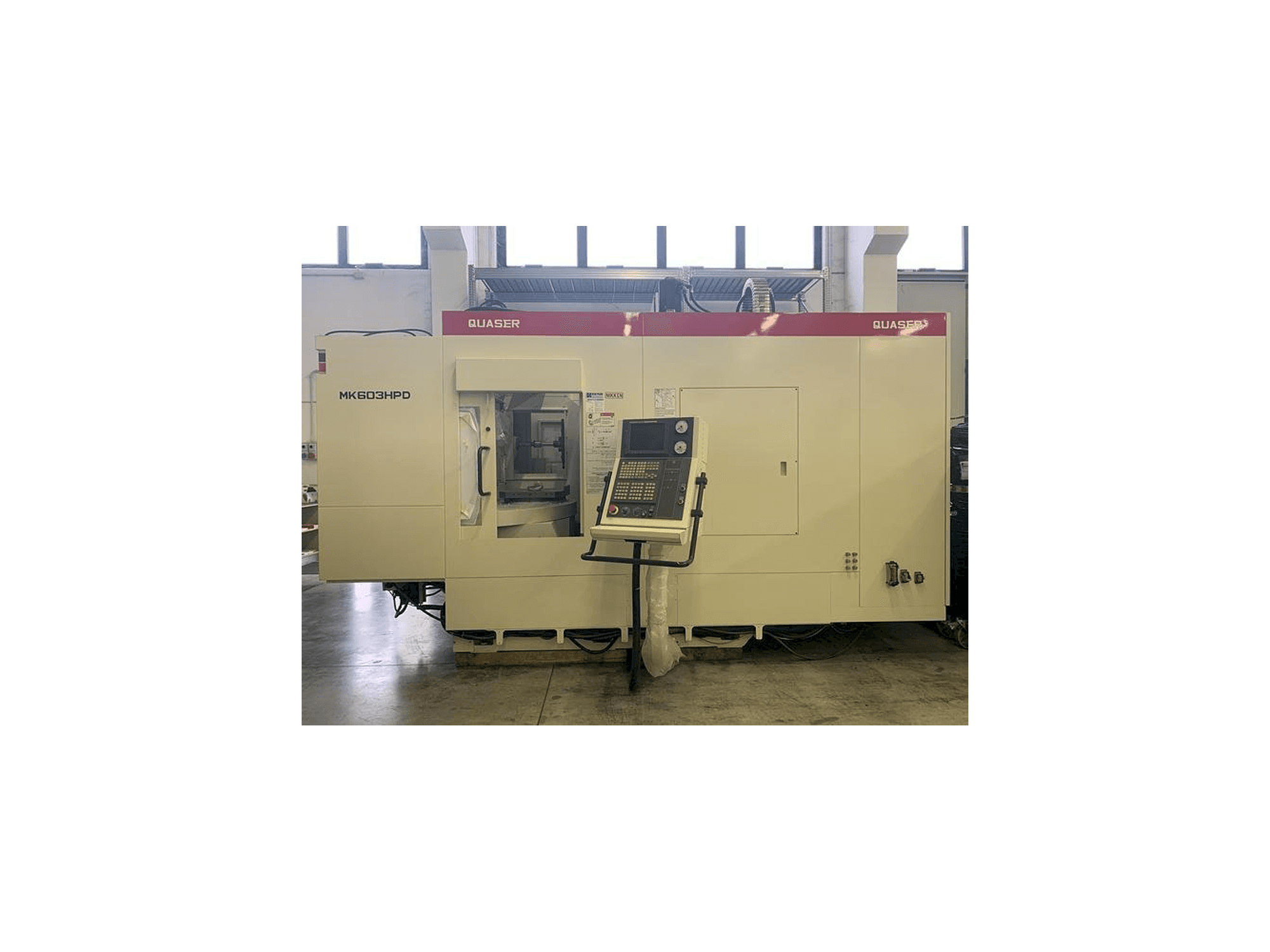

This Quaser MK603HPD Horizontal Machining Center from 2004 was built in Taiwan. It is equipped with a Fanuc Series 18I-MB control unit. This 4 axis machine can work with a spindle speed up to 15000 rpm.
Overview
- brand: Quaser
- year: 2004
- MODEL: MK603HPD
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - Quaser MK603HPD
Control Unit
- Control Brand: FANUC
- Control Model: Series 18I-MB
Dimensions
- Machine Depth: 4510 mm
- Machine Height: 3100 mm
- Machine Weight: 13000 kg
- Table Length: 500 mm
- Table Load: 500 kg
- Table Width: 500 mm
Movement
- Number of Axes: 4
- X-axis Travel: 710 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- The spindle cone is bt40
Technical Machine Benefits
- Table surface threaded holes
- Spindle connection din 6987-1
- Number of tools capacity 60
- Max diameter tool d. 80- d. 150
- Max length tool (from the reference line) 350mm
- Max weight tool 10 kg
- Tool change time (atc magazine) 4. 9 second
- Pressure (coolant) 50 bar
- Refrigerant tank additional 500l
- Dimensions max. Piece (length x width x height) (table) d. 680x710
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
