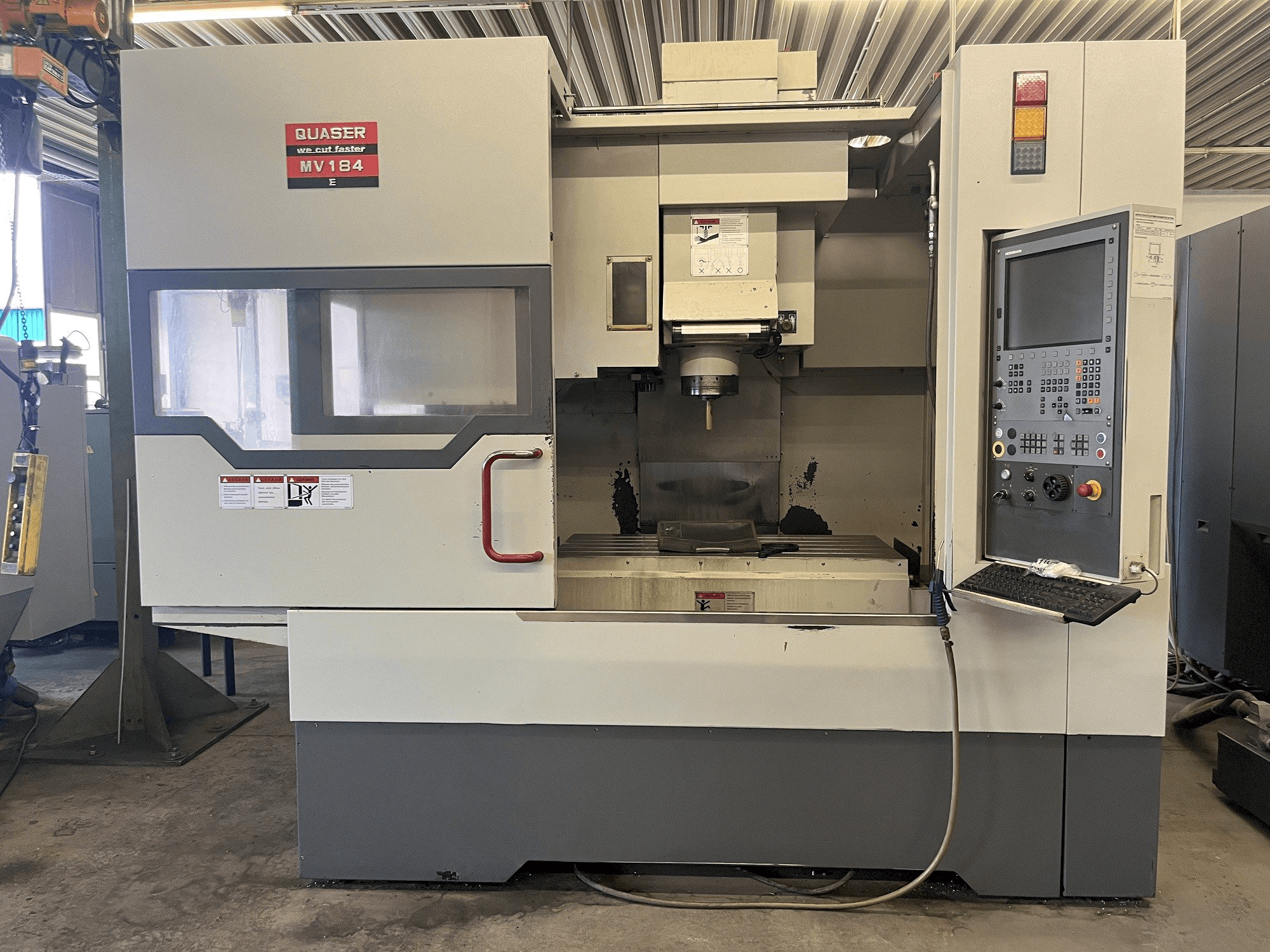

Front view of Quaser MV 184E  machine

Quaser - MV 184EDE-MIL-QUA-2009-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Quaser MV 184E Vertical Machine Center was manufactured in the year 2009. It is equipped with a Heidenhain iTNC 620 control unit and has 3. The machine has a spindle speed of 30 - 12000 rpm.

Overview

  • brand: Quaser
  • year: 2009
  • MODEL: MV 184E
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain

Technical Information - Quaser MV 184E

General Data

  • Measurements width: 2820 mm
  • Measurements depth: 2920 mm
  • Measurements height: 2860 mm
  • Machine weight: 6790 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 620

Main drive

  • Spindle speed range: 30 - 12000 1/MIN
  • Spindle motor power: 17 kw
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 610 mm

Table

  • Outer length: 1200 mm
  • Outer width: 600 mm
  • Table load: 7 kg

    Additional Equipment

    • - Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Internal coolant supply 20 bar
        • - Number of tools in the magazine 30 pieces
        • - Tool holder sk 40
        • - Double-arm tool changer with 30 storage locations
        • - Large dimensioned linear guides in all axes
        • - Highly dynamic digital feed drives with 6800 n (z 13900 n) axis power
        • - Computer-optimized, heavy machine body made of heavily ribbed cast iron
        • - Rapid traverse 32 rnlmin (z ;24 mlmin), acceleration {x/y/z) 3/3 /3 m/sec'
        • - Torque 108 nm
        • - Siemens-weiss main spindle sk 40, suitable for standard fixtures and tooling with facing system
      • Qualitative Machine Benefits:
        • - Cooling system for main spindle with separate 100 1 oil cooling circuit and air supply for main motor
        • - Preloaded ball screws diam. 45 mm
        • - Tool holders according to din 69871 (bt 40 oplion), tool tightening bolts according to din 69872 (iso) 7388 option)
        • - Chip disposal, consisting of 2 screw conveyors and sptllsyslem in the working area, as well as scraper belt conveyor
        • - Coolant tank with 300 l capacity
        • - Flood cooling, with 12 adjustable outlet nozzles located in a ring on the spindle nose, conveying capacity 60 1/min at 2 bar palron filter 80 µ for chip flushing and flood cooling
        • - Internal coolant supply with grundfoss pump 20 bar. 251/min, incl. Cartridge filter 25 µ
        • - Chip flushing with grundtoss pump 60 1/min at 2 bar, stainless steel chip trays in the working chamber
        • - Working chamber full protection with large viewing doors (door opening 900 mm) and 2 working area lights, as well as machine status light
        • - Blow air, external. For dry processing

      Extra information

      • - Coolant spray gun. - two-color painting in light gray/grey. - Glass scales for X-. Y- and Z-axis (HDH) including overpressurization to prevent contamination of the direct measuring system. - Automatic central lubrication for the ball screws. - Quaser machining centers comply with CE standards.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
