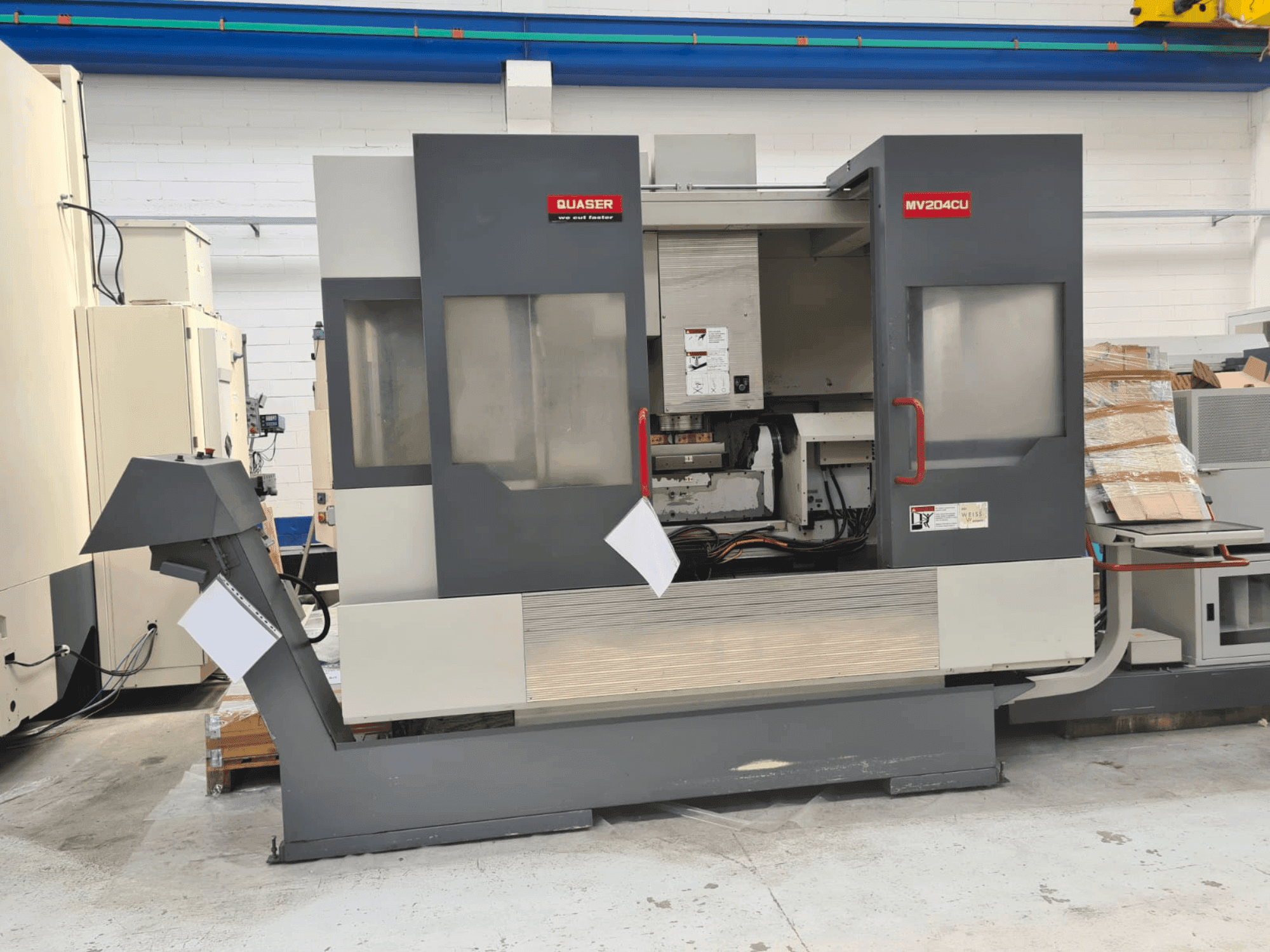

Front view of Quaser MV204-CU/12  machine

Quaser MV204-CU/12

Quaser - MV204-CU/12

2007

70,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-Axis QUASER MV204-CU/12 vertical machining center was manufactured in 2007. It boasts X, Y, and Z-axis travels of 700 mm, 660 mm, and 480 mm respectively, with a table diameter of 500 mm and a 32-position tool magazine. The machine features a SK 40 spindle taper, coolant inside the spindle, and rapid traverse rates of 30 meters/min. Ideal for intricate milling tasks, the QUASER MV204-CU/12 machine we have for sale ensures high precision and efficiency. Contact us for further details.

Overview

  • brand: Quaser
  • year: 2007
  • MODEL: MV204-CU/12
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • GINDUMAC ID: IT-MIL-QUA-2007-00001

Technical Information

General Data

  • Measurements width: 3500mm
  • Measurements depth: 3000mm
  • Measurements height: 2900mm
  • Machine weight: 9500 kg

Main drive

  • Spindle motor power: 15 KW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 700mm
  • Y-AXIS Movement: 660mm
  • Z-AXIS Movement: 480mm

Table

  • Outer length: 400mm
  • Outer width: 400mm
  • Min distance between vertical spindle and table: 150mm
  • Max distance between vertical spindle and table: 610mm
  • Table load: 265 kg

Tools

  • Slots in storage: 32
  • Type of tool holder: SK40

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Rotation range of the a axis: +/- 110°
      • - C axis rotation range: 360°
      • - Rapid x y z: 30 metres/min
      • - Table diameter: Ø 500 mm
      • - Coolant inside the spindle
      • - Belt chip conveyor
      • - Electronic handwheel
      • - Optical lines

    Extra information

    • - machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
