Quaser - UX-600CZ-MIL-QUA-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Quaser UX-600 Vertical Machining Center

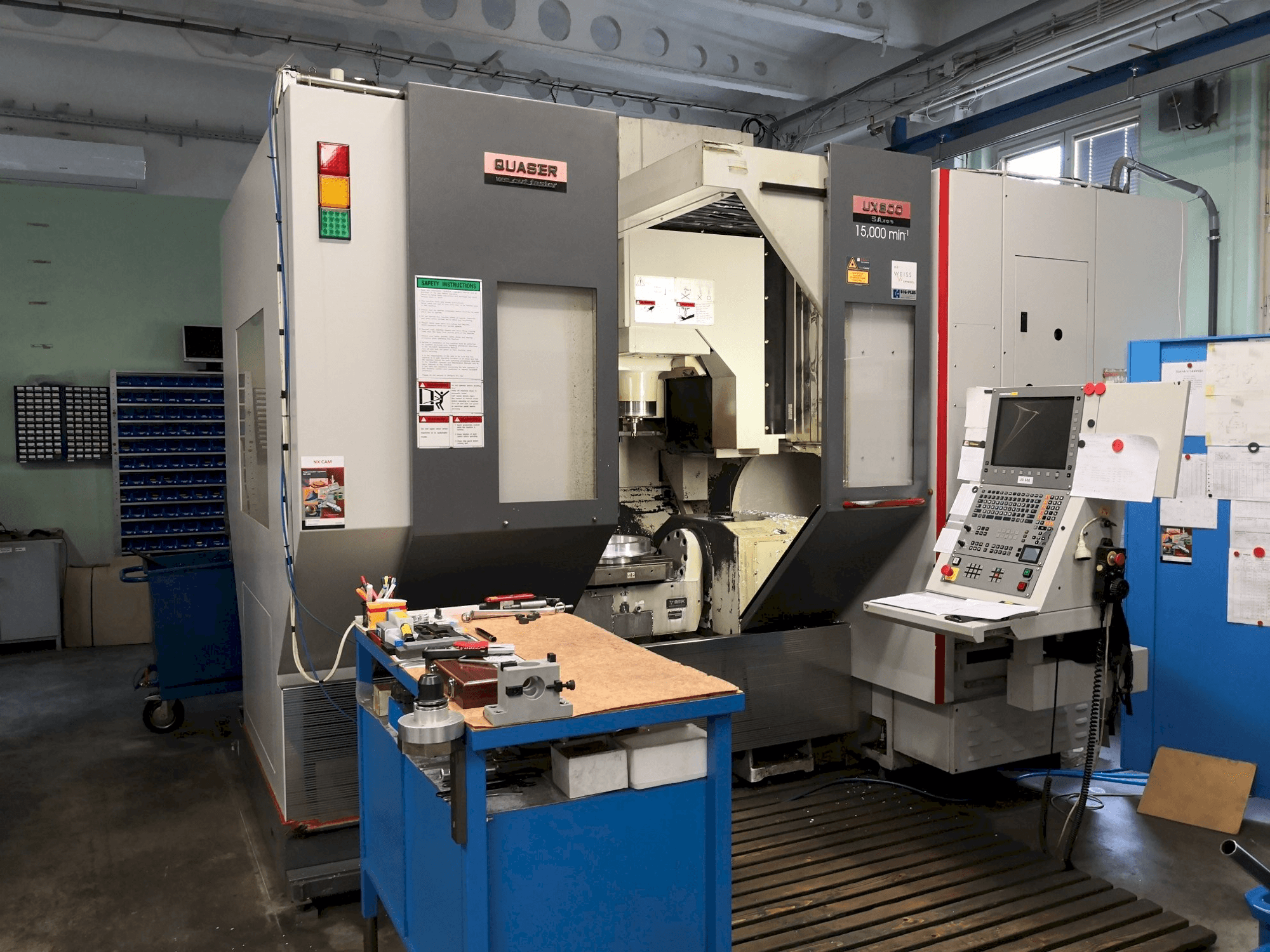

This Quaser UX-600 Vertical Machining Center was manufactured in 2008 in Taiwan. It has been working for 45701 hours, of which 23090 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. This 5 axis machine can work with a spindle speed up to 15000 rpm. New spindle installed in 2014.
Overview
- brand: Quaser
- year: 2008
- MODEL: UX-600
- production hours: 45701
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Quaser UX-600
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 3810 mm
- Machine Height: 3200 mm
- Machine Weight: 12100 kg
- Table Length: 600 mm
- Table Width: 500 mm
Movement
- Number of Axes: 5
- X-axis Travel: 885 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 48
- Spindle Speed: 15000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition.
- In operation since 2010
- New spindle installed in 2014
Technical Machine Benefits
- 5 axis machine with direct measurement on all axes
- A axis + 30 / - 120 degrees
- C axis 350 degrees (continuous)
- Max. Swing 640 mm
- Max. Workpiece size 640 x 415 mm
- Table surface to spindle nose 30-530 mm
- Feed force 13. 700 n
- Rapid movement 36 m/min
- 20 bar cooling through spindle
- Blum laser tool probe, + renishaw workpiece probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
