- Quaser UX600/15C 5-axis Vertical Machining Center

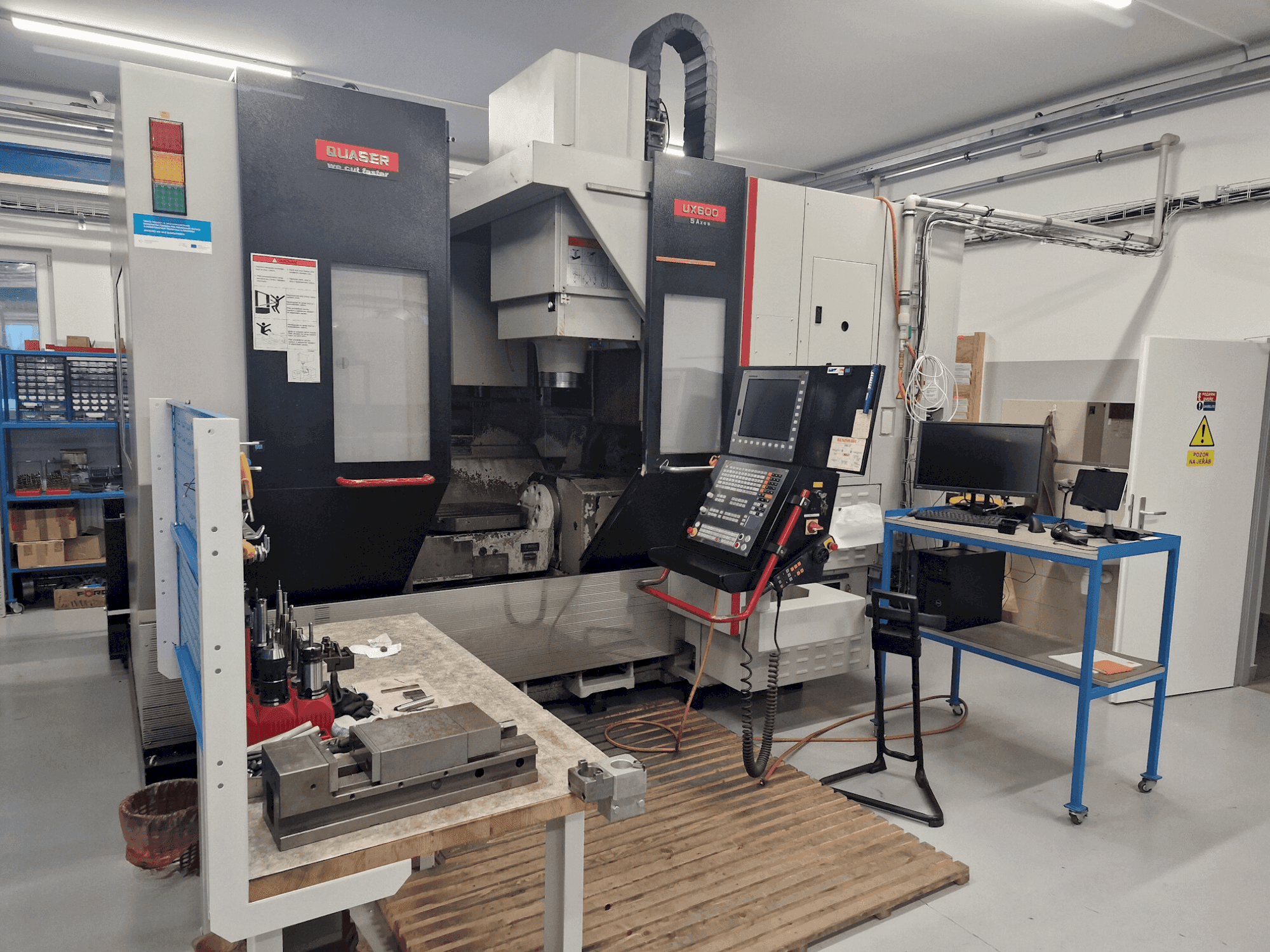

This Quaser UX600/15C Vertical Machining Center was manufactured in the year 2015 in Taiwan. It is a 5 axis machine with direct measurement on all axis operated by a Heidenhain iTNC 530 control. With SK40 and 15000 rpm it is the ideal solution for sophisticated simultaneaous machining.
Overview
- brand: Quaser
- year: 2015
- MODEL: UX600/15C
- production hours: 34616
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - Quaser UX600/15C
General Data
- Measurements width: 3800 MM
- Measurements depth: 4050 MM
- Measurements height: 3200 MM
- Machine weight: 12100 KG
Control Unit
- Model: iTNC 530
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 15000 1/min
Movement
- X-AXIS Movement: 885 MM
- Y-AXIS Movement: 800 MM
- Z-AXIS Movement: 500 MM
Workpiece
- Workpiece weight: 300 kg
Table
- Outer length: 600 MM
- Outer width: 500 MM
Tools
- Slots in storage: 48
- Max weight: 7 kg
- Max tool diameter: 76.2/125 mm
- Max tool length: 280 mm
- Type of tool holder: SK 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - 5 axis machine with direct measurement on all axis
- - A axis + 30 / - 120 degrees
- - C axis 350 degrees (continuous)
- - Max. Workpiece diameter 640 mm, max. Workpiece weight 500 kg.
- - 15617 Spindle Hours
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
