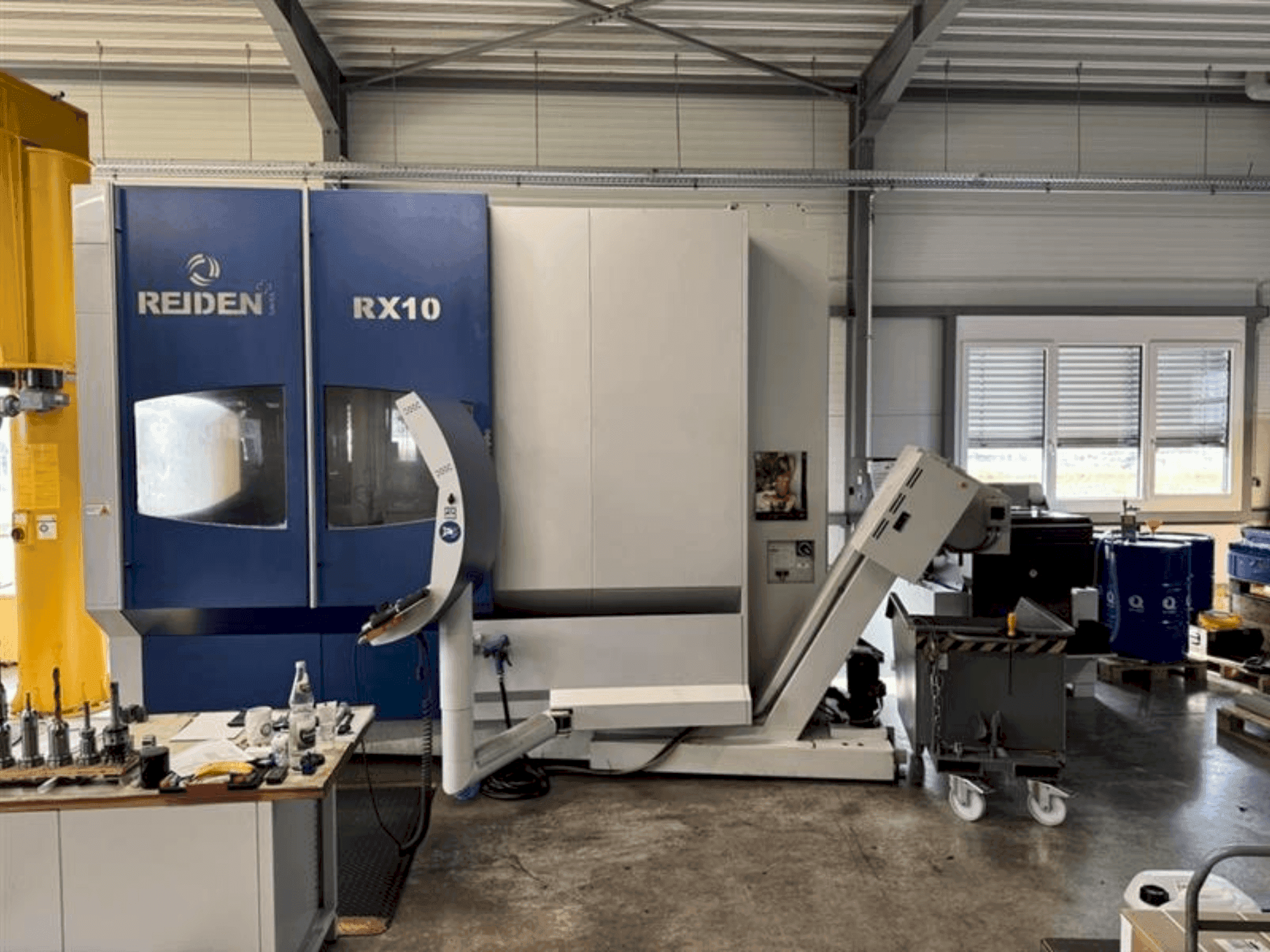

Reiden RX10 5X

Photo Gallery

Reiden - RX10 5XDE-OTH-REI-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Reiden RX10 5X Machine Tool For Sale | gindumac.com

Show in original language

This 5-axis Reiden RX10 5X was manufactured in 2019 and features a HEIDENHAIN TNC 640 control system, a swiveling control panel with dual 19" monitors, and a high-speed swivel milling head with a speed of 16,000 min-¹. It includes a rack magazine with 85 tool places and an internal coolant supply at 80 bar. If you are looking to get high-quality milling capabilities, consider the Reiden RX10 5X machine we have for sale. Contact us for more information.

Overview

brand: Reiden
year: 2019
MODEL: RX10 5X
production hours: 6293
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Reiden RX10 5X

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 640

Movement

Number of Axes: 5
X-axis Travel: 1000 mm
Y-axis Travel: 1100 mm
Z-axis Travel: 810 mm

Technical Specification

Spindle Power: 38 kW
Spindle Speed: 16000 RPM

Additional Information

Additional equipment

Chip Transport: Scraper belt chip conveyor (ejection height: 1100 mm)
Protective systems: Full-space protective cladding with angled door and quick-access door
Laminated glass viewing windows

Machine Benefits

Technical Machine Benefits

Torque: 105 nm (100 % ed), 135 nm (40 % ed), 155 nm (25 % ed)
Nc rotary table: Ø 1000 × 800 mm with t-slots (18h7 / 100 mm)
Drive: preloaded screw
Oscillating circuit: Ø 1350 mm
Tool changer: rack magazine with 85 places
5-fold tool loading station
Dialog control panel
Blum tc60 wireless touch probe (incl. Kinematicsopt and calibration ball)
Trs2 tool breakage detection (for tools from Ø 2 mm)

Extra Information

Measuring Systems: Direct path measuring systems (HEIDENHAIN) with sealing air connection Micro-Epsilon “Spindle Growth System” (thermal spindle compensation) HEIDENHAIN software options: AFC, ACC, DNC option, DXF converter The machine received a complete update last month, with a latest generation milling head featuring electronic temperature monitoring. Media Coolant Supply: Internal coolant supply (80 bar, 20 l/min) with paper band filter and fine filter (40 µm) Air blast through the center of the spindle (selectable via M function) Oil and emulsion mist extraction (1800 m³/h suction power) Control Unit Control: HEIDENHAIN TNC 640 Swiveling control panel with two 19" monitors HEIDENHAIN HR510 handwheel 3 potentiometers (feed rate, rapid traverse, speed) 3-color status light HEIDENHAIN DCM (collision monitoring)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
