SCHELLING - FLM 365.002HU-SAW-SCH-1995-00001

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

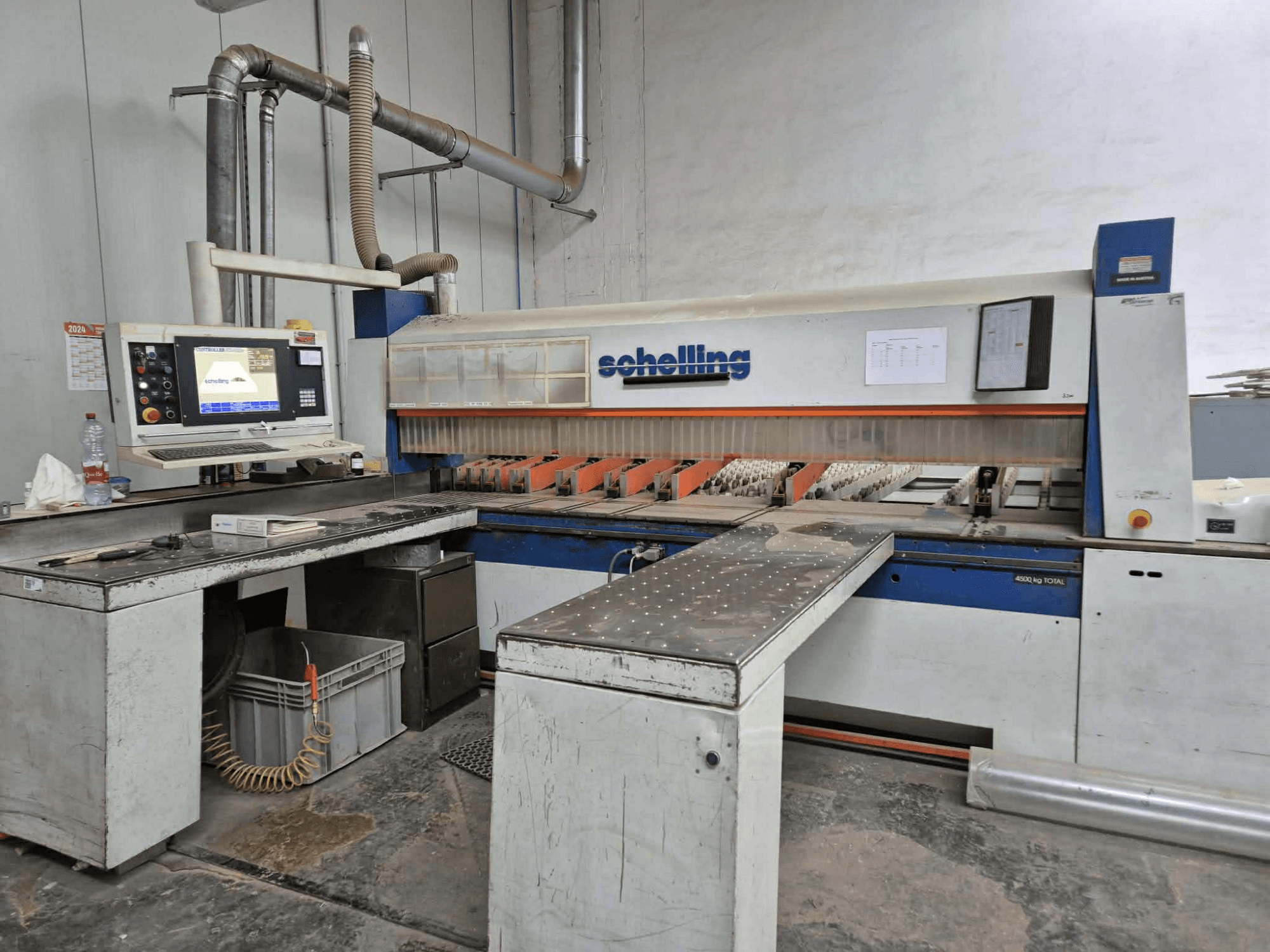

This SCHELLING FLM 365.002 panel saw was manufactured in 1995. It features a main saw blade diameter of 400 mm and a scoring saw blade diameter of 200 mm, with a maximum saw blade projection of 80 mm. The machine is capable of processing materials like acrylic and glass-fiber reinforced plastic, with a maximum panel length of 3000 mm and a maximum thickness of 80 mm for acrylic. Consider the opportunity to buy this SCHELLING FLM 365.002 panel saw. Contact us for further details.

Overview

  • brand: SCHELLING
  • year: 1995
  • MODEL: FLM 365.002
  • application type: Sawing (Wood)
  • Location: Hungary
  • machine type: Panel Saw
  • Available from: 13/02/2026

Additional Information

  • Technical data:

    • Main saw blade diameter: 400 mm

    • Scoring saw blade diameter: 200 mm

    • Max. saw blade projection: 80 mm

    • Max. clamp opening: 100 mm

    • Max. stack height: 60 mm

    • Main motor power (50/60 Hz): 15 / 18 kW

    • Saw unit feed speed: 0.2 – 22 m/min

    • Saw unit return speed: 22 m/min

    • Forward feed speed: 10 m/min

    • Backward feed speed: 10 m/min

    • Working height: 930 mm

  • Performance and requirements:

    • Processable materials: Acrylic, glass-fiber reinforced plastic (GFRP)

    • Max. panel length: 3000 mm

    • Max. panel width: 2200 mm

    • Max. thickness (Acrylic): 80 mm

    • Max. thickness (GFRP): 60 mm

    • Edges: deburred

    • Panel flatness: max. wave 5 mm

    • Thickness tolerance: ±0.2 mm

    • Electrical power consumption: approx. 25 kW

    • Supply voltage: 380 V / 50 Hz

    • Compressed air requirement: approx. 100 l/min (6 bar)

    • Extraction requirement: approx. 4000 m³/h (air speed 32 m/s)

  • Equipment (included with the machine):

    • Scoring unit

    • Servo-driven feed (0 – 40 m/min)

    • Side guides on roller table, automatic adjustment; adjustment range 80 – 2200 mm

    • Safety light curtain with separate support frame

    • Hold-down clamps (according to machine configuration)

    • Cooling and spraying system

    • Computer control – COMMANDER (PLC/SPS) with display, membrane keyboard, diagnostic system

    • Graphical display of cutting plans

    • Electrical cabinet and control integrated in the machine

    • Slow scoring / pre-cut function

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
