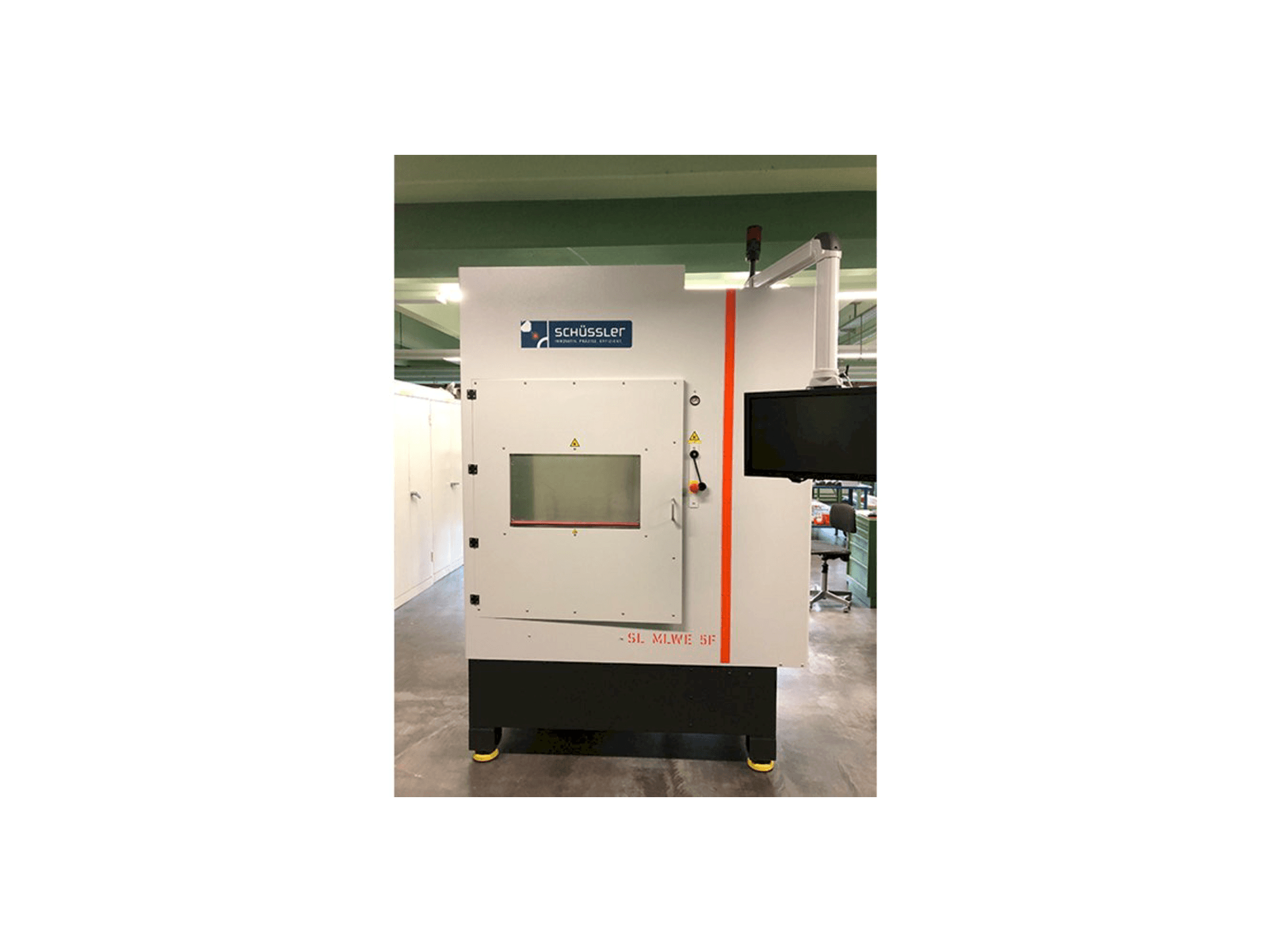

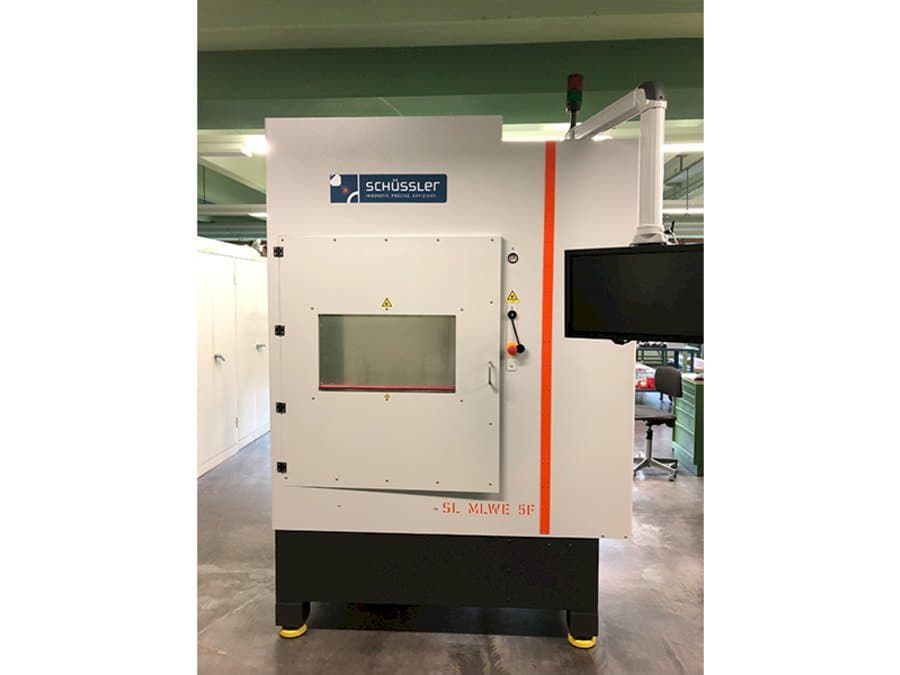

Schussler SL MLWE 5F
Schussler - SL MLWE 5F
2020
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Schussler SL MLWE 5F Laser Welding machine
This Schussler SL MLWE 5F Laser Welding machine was manufactured in the year 2020. Operated through an Industrial touch monitor. This 5 axis works with a QCW laser (IPG) 150 kW. Machine is new, has 0 production hours.
Overview
- brand: Schussler
- year: 2020
- MODEL: SL MLWE 5F
- production hours: 0
- application type: Welding machine
- Location: Germany
- machine type: Welding machine
- availability: Sold
- GINDUMAC ID: DE-WEL-SCH-2020-00001
Technical Information
General Data
- Measurements width: 1700 mm
- Measurements depth: 1260 mm
- Measurements height: 2350 mm
Main drive
- Number of spindles: 1
- Laserpower: 150 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 200 mm
Table
- Table load: 25 kg
Media
- Main electronic connection: 400V 50/60 Hz
Additional Information
- Technical Machine Benefits:
- - Workpiece holder on the rotary-swivel unit
- - Led work area lighting
- - Door with automated loading window
- - Observation camera in the interior
- - Maintenance-free direct drives as linear and rotary axes
- - Switch cabinet with integrated control
- - Industrial touch monitor
- - Industrial pc (i7) with windows operating system data transfer via usb and network
- - Wavelength 1055-1070 nm
- - Pulse frequency 0-5 khz, cw
- Qualitative Machine Benefits:
- - 5 machines available - each machine including the laser and the optic
- - The machines have a legal warranty of 12 months
- - 5 axis cnc laser machining center for microlaser welding with "fixed optics"
- - Basic machine flexible cnc laser machining center
- - Machine frame in stable steel-welded construction housing according to laser protection class 1
- - Compact design due to attached laser source
- - Objective f=150 mm
- - Rotation axis without clamping cylinder
- - Preparation protective gas supply in the machine consisting of valve and connection at the back of the machine for connection of gas supply by customer
- - Suction preparation consisting of sensor and flexible hose
- - Machine as new
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
