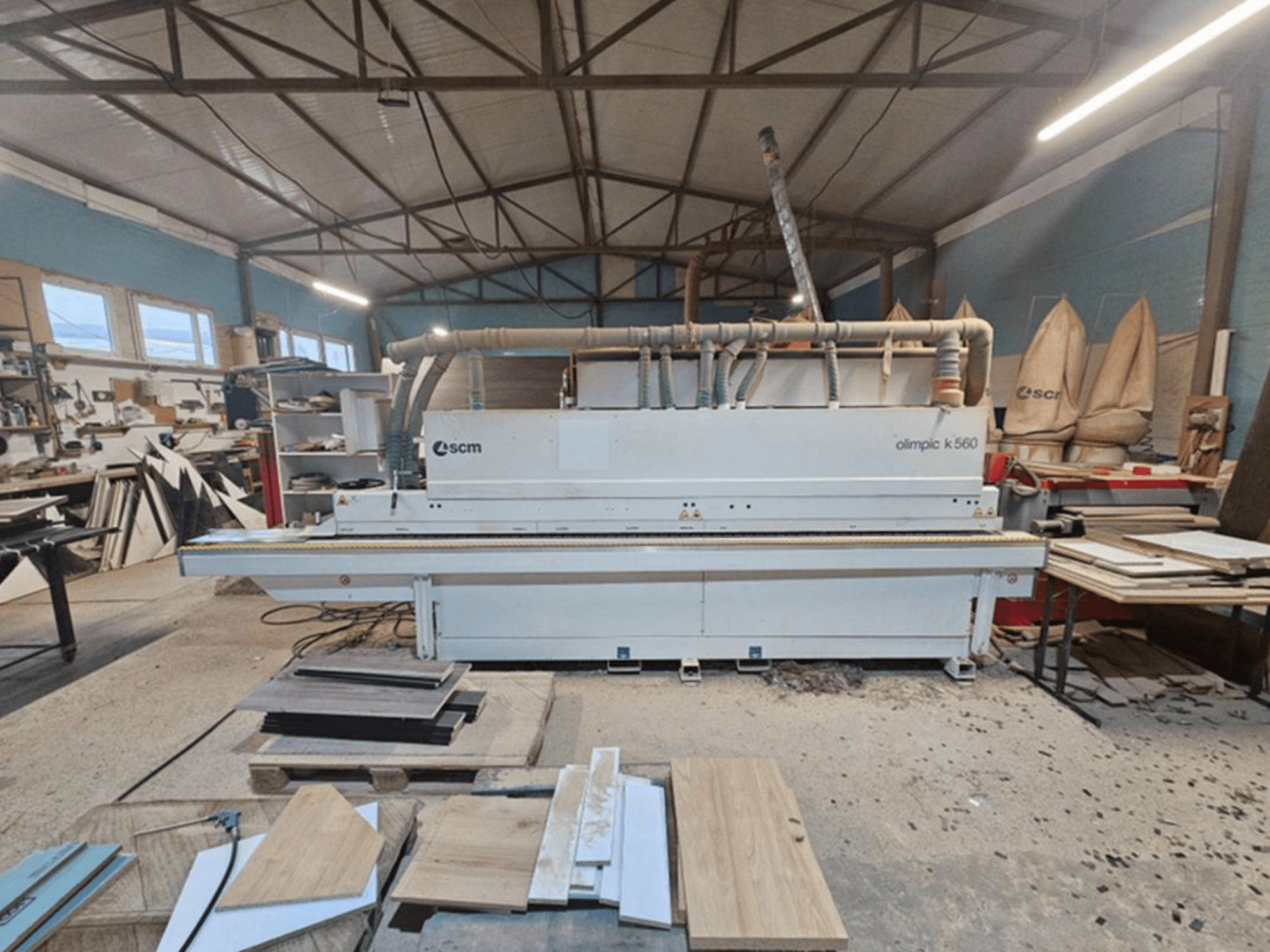

SCM - Olimpic K 560RO-EDG-SCM-2019-00003

Key features

• Feed speed up to 18 m/min with 600 mm panel spacing, even with corner rounding

• Touch 7 color touchscreen control with graphics, program management, diagnostics, and digital glue temperature control

• 2-motor Round X corner rounding group for corner rounding and trimming

Technical specifications

• Feed speed: 12–18 m/min

• Workpiece thickness: 8–60 mm

• Edge thickness (roll): 0.4–3 mm

• Edge thickness (strip): 0.4–6 mm

• Max edge cross-section (roll): 135 mm²

• Max roll diameter: 800 mm

• Edge overhang: 2 mm top / 2 mm bottom

• Workpiece spacing: 600 mm

• Min workpiece length: 140 mm

• Min workpiece width: 95 mm (60 mm with special setting)

• Minimum length (roll material): 180 mm

• Minimum length (strip material): 220 mm

• Opening of workpiece pressure bar: 560 mm

• Working height: 900 mm

Control system (Touch 7)

• 7" color touchscreen (16:9)

• Graphical display and simulation of all units

• Control of all units and automatic start functions

• 60 freely editable programs

• Full PLC control with encoder monitoring

• Digital glue pot temperature control

• Diagnostics with operator assistance

• Statistics: piece counts, edge meters, chain runtime

• Pass selection: first or second processing pass

Processing units

• Joining milling: two diamond jointing cutters, 1.8 kW each, 12,000 rpm

• Glue unit VC-S4.1: 3 kW heating, 1.5 kg tank, Fastlock quick-change, motorized main + three pressure rollers

• Trimming unit K/SEL: two HF motors 0.35 kW each, 12,000 rpm, swivel 0–15°

• Flush milling unit R-K: two HF motors 0.55 kW each, 12,000 rpm, tool radius R2

• Round X corner rounding: two HF motors 0.35 kW each, 12,000 rpm, backlash-free precision guides

• Scraper unit RAS-K: tool radius R2

• Polishing unit SP-V: two motors 0.18 kW each, 3,000 rpm

Additional equipment

• Autoset T-ER2 automatic changeover:

  • Switching between first and second passes

  • Automatic edge thickness change (e.g., 0.4 mm to 2 mm)

• Release agent/anti-adhesive spray system AAR

• Glue scraper unit RC-V

• H=64 mm diamond tools for rectifying/pre-milling group
