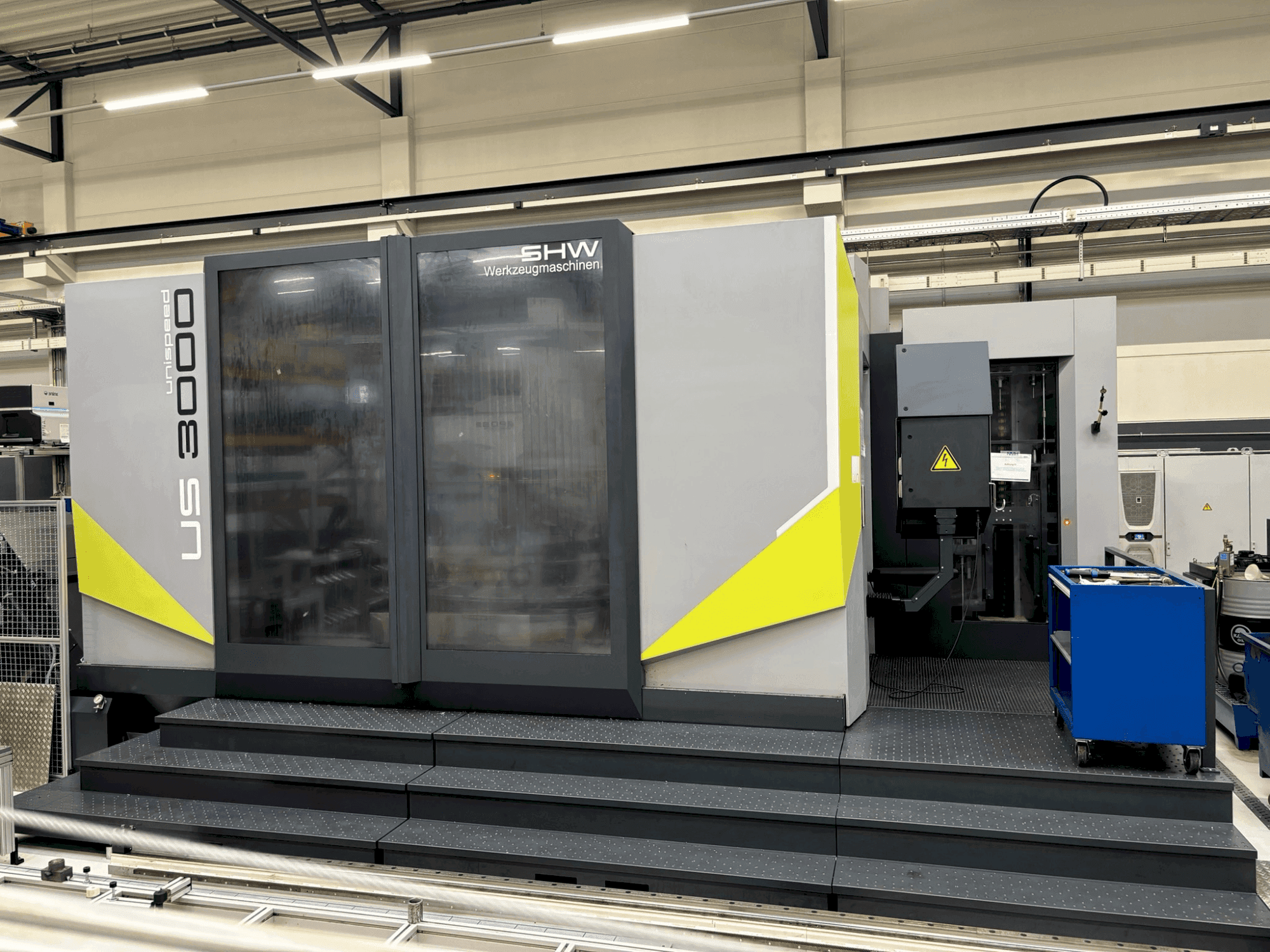

SHW Unispeed 3000

Photo Gallery

SHW - Unispeed 3000DE-MIL-SHW-2022-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Milling machine SHW Unispeed 3000 - 2022 - for sale | gindumac.com

Show in original language

This milling machine was manufactured in 2022. Equipped with KUKA KR 270 R2700 ultra, the SHW Unispeed 3000 offers precision and reliability in machining operations. Its 5-axis configuration with three linear and two rational axes ensures efficient material removal and accurate shaping. The robust build and advanced automation capabilities make it suitable for various industrial applications. For those seeking a dependable machining solution, consider this SHW Unispeed 3000 milling machine. For further details, contact us today.

Overview

brand: SHW
year: 2022
MODEL: Unispeed 3000
production hours: 4952
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - SHW Unispeed 3000

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC640

Dimensions

Table Load: 8000 kg

Movement

Number of Axes: 5
X-axis Travel: 3000 mm
Y-axis Travel: 1300 mm
Z-axis Travel: 1300 mm

Technical Specification

Max. Tool Weight: 30 kg
Spindle Speed: 6000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Swivel range c-axis +-180°
Swivel range a-axis +-180°
radio measuring probe RMP 60
DP/PN coupler

Machine Benefits

Qualitative Machine Benefits

Electric door drive
Shw uni-scan
Housing design tft shaft
Cable drag steel cover version

Technical Machine Benefits

Electronic handwheel hr 510 // heidenhain kinematics opt
Clamping surface 1600mm // t-slots 22mm // center distance 160mm // speed 5 1/min // torque 10,000 nm // tool pull-in force 20 kn
Hybrid frame x-axis 3000mm // x-axis drive via ball screw diameter 80mm // y-axis drive via ball screw diameter 63mm // drive z-axis via ball screw diameter 63mm
Orthogonal milling head c-axis 1°: liquid-cooled milling head
Swivel range c-axis +-180° // swivel range a-axis +-180°
Torque 637nm // torque 875nm
Opening width of the doors with unispeed 3000 2900mm
Coolant system 950l
Rotary distribution 8-fold 200 bar rotary table
Control on: 20541h // machine on: 16387h // program run: 7491h // spindle hours: 4952h

Extra Information

Two identical units are available.
