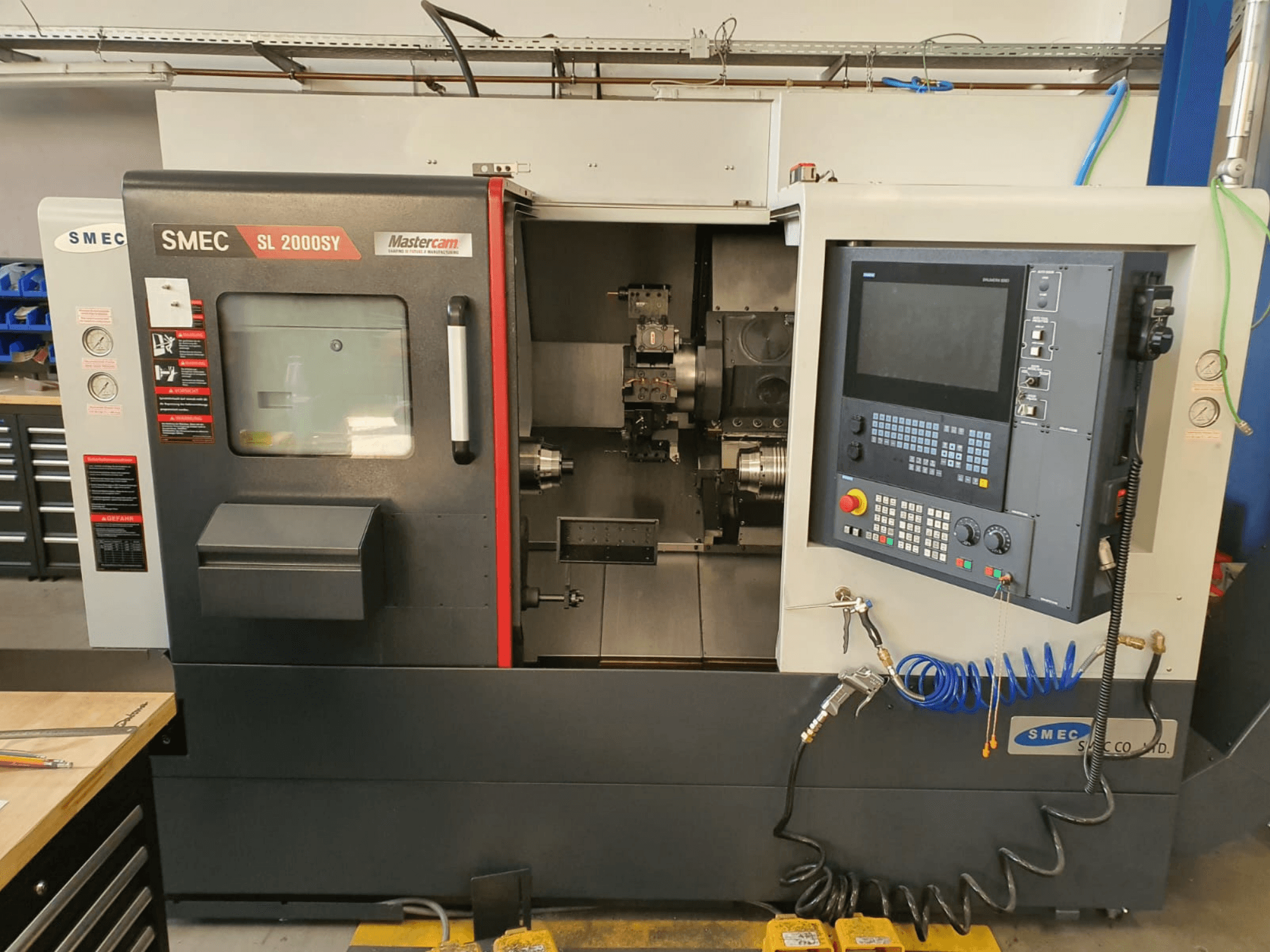

SMEC - SL2000SYDE-TUR-SME-2022-00002

- Control: Siemens SINUMERIK 828D with OPERATE + PPU290 (Touchscreen)

- Swing over bed: 650 mm

- Swing over cross slide: 540 mm

- Max. turning diameter: 395 mm

- Max. machining length: 450 mm

- Y-axis travel: 105 mm (±52.5 mm)

- B-axis travel: 580 mm

- Main Spindle Chuck Diameter: 210 mm (8")

- Main Spindle Nose Norm: A2-6

- Main Spindle Bearing Inner Diameter: 110 mm

- Main Spindle Max. Bar Capacity: 67 mm

- Main Spindle Bore Diameter: 76 mm

- Main Spindle Drive Power: 18.5 / 11 kW

- Main Spindle Max. Torque: 209.5 Nm

- Sub-Spindle Chuck Diameter: 152 mm (6")

- Sub-Spindle Nose Norm: A2-5

- Sub-Spindle Bearing Inner Diameter: 90 mm

- Sub-Spindle Max. Bar Capacity: 36 mm

- Sub-Spindle Bore Diameter: 45 mm

- Sub-Spindle Bore Diameter: 45 mm

- Sub-Spindle Drive Power: 9 / 5.5 kW

- Sub-Spindle Max. Torque: 51.9 Nm

- Sub-Spindle Max. Speed: 6,000 rpm

- Tool Turret Capacity: 12 stations (24-position indexing)

- Tool Holder Type: BMT55

- Driven Tool Drive Power: 5.5 / 3.7 kW

- Driven Tool Max. Speed: 5,000 rpm

- Driven Tool Max. Torque: 35 Nm

- Stationary Tool Cross Section: 25 x 25 mm

- Boring Bar Holder Cross Section: Ø40 mm

- Station-to-Station Index Time: 0.2 sec

- Rapid Feed X-axis: 18 m/min

- Rapid Feed Z-axis: 30 m/min

- Rapid Feed B-axis: 24 m/min

- Rapid Feed Y-axis: 12 m/min

- Slant Bed Angle: 30 degrees

- Coolant System Tank Capacity: 10 bar pressure, 2.2 kW pump

- Hydraulic Tank Capacity: approx. 14 L (35 bar max pressure)

- Voltage / Electrical Connection: 400 V, 50 kVA

- Pneumatic Connection: 6 bar

- Net Weight Chip Conveyor: approx. 1,000 kg

- Net Weight Transformer: approx. 300 kg

- Additional Included Equipment: WTO Tool Holder Package, SAMCHULLY 3-jaw power chucks (8" main, 6" sub), Chip conveyor (side discharge), Oil skimmer with endless belt, Automatic tool setter arm, Part catcher & ejector, Bar feeder interface
