SMEC SL3000LM

Photo Gallery

SMEC - SL3000LMGB-TUR-SME-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
SMEC SL3000LM Lathe

Show in original language

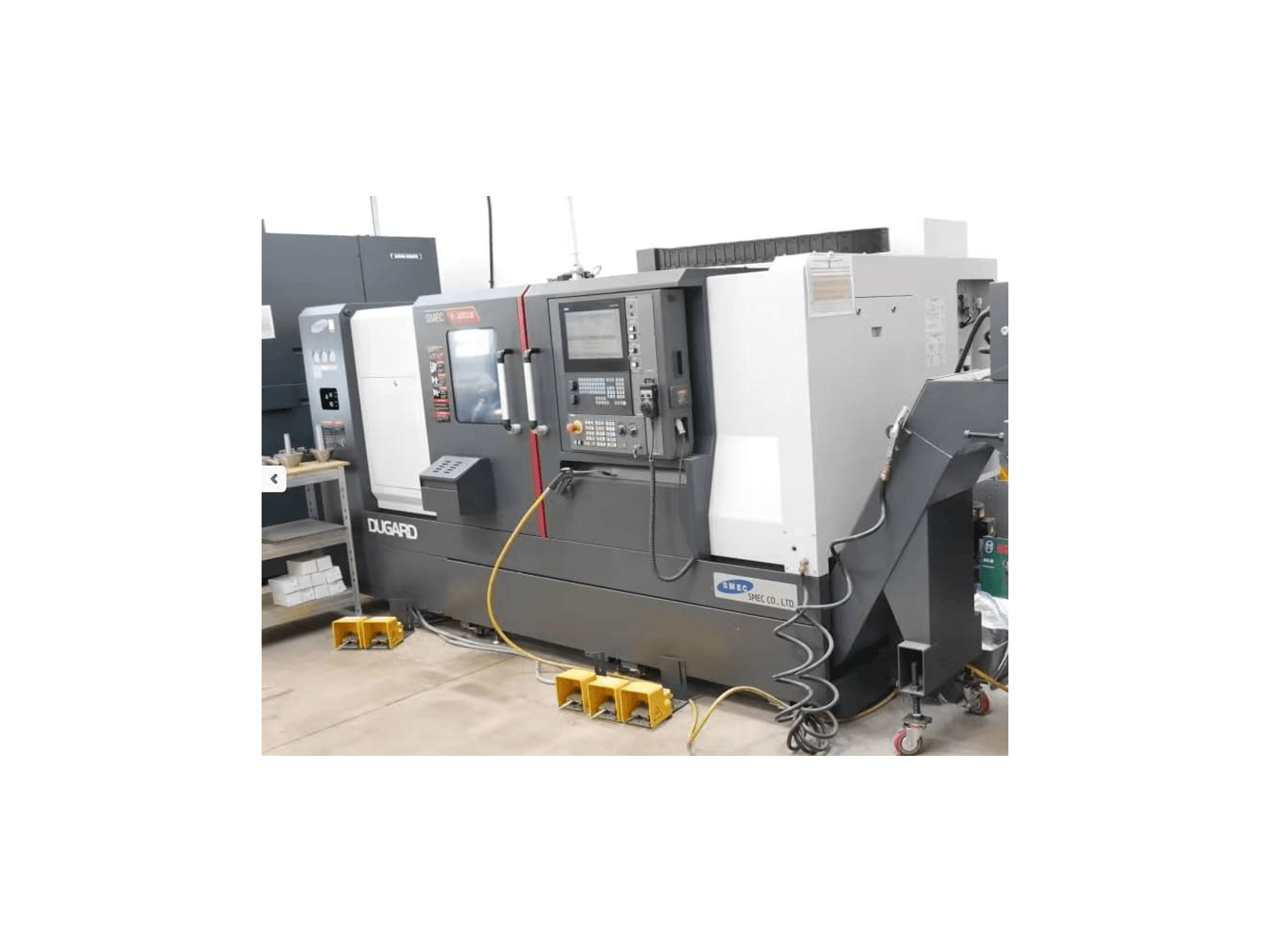

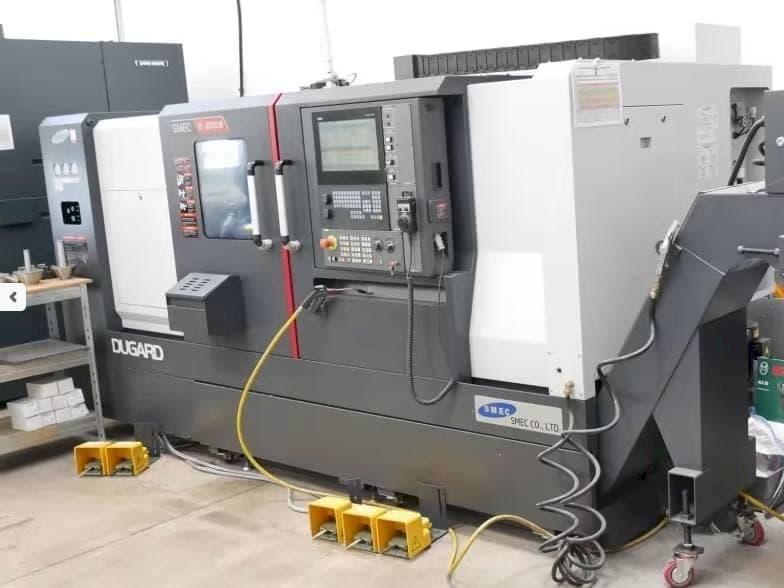

This SMEC SL3000LM Lathe was made in Korea in the year 2019. It has been on for 1641 hours, which 205 are cutting hours. This machine is operated through a SINUMERIK 828D control unit. It can works with a spindle speed up to 3000 rpm. It has additional options: static turning tool holders, boring bar holders, axial live milling holders and radial live milling toolholders.

Overview

brand: SMEC
year: 2019
MODEL: SL3000LM
production hours: 205
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - SMEC SL3000LM

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 828D

Dimensions

Machine Weight: 6500 kg

Movement

X-axis Travel: 245 mm
Z-axis Travel: 1040 mm

Technical Specification

Spindle Speed: 3000 RPM

Additional Information

Additional equipment

4 Static turning tool holders
4 Boring bar holders
2 Axial live milling holders
2 Radial live milling toolholders
Additional hard jaws

Machine Benefits

Qualitative Machine Benefits

Hydraulic steady base & interface
Foot pedals
Signal tower

Technical Machine Benefits

Electronic handwheel included
Max. Turning dia. : 405 mm
Max turning length: 956 mm
Main spindle motor: cont/30min - 18. 5 / 26 kw
Turret 1 rotary speed: 5000 rpm
Turret 1 motor: max cont - 3. 7 / 5. 5 kw
Chuck size - main: samchully hs-12 Ø310 mm power chuck
Tool presetting arm device
Parts catcher
Rittal electrical cabinet cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
