Sodick - AG 600 LIT-EDM-SOD-2011-00002

67,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

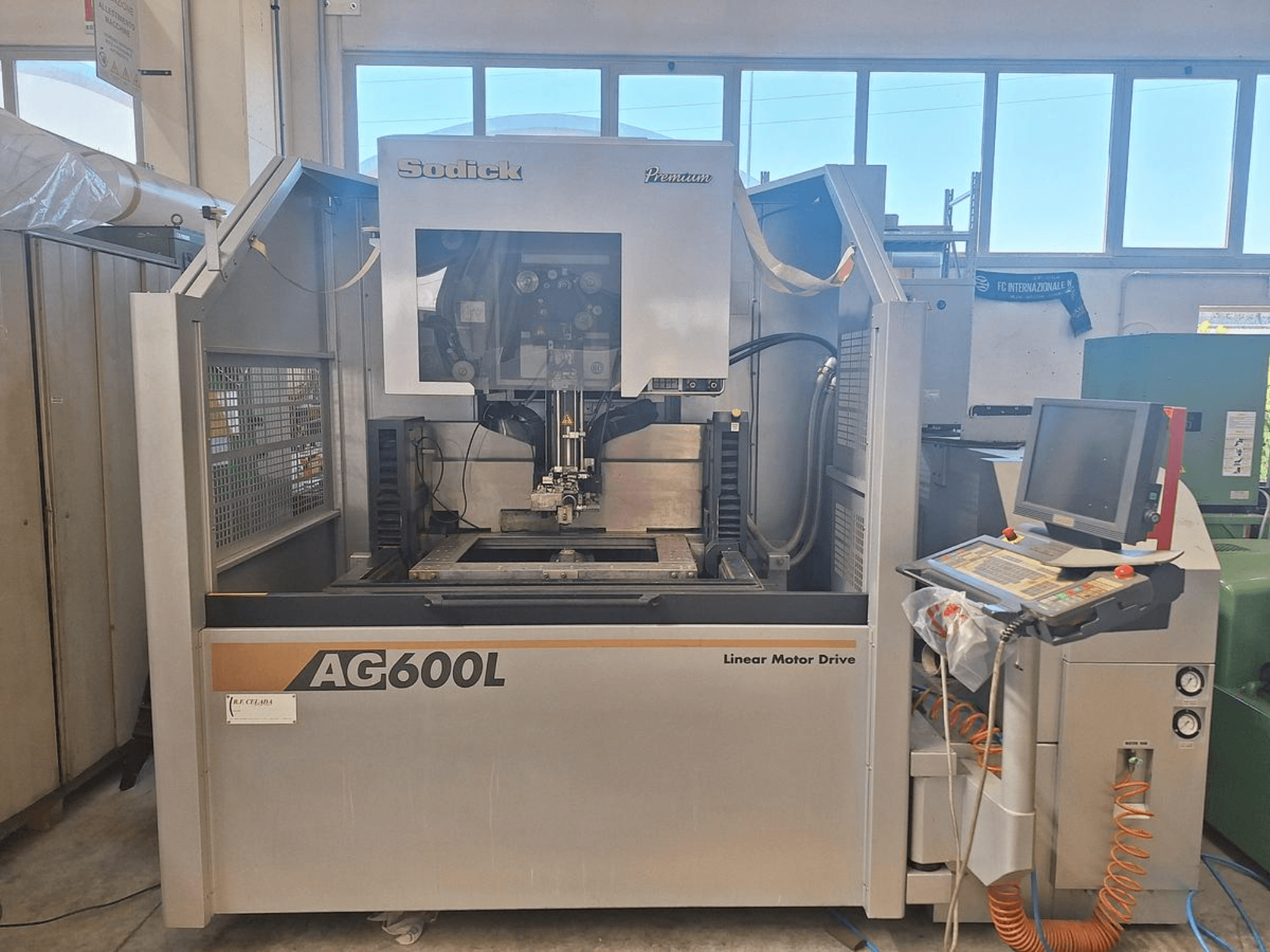

This 5-axis Sodick AG 600 L wire EDM machine was manufactured in 2011. It features a maximum workpiece size of 800 × 570 × 340 mm and a robust table size of 1,050 × 710 mm. With a wire feed speed of 20 mm/s and a dielectric tank capacity of 800 L, this machine is designed for precision and efficiency. If you are looking to get high-quality wire EDM capabilities, consider the Sodick AG 600 L machine we have for sale. Contact us for further details.

Overview

  • brand: Sodick
  • year: 2011
  • MODEL: AG 600 L
  • application type: EDM
  • Location: Italy
  • machine type: Wire EDM Machine
  • control unit brand: SODICK

Technical Information - Sodick AG 600 L

Control Unit

  • Control Brand: SODICK
  • Control Model: LP20WH

Dimensions

  • Machine Height: 2390 mm
  • Machine Length: 2740 mm
  • Machine Weight: 5200 kg
  • Machine Width: 2615 mm
  • Table Length: 1050 mm
  • Table Load: 1000 kg
  • Table Width: 710 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 350 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.1 mm

Additional Information

  • Type of drive: Linear motor drives

  • Power consumption: 10.5 kVA (max. 13 kVA)

  • Maximum workpiece size: 800 × 570 × 340 mm

  • Taper angle: ±25° (at 100 mm workpiece thickness)

  • Wire tension: 3–23 N

  • Wire feed speed: 20 mm/s

  • Dielectric tank weight (empty): 600 kg

  • Filtration system: Replaceable filter (3 internal pressure filters)

  • Deionizer: Ion exchange resin (18 L container)

  • Required floor space: 3,700 × 3,900 mm

  • 60 A generator

  • Super Pika 0.1 Ra finishing circuit board

  • Automatic wire threader/cutter

  • Wire feeder unit for spools up to 50 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
