Sodick - AG60LDE-EDM-SOD-2012-00001

Name: Sodick AG60L
Brand: Sodick
SKU: DE-EDM-SOD-2012-00001
Price: 55000 EUR
Availability: InStock

55,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AG60L - Wire EDM For Sale | gindumac.com

Show in original language

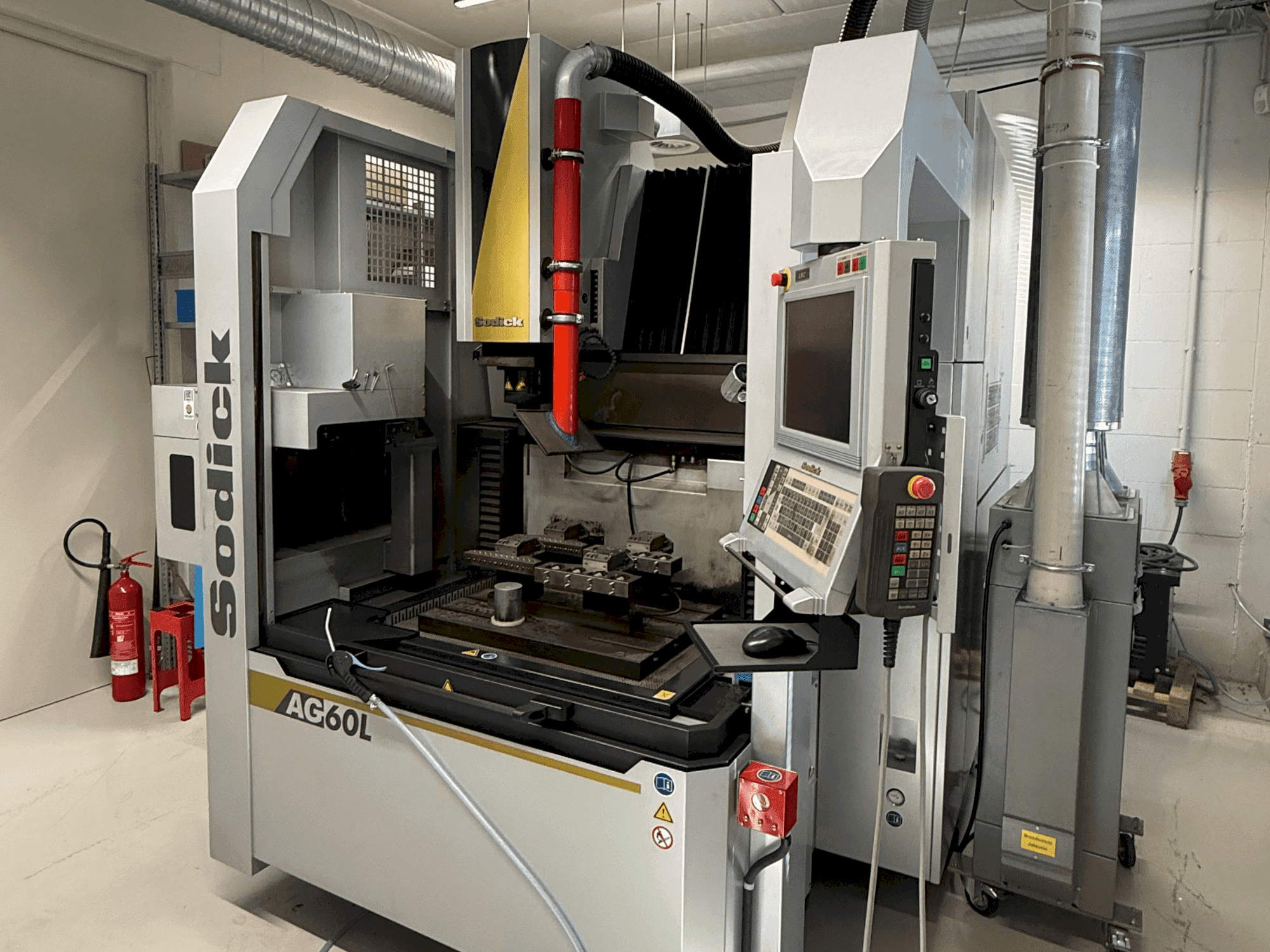

This Sodick AG60L wire EDM machine was manufactured in 2012. It features a ceramic table measuring 750 x 550 mm and can handle a maximum workpiece weight of 1500 kg. The machine includes a linear motor, glass scales, and a remote control for enhanced precision and ease of use. Consider the opportunity to buy this Sodick AG60L wire EDM machine. Contact us for more information about this machine.

Overview

brand: Sodick
year: 2012
MODEL: AG60L
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - Sodick AG60L

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 420 MM
Z-AXIS Movement: 370 MM

Additional Equipment

- Replaceable paper filter / SEC-10 (C-axis) / SGF2 Nano Wear Unit / Fire Extinguisher / TMM3 Power Generator / Dielectric Cooling Unit / 15" TFT Touch Screen / Lowerable Work Container
- Linear motor (X-, Y-, Z-axes) / Glass scales in X-, Y-, Z-axes / Ceramic work area / Remote control
- Accessories include electrodes (graphite, tungsten, and copper), electrode holders, and jigs with documentation. / Some electrode holders with electrodes are still in the machine.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 1852 x 2825 x 2570 mm / machine weight: 5350 kg
- - Max. Workpiece weight: 1500 kg / ceramic table dimensions (w x d): 750 x 550 mm
- - Floor-table distance: 850 mm / max. Electrode weight: 50 kg
- - Dielectric fluid level (min-max): 150 - 400 mm / dielectric capacity: 465 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
