Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Sodick - AQ 600LIT-EDM-SOD-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Sodick AQ 600L - Wire EDM For Sale | gindumac.com

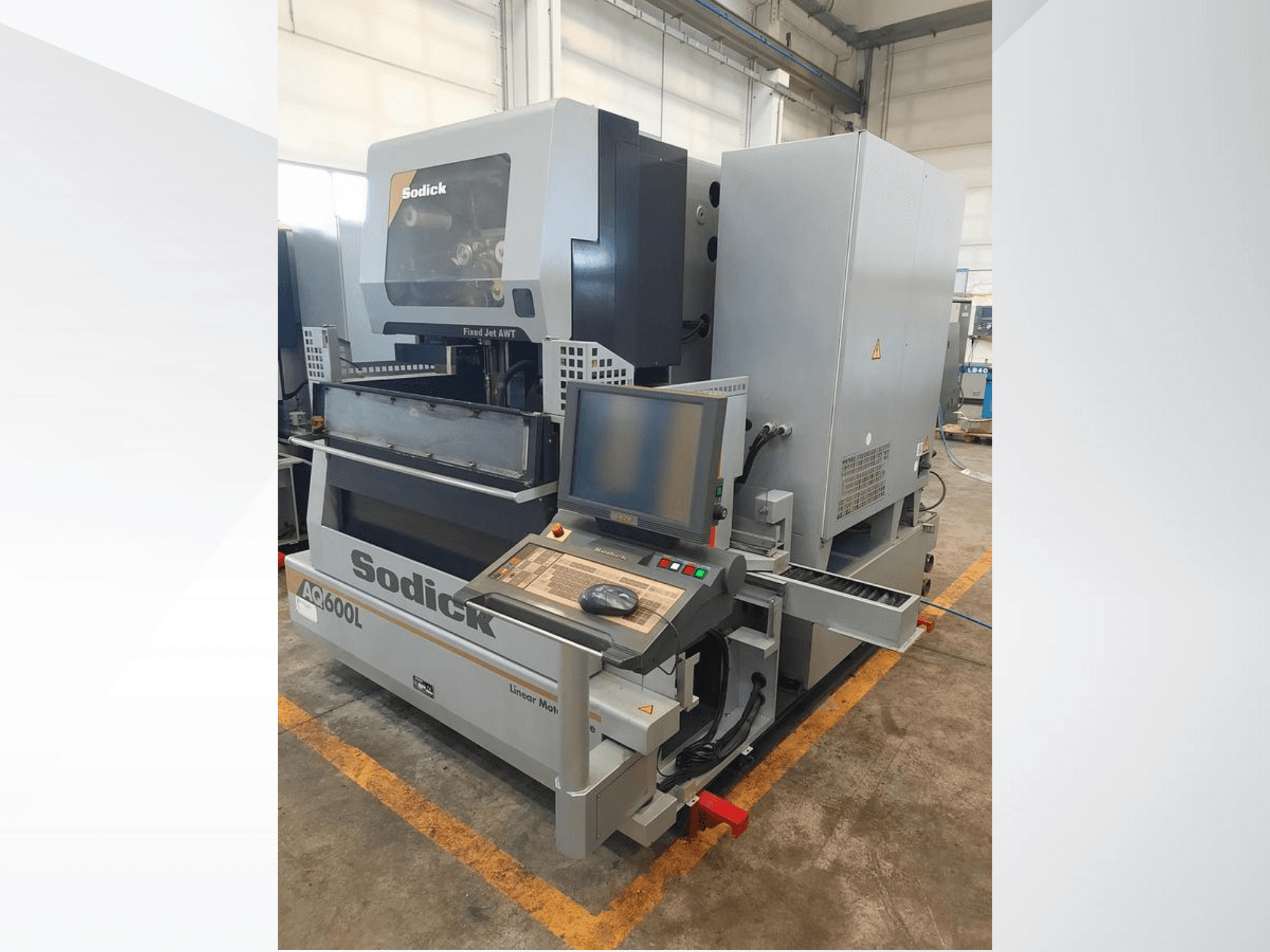

This 5-axis Sodick AQ 600L wire EDM machine was manufactured in 2011. It features a large workzone with internal tank dimensions of 1135 × 890 mm, capable of handling workpieces up to 930 kg and 300 mm in height. It supports wire diameters from 0.15 to 0.30 mm and offers taper cutting of ±20° on 100 mm thickness. If you are looking to get high-quality EDM capabilities, consider the Sodick AQ 600L machine we have for sale. Contact us for more information.
Overview
- brand: Sodick
- year: 2011
- MODEL: AQ 600L
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
Technical Information - Sodick AQ 600L
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 300 mm
Additional Information
Internal tank dimensions: 1135 × 890 mm
Max workpiece height: 300 mm
Max workpiece weight: 930 kg
U-axis: 80 mm
V-axis: 80 mm
Taper cutting: ±20° on 100 mm thickness
Wire System:
Wire diameter: 0.15 – 0.30 mm
Max wire speed: 420 mm/sec
Wire tension: 300 – 2300 g
Wire spool capacity: 8 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
