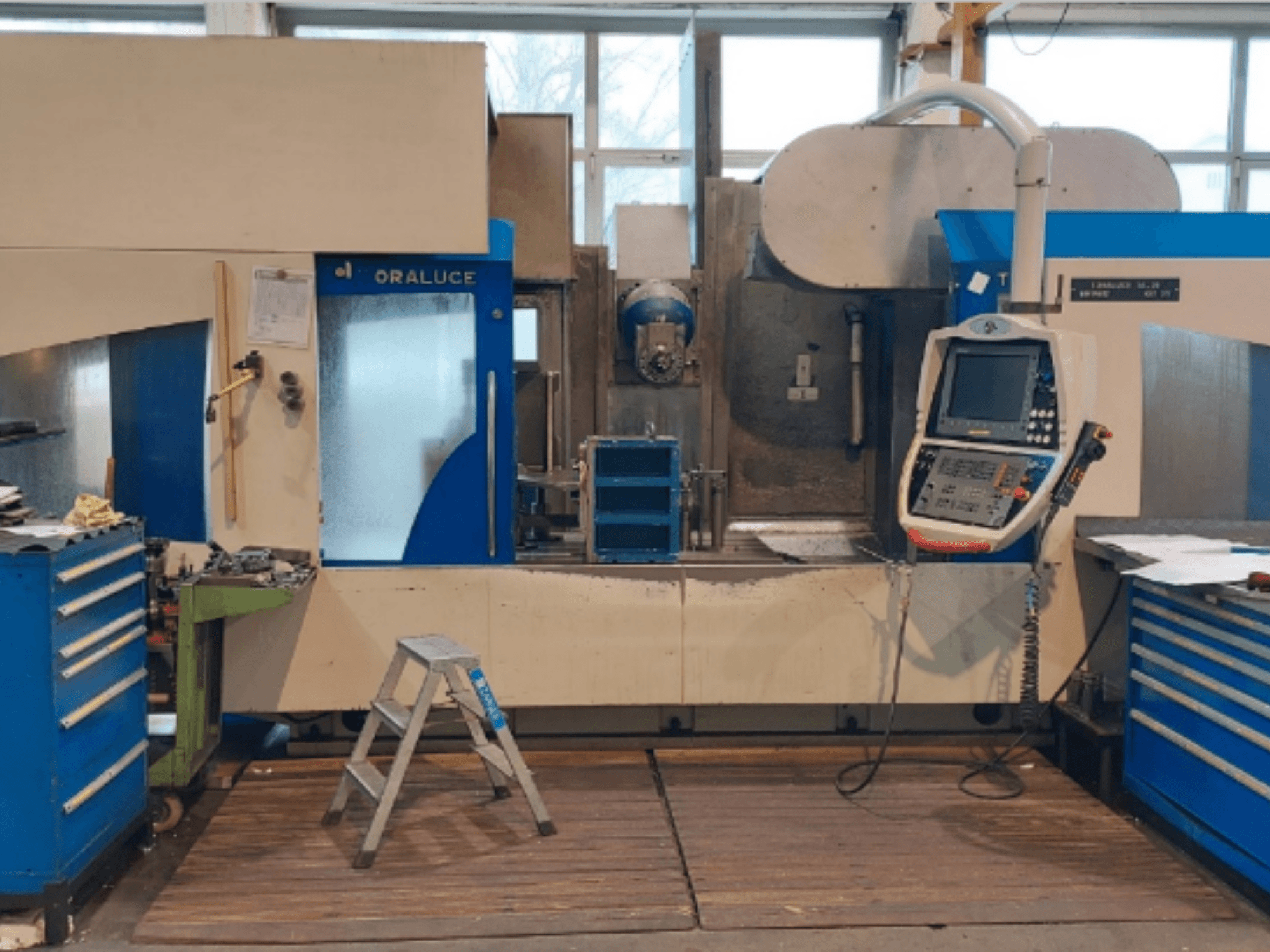

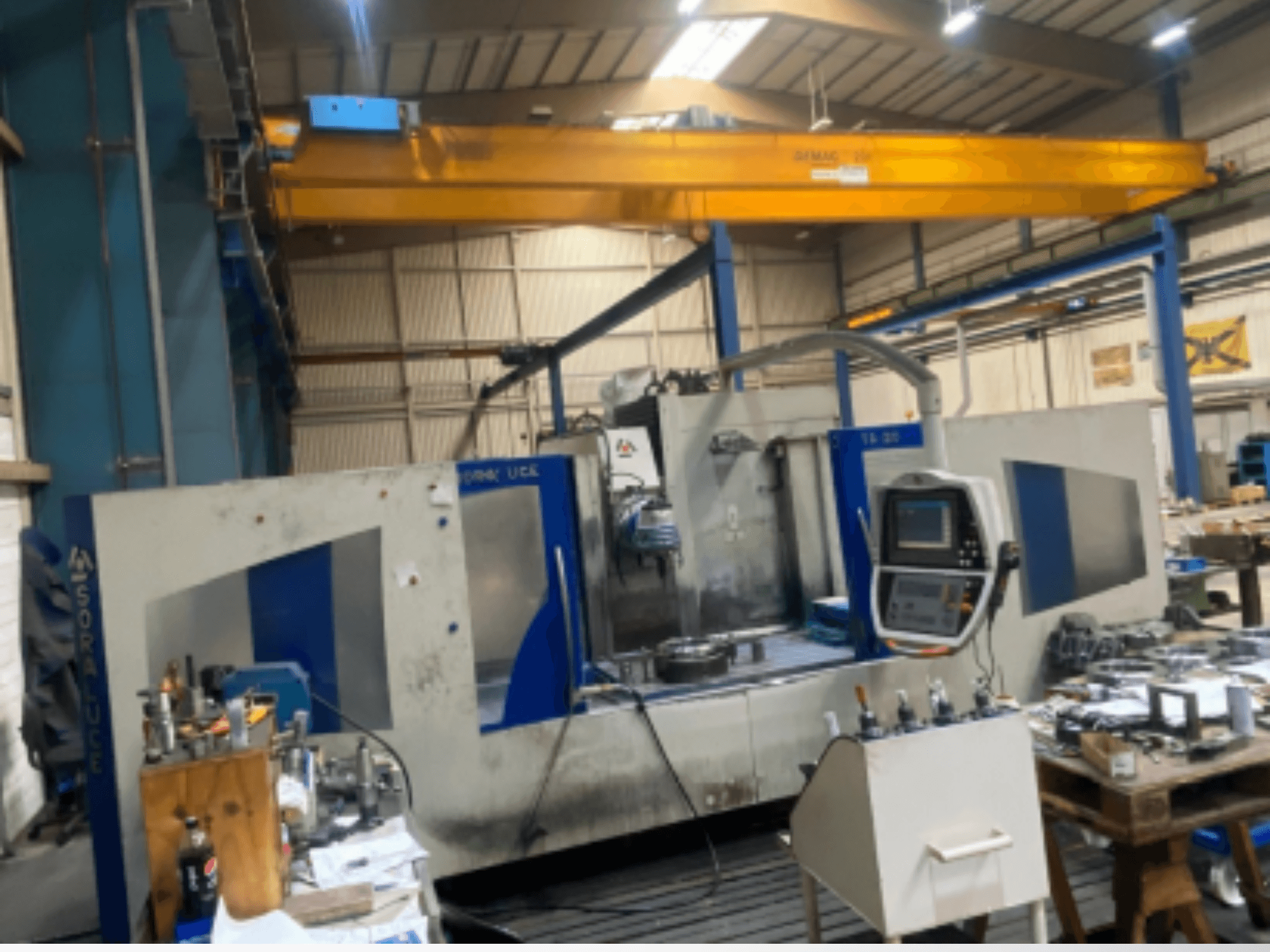

This 3-axis Soraluce TA-20 bed type milling machine was manufactured in 2005. It features a substantial table size of 2,000 x 800 mm with a maximum table load of 4,000 kg. The machine offers impressive X-axis travel of 2,000 mm and rapid traverse speeds of 25,000 mm/min. If you are looking to get high-quality milling capabilities, consider the Soraluce TA-20 machine we have for sale. Contact us for further details.
Overview
- brand: Soraluce
- year: 2005
- MODEL: TA-20
- application type: Milling
- Location: Spain
- machine type: Bed Type Milling Machine
Technical Information - Soraluce TA-20
Dimensions
- Machine Weight: 11000 kg
- Table Load: 4000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
- Taper Size: ISO 50
Additional Information
Table dimensions: 2,000 x 800 mm
Milling head: Automatic 90º/45º, 2.5º x 2.5º
Rapid traverse (X/Y/Z): 25,000 mm/min
Electronic handwheel: HEIDENHAIN HR 410
Through-spindle coolant (IKZ): 8 – 10 bar (2 pumps)
Tool changer (ATC): 20 stations
Linear guides: INA RUE 45
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
