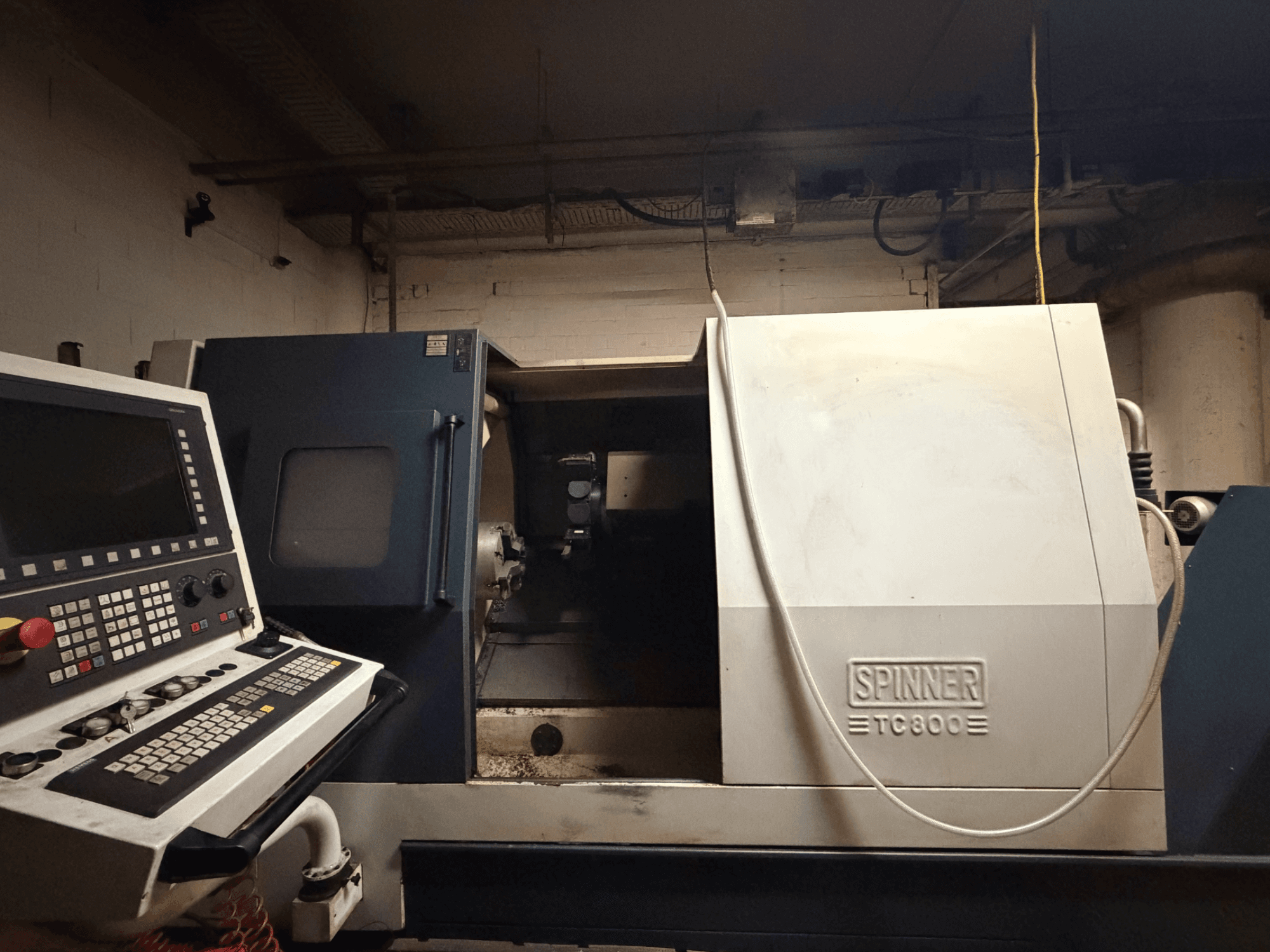

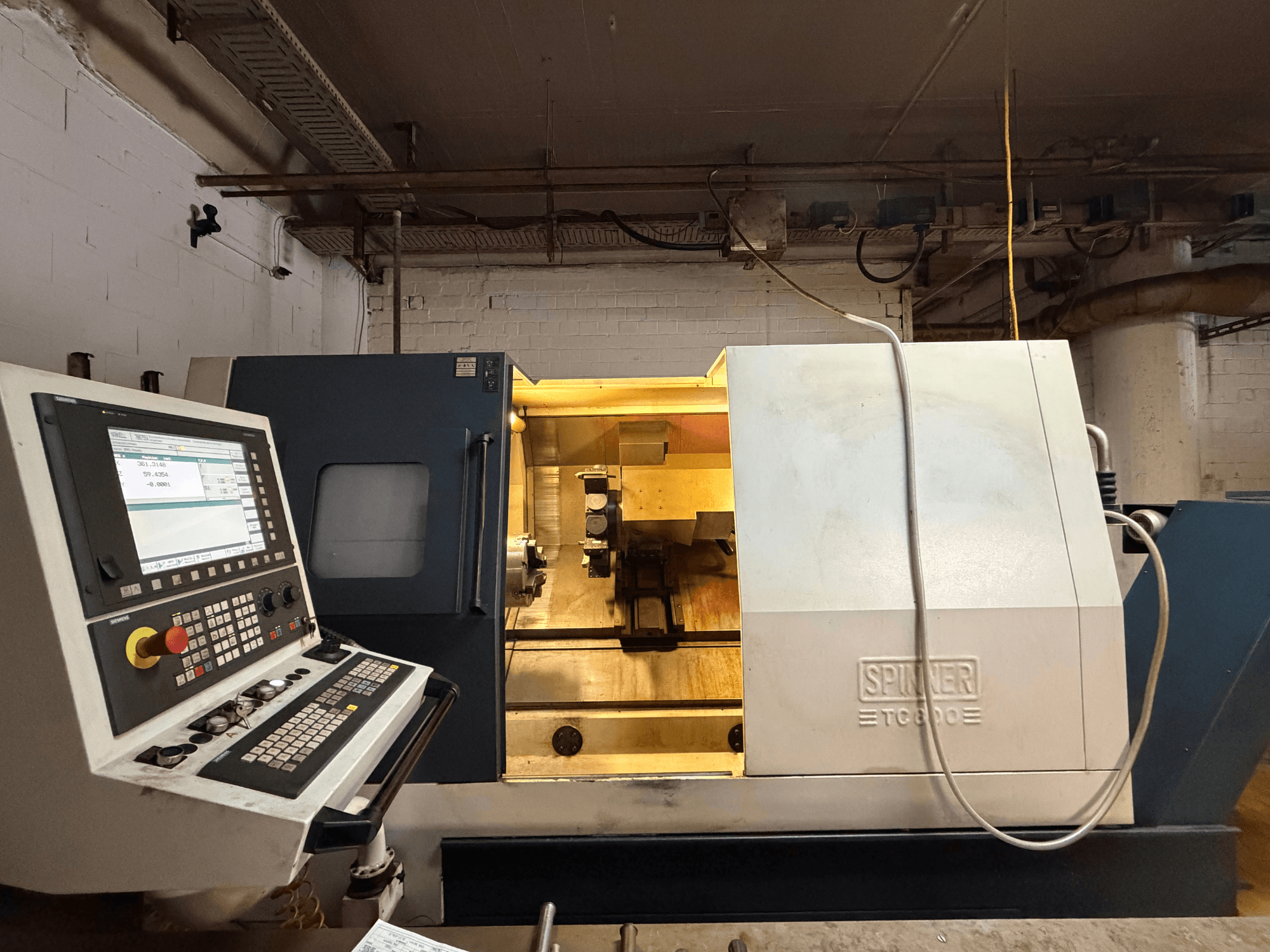

SPINNER - TC 800 110 MCYDE-TUR-SPI-2009-00001

Control: Siemens 840D Solution Line

Rapid traverse X-axis: approx. 18 m/min

Rapid traverse Z-axis: approx. 24 m/min

Main spindle speed: up to approx. 4000 rpm

Main spindle power: approx. 24 kW (100%)

Main spindle power: approx. 33 kW (40%)

Spindle nose: A11

Bar capacity: approx. 77 mm

Counter spindle: Yes

Counter spindle speed: up to approx. 5000 rpm

Counter spindle power: approx. 15 kW

Counter spindle spindle nose: A6

Counter spindle bar capacity: approx. 52 mm

Tool turret type: VDI 50

Number of tool stations: 12

Driven tools: Yes

Number of driven tools: up to 12

Driven tool speed: up to approx. 4000 rpm

Maximum turning diameter: approx. 500 mm

Maximum swing over bed: approx. 800 mm

Maximum turning length: approx. 800 mm

Tailstock: Yes

Tailstock taper: MK4

Tailstock stroke: approx. 100 mm

Tailstock force: approx. 8500 N

Voltage: 400 V

Frequency: 50/60 Hz

Control voltage: 24 V DC

Compressed air pressure: approx. 6–10 bar

Hydraulic pressure: approx. 70 bar

Chip conveyor: Yes

Coolant system: Yes

Hydraulic unit: Yes

Electrical cabinet: Yes

Radial turret

No quill

Barely used, approximately 1,000 operating hours
