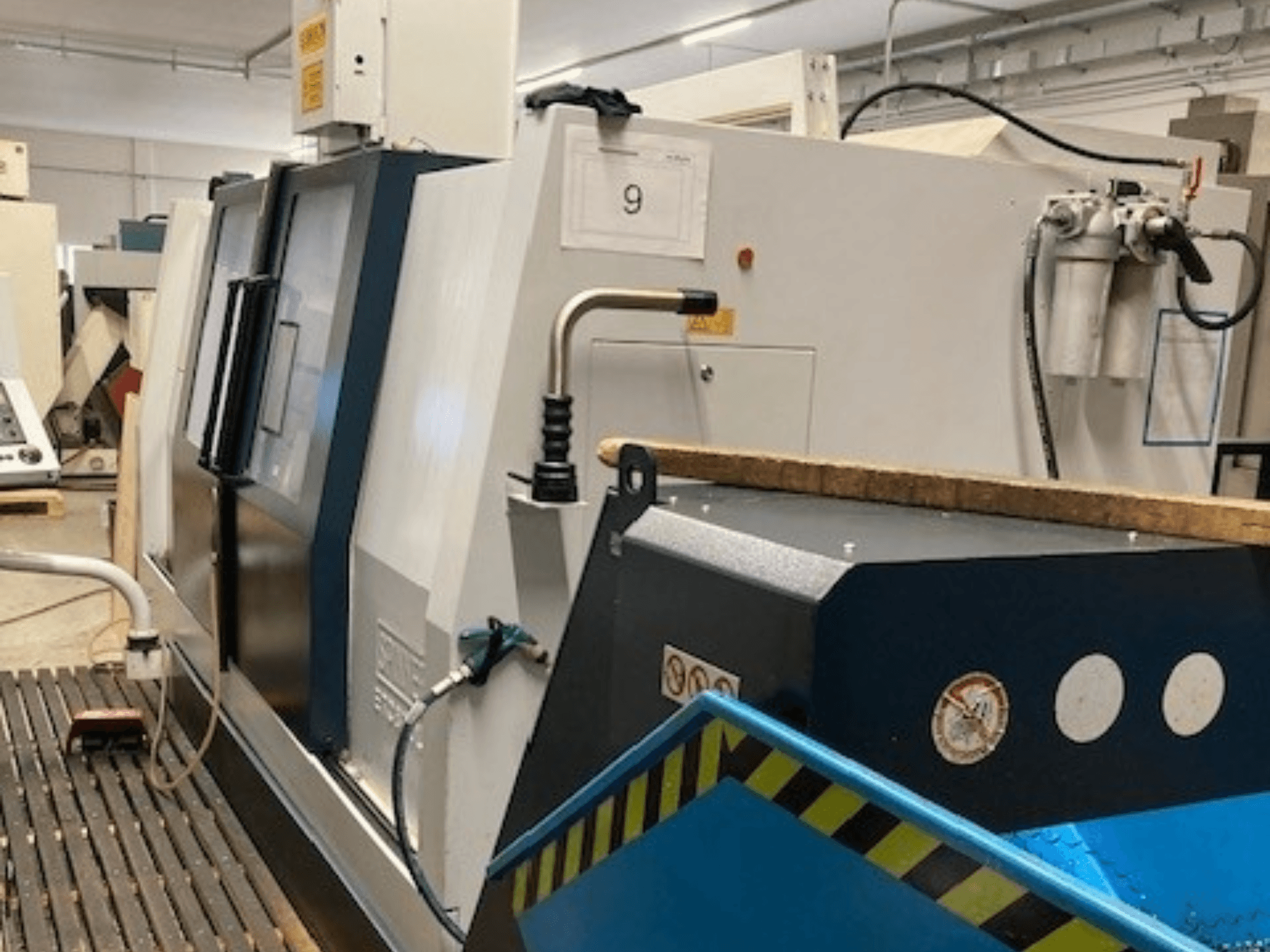

This 3-axis SPINNER TC800L 110 was manufactured in 2023. The machine is fully functional and includes a steady rest, tailstock, chip conveyor, and oil mist extraction system. It operates on a 3-phase power supply at 400 V. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800L 110 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2023
- MODEL: TC800L 110
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - SPINNER TC800L 110
Dimensions
- Machine Height: 2115 mm
- Machine Length: 5750 mm
- Machine Weight: 8500 kg
- Machine Width: 1980 mm
Movement
- Number of Axes: 5
- X-axis Travel: 360 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 1580 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 29.5 kW
- Spindle Speed: 5000 RPM
Additional Information
Status/condition
Machine powered on and still in operation
Fully functional; steady rest requires sensor bang-up replacement
Configuration and capacities
Turret without AgW (adjustable power supply)
Turret type: axial/radial
Number of tool stations: 12x VDI50 (option: 16x VDI40 or 12x BMT65)
Tool holder type: VDI50 (option: VDI40/BMT65)
Number of driven tools: 12 (option)
Driven tool speed: 4000 rpm
Driven tool power (S1/S3): 2.2 / 5.5 kW
Driven tool torque (S1/S3): 17.5 / 43 Nm (axial), 14 / 35 Nm (radial)
Maximum turning diameter: 500 mm
Maximum swing diameter: 800 mm
Turning length: 800 mm / 1580 mm (L version)
Distance between centers: 800 mm / 1580 mm
Maximum workpiece weight: 800 kg
Axes
Rapid traverse X/Z: 15 / 24 m/min
Spindles
Number of spindles: 3
Main spindle
Nose: A11
Bar capacity: 110 mm
Torque (100% / 40%): 175 / 235 Nm
Torque gear stage 2: 700 / 939 Nm
Sub spindle (option)
Nose: A6
Bar capacity: 52 mm
Chuck size: 210 mm
Power (S1/S6): 15 / 19 kW
Torque (S1/S6): 95 / 121 Nm
Tailstock (if equipped)
Pinole diameter: 110 mm
Taper: MK4
Stroke: 100 mm
Thrust force: 850 daN
Fluids and tanks
Coolant tank capacity: approx. 235 l (up to 270 l in L-version)
Hydraulic tank: approx. 31 l
Central lubrication tank: approx. 2–3 l
Electrical data
Electrical connection: 3-phase 400 V + N + PE
Frequency: 50/60 Hz (also stated as 50 Hz)
Rated current: 44 A
Fuse protection current: 50 A
Rated current protection: 63 A
Connected load: approx. 40 kVA (up to 50 kVA with 2 spindles)
Protection class: BA 3 (Chap. 3.4.5)
Network type: TN network with grounded neutral point
Recommended protection: without FI switch (recommended)
Additional equipment
Steady rest (note: sensor bang-up replacement needed)
Tailstock
Chip conveyor
Oil mist extraction system
Possibly chuck and tool holder (to be confirmed)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
