➤ Used SPINNER TTC300-52 SMMCY Lathe

Show in original language

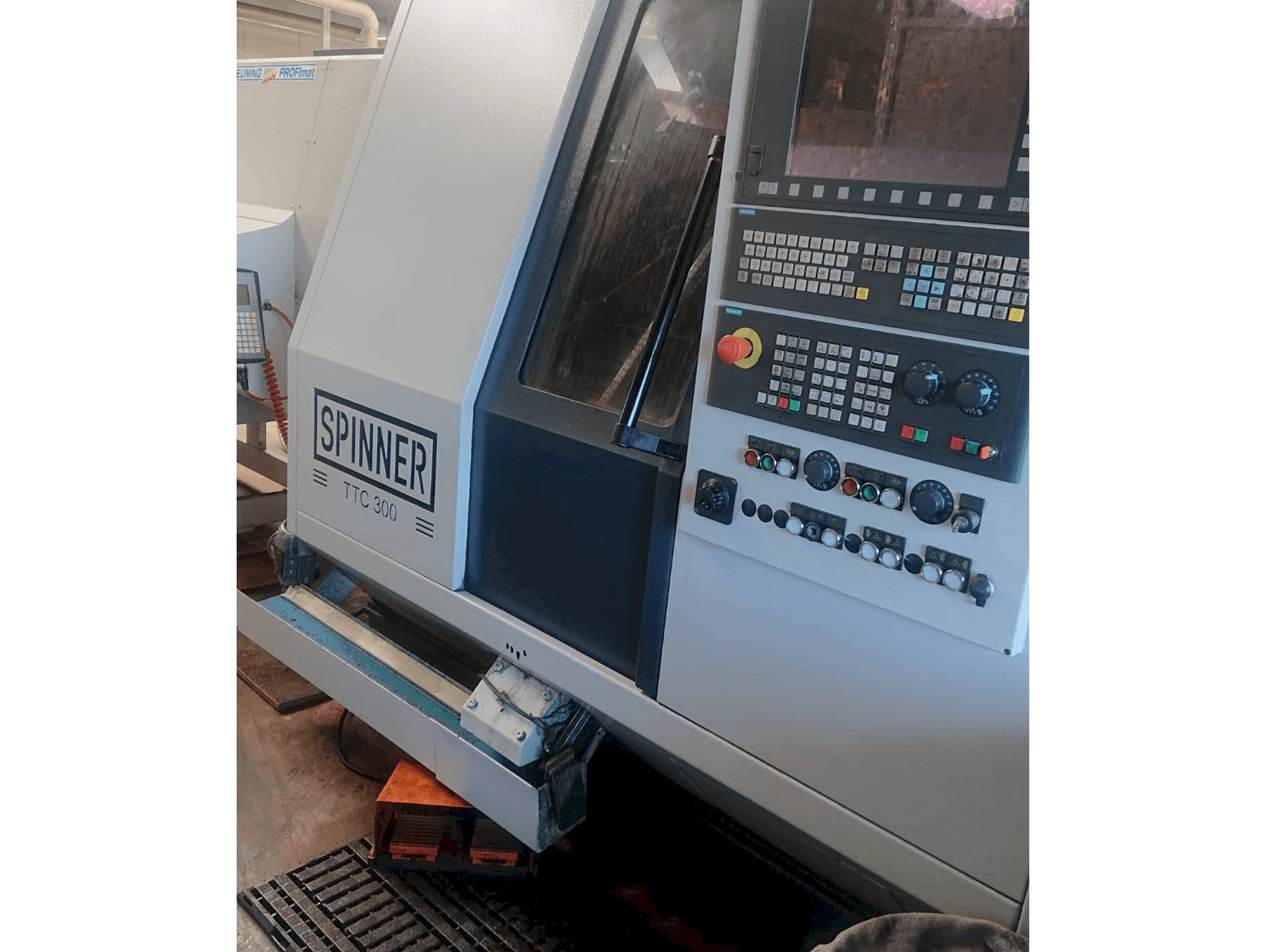

This Spinner TTC300-52 SMMCY Lathe was manufactured in the year 2015 in Germany. It is equipped with a SIEMENS Sinumerik control unit. The machine has a spindle speed of 5000 to 7000 rpm.

Overview

brand: SPINNER
year: 2015
MODEL: TTC300-52 SMMCY
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - SPINNER TTC300-52 SMMCY

General Data

Measurements width: 2500 mm
Measurements depth: 1900 mm
Measurements height: 2165 mm
Machine weight: 4600 kg

Control Unit

Model: Sinumerik
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 5000-7000 1/MIN
Spindle motor power: 15-19 kw

Movement

X-AXIS Movement: 180 mm
Z-AXIS Movement: 450 mm

Media

Main electronic connection: 400 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swing diameter: 200-400 mm
- - Max turning length: 400 mm
- - Travel x1/x2/z 180/110/450
- - Chuck size: 210 mm
- - Turning torque 95-121 nm
- - Turning spindle 2: chuck size: 130 mm
- - Spindle power 6-8. 5 kw
- - Torque 49-68 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
