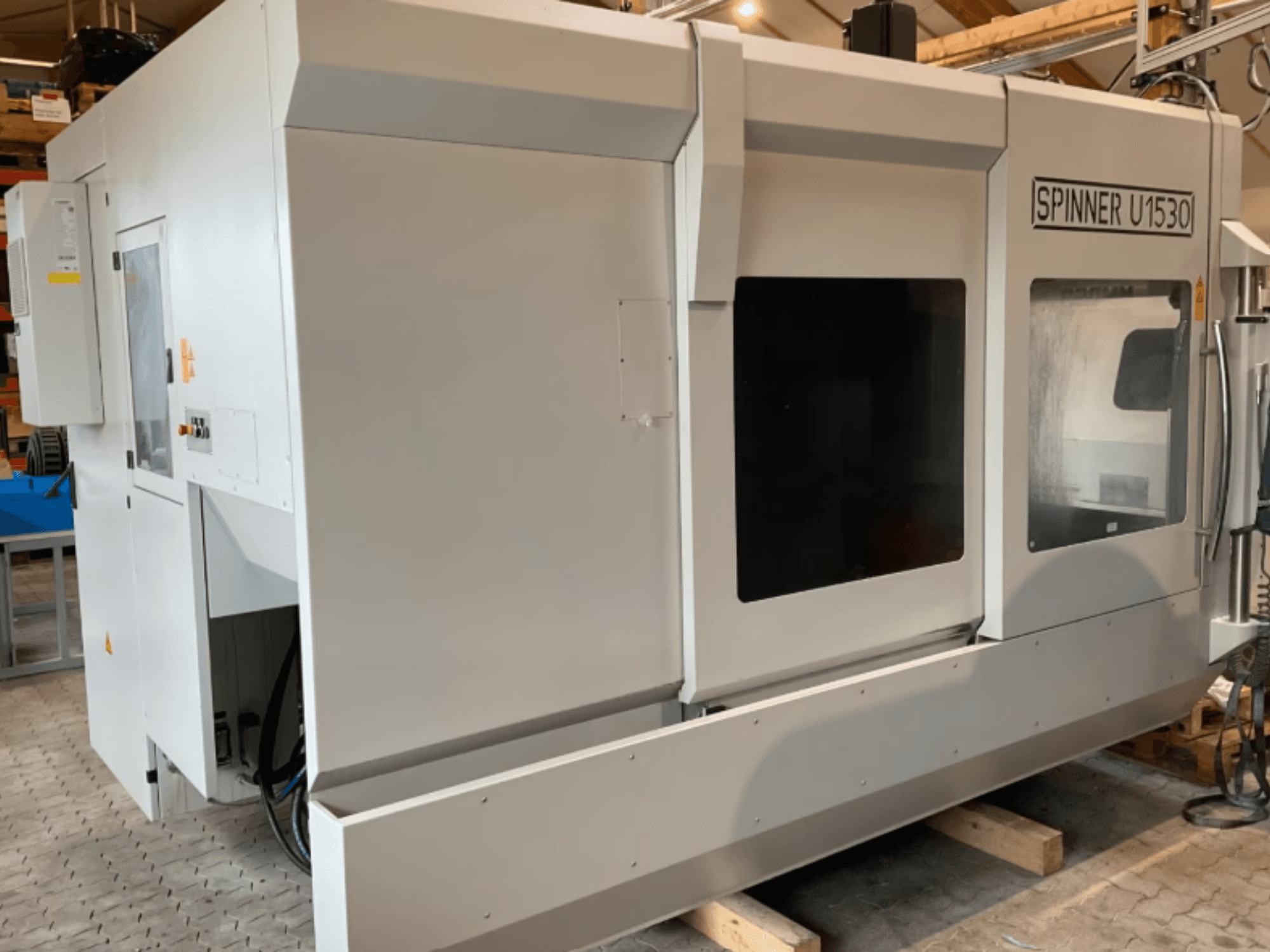

SPINNER - U5-1530DE-MIL-SPI-2021-00001

- Number of Axes: 5-axis simultaneous

- Table Configuration: Fixed rigid table section (Starrtisch U-1530) combined with a 2-axis rotary/tilt table (SPRT650 / Version T)

- Spindle Speed: up to 12,000 rpm (Advanced spindle option)

- Spindle Taper: SK40

- Tool Magazine Capacity: 54 positions

- Short circuit power of the grid (SK-Netz): >= 1.6 MVA (100xPnE/R-Modul in kW)

- Connected load: 26 kVA

- Nominal voltage: 3~ 400 V + N + PE

- Nominal current of protective device (In): 50 A

- Operational rated current (Ib): 42 A

- Grid frequency: 50 / 60 Hz

- Grid type, connection type: TN-Netz (5-wire) with grounded and loadable star point

- Residual Current Circuit Breaker (RCCB): Without FI-Schalter (recommended)

- Control System: SIEMENS 840D-SPIOS V1 (SINUMERIK 840D sl sl SPIOS V2 platform)

- Measuring System: X/Y/Z linear scales (U-1530 Advanced) paired with a BLUM 3D workpiece touch probe and B/C axis measuring system

- Coolant Through Spindle (IKZ): Yes, featuring a high-pressure CTS unit preparation and high-pressure tank (BAZ 70 bar)

- Rotary Axis Braking: Hydraulic brakes on B + C axes with 2-way rotary union feedthrough (70/7 bar)

- Ambient Temperature Range: 15°C < T < 35°C

- Relative Humidity: <= 70% at 20°C

- Total Machine Weight: ~10,500 kg (Base machine) + ~377 kg (Chip conveyor) + 170 Liters coolant volume

- First language: German

- Second language: English

- Multi-functional handheld control terminal: Included

- Shopmill: Included

- 4-axis machining rotary axis: Included

- 3D-Simulation: Included

- Remaining material recognition: Included

- Simultaneous recording of machining: Included

- Automatic shutdown functions: Included

- Kinematics measurement: Included

- Advanced Surface: Included

- Spline Interpolation: Included

- 2G-Byte additional memory: Included

- Touch probe system functions: Included

- Coolant system + U-chip conveyor U1530: Included

- Blow air at the spindle head: Included

- Compressed air through milling spindle: Included

- Rinse gun: Included

- Robot door, right: Included

- UNIROB-V2021-Interface Basis: Included

- Digital documentation: German

- Eyelets for crane unloading: Included

- Standard painting: Included

- Electrical execution: EUROPA-ST

- System Hydraulic Pressure: 68 bar

- Clamping Hydraulic Pressure (4th/5th Axis): 35 bar

- Pneumatic Operating Pressure: 6 bar

- Compressed Air Consumption: 180 norm liters/min

- Maximum Noise Emission: 73 dB(A) at normal operation
