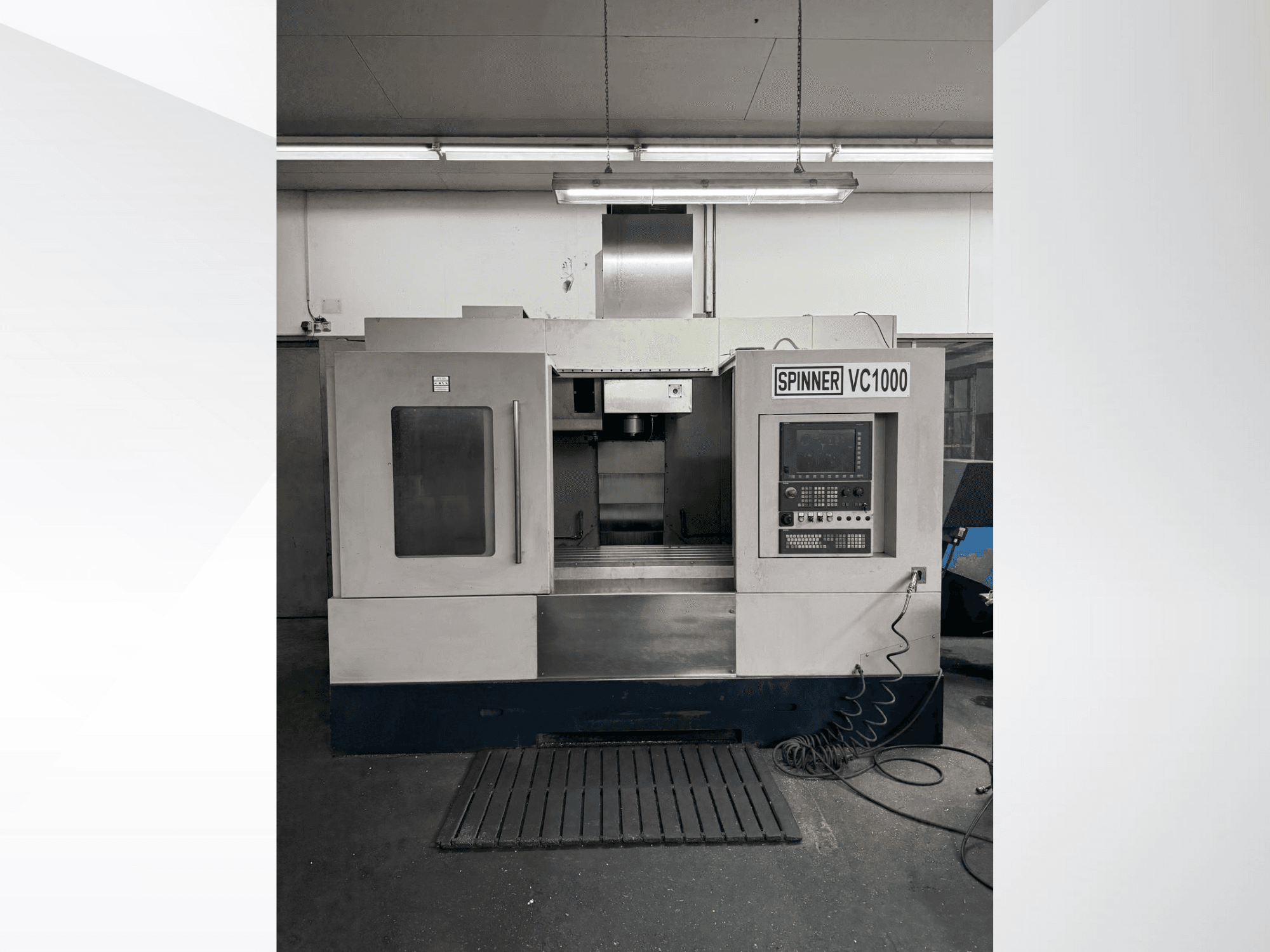

This 3-axis SPINNER VC 1000 was manufactured in 2011. It features a Siemens 840DE-SolutionLine control, a 15" color screen, and a high-speed milling spindle up to 12,000 rpm. The machine offers X=1000 mm, Y=650 mm, Z=650 mm travels, and a rapid tool changer for 24 tools. Ideal for precise and efficient machining. If you are looking to get high-quality milling capabilities consider the SPINNER VC 1000 machine we have for sale. Contact us for more information.
Overview
- brand: SPINNER
- year: 2011
- MODEL: VC 1000
- production hours: 16051
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - SPINNER VC 1000
Movement
- X-axis Travel: 1000 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 650 mm
Additional Information
Milling spindle up to 12000 rpm with "in-line" direct drive
Travels: X=1000 mm, Y=650 mm, Z=650 mm
Linear guides in all three axes
Tool taper size 40 according to DIN 69871-A
High-speed automatic tool changer for 24 tools
Spindle taper blow-out device
Full splash guard enclosure
Work area light
Chip conveyor VC 1000-HS
Coolant transfer to tool according to DIN 69871A
High-pressure pump and gravity paper filter with capacitive level switch
Tool holder SK40 for TC 50 touch probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
