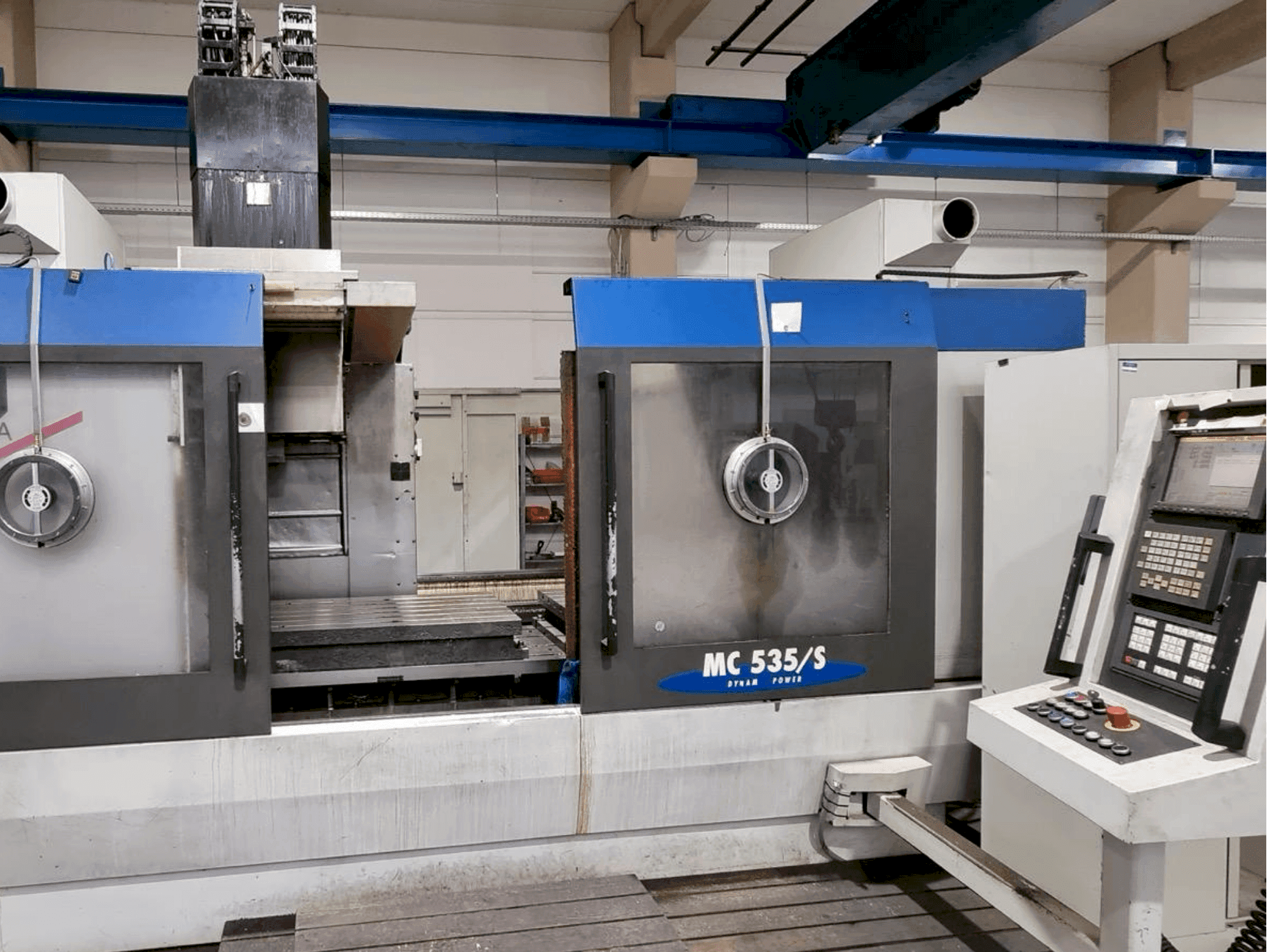

Front view of STAMA MC 535  machine

STAMA MC 535

STAMA - MC 535

2001

43,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Stama MC 535 Vertical Machining center was manufactured in the year 2001 in Germany. It is equipped with 4 t-slots and operates with 3-axis. The max. workpiece weight is 3000 kg and the max. spindle speed 8000 rpm. The machine is in top condition and fully operational with currently 18,485 operating hours. It will be sold because of replacement with a new and larger one. For the moment it is not connected but upon agreement, on-site testing is possible.

Overview

  • brand: STAMA
  • year: 2001
  • MODEL: MC 535
  • production hours: 18485
  • application type: Milling
  • Location: Slovenia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: SI-MIL-STA-2001-00001

Technical Information

General Data

  • Measurements width: 4200 mm
  • Measurements depth: 7600 mm
  • Measurements height: 3700 mm
  • Machine weight: 12000 kg

Control Unit

  • Brand: FANUC
  • Model: 18 MBi

Main drive

  • Spindle speed range: 8000 rpm 1/MIN

Movement

  • X-AXIS Movement: 2200 MM
  • X-AXIS Rapid traverse: 10000 mm/min
  • Y-AXIS Movement: 500 MM
  • Y-AXIS Rapid traverse: 10000 mm/min
  • Z-AXIS Movement: 510 MM
  • Z-AXIS Rapid traverse: 10000 mm/min

Workpiece

  • Workpiece weight: 3000 KG

Table

  • Outer length: 3100 mm
  • Outer width: 520 mm
  • TSlots size: 18H12
  • Number of tslots: 4

Additional Information

    Extra information

    • - Slot spacing: 125/150 - Table height above floor (mm): 858 - Swivel capability: no - Table spindle nose min (mm): 250 - Table spindle nose max (mm): 760

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
