STAMA - MC526DE-MIL-STA-2008-00001

49,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

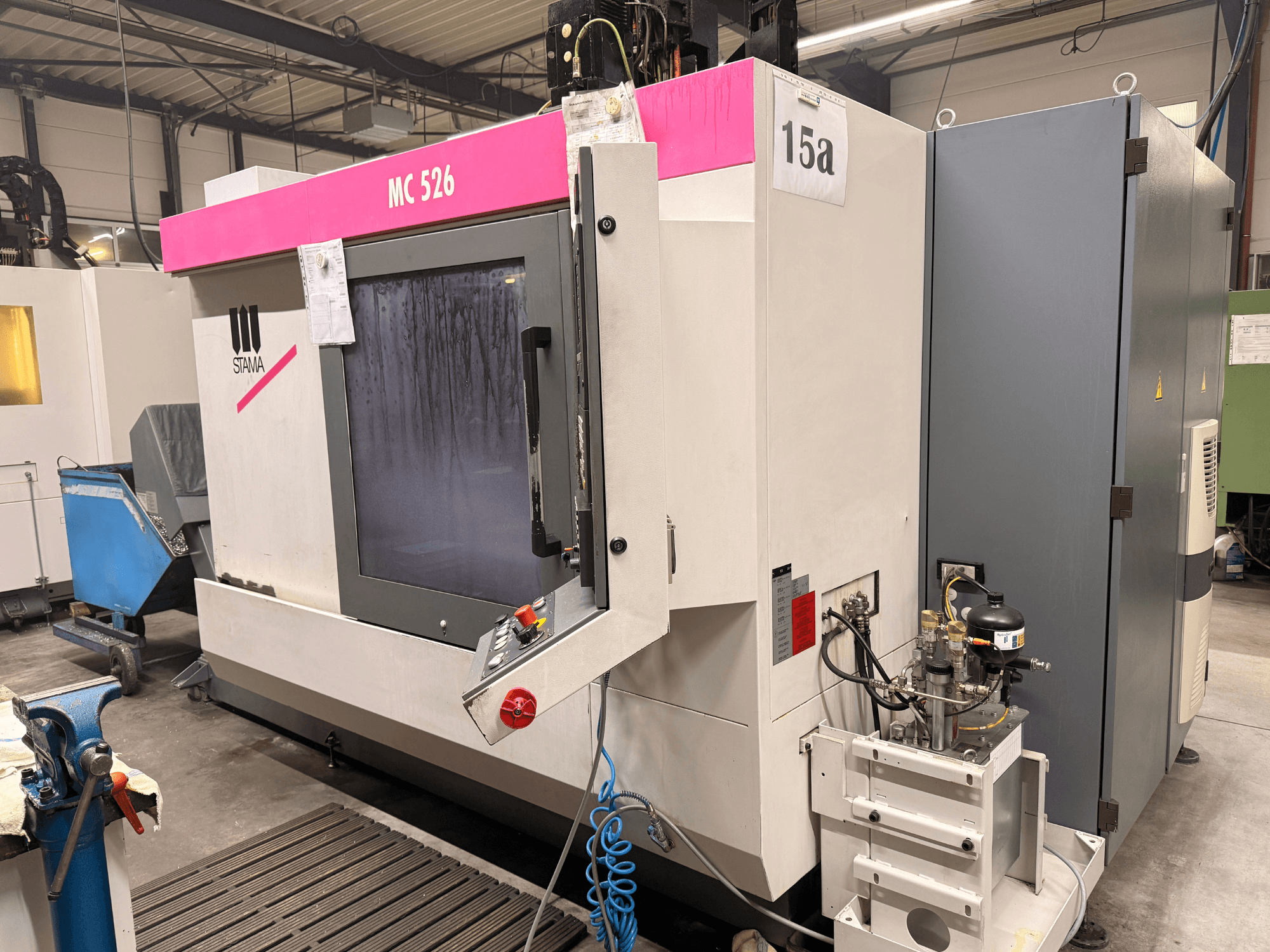

This STAMA MC526 was manufactured in 2007. It features a 40-tool magazine, NC swivel table, chip conveyor, belt filter system, and an internal coolant supply via the spindle. Additional amenities include a high-pressure system, Renishaw probe, and an extraction system. Consider the opportunity to buy this STAMA MC526 vertical machining centre. Contact us for more information.

Overview

  • brand: STAMA
  • year: 2007
  • MODEL: MC526
  • production hours: 82265
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - STAMA MC526

Dimensions

  • Table Length: 1400 mm
  • Table Load: 1500 kg
  • Table Width: 600 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1000 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 360 mm

Technical Specification

  • Max. Tool Weight: 5 kg
  • Spindle Power: 18.5 kW
  • Spindle Speed: 10500 RPM
  • Taper Size: SK 40
  • Through-spindle Coolant: Yes
  • Tool Stations: 42

Additional Information

Additional information

  • Feed Force X/Y-Axis: 4,000 N

  • Feed Force Z-Axis: 8,000 N

  • Rapid Traverse X/Y/Z: 60 m/min

  • Feed Rate X/Y/Z: 1 – 10,000 mm/min

  • Axis Dynamics: X = 5 m/s²

  • Axis Dynamics: Y = 8 m/s²

  • Axis Dynamics: Z = 12 m/s²

  • Distance Table to Spindle Nose: 350 – 710 mm

  • Tool Clamping Force: 7,000 N

  • Spindle Diameter: 65 mm

  • Constant Torque Range: Up to 3,000 rpm

  • Torque at 100% Duty Cycle: 30 Nm

  • Torque at 20% Duty Cycle: 59 Nm

  • Power Above 3,000 rpm at 100% Duty Cycle: 9.5 kW

  • Power Above 3,000 rpm at 20% Duty Cycle: 18.5 kW

  • Maximum Tool Diameter (All Positions Occupied): 88 mm

  • Maximum Tool Diameter (Adjacent Positions Free): 125 mm

  • Pull Stud Standard: DIN 69872-19

  • Tool Change Time (Chip-to-Chip): Approx. 2.4 s

  • Tool Offset Functions: Length and Radius Compensation

  • Tool Data Input: Via Input Station or CNC Screen Menu

  • Positioning Resolution: 0.001 mm

  • Machine Prepared For: Fixed Table with T-Slots and Location Holes

  • Machine Prepared For: NC Rotary Table with Tailstock

  • Tool Holder Type: SK40 DIN 69871 A/B

  • Siemens 840D SolutionLine

  • Chip conveyor optional

  • Belt filter system

  • Internal coolant supply via spindle

  • High pressure capability

  • Renishaw probe

  • Extraction system

  • Connection Voltage: 400 V

  • Phase: 3~

  • Frequency: 50 Hz

  • Nominal Current: 34 A

  • Additional Fuse: 3 x 50 A

  • Minimum Connection Cross Section: 25 mm²

  • CE Marking: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
