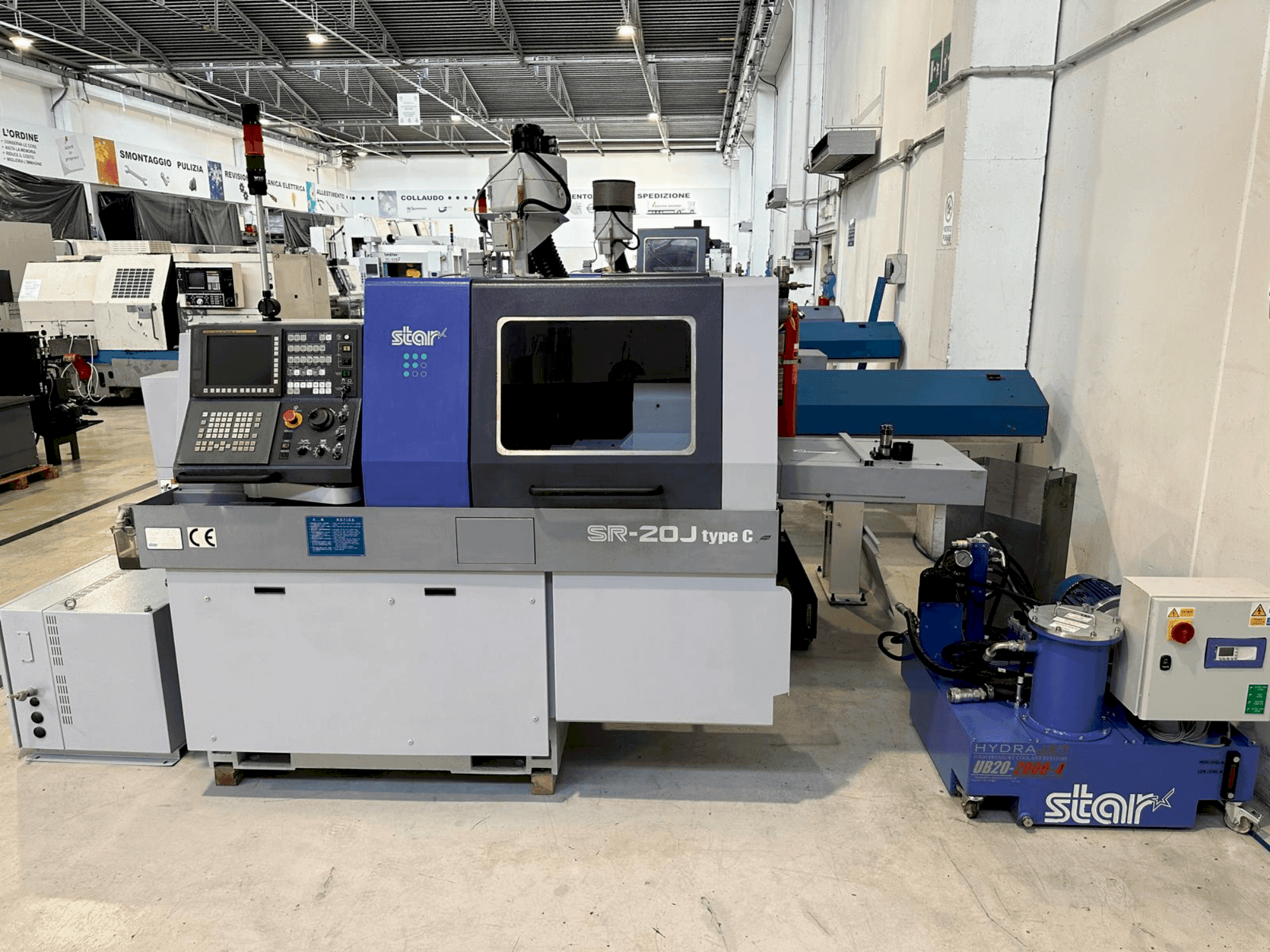

Front view of Star SR-20J type C machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Star SR-20J type C

Photo Gallery

Star - SR-20J type CIT-TUR-STA-2019-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SR-20J type C For Sale | gindumac.com

Show in original language

This 7-axis Star SR-20J type C swiss type turning machine was manufactured in 2019. It features a maximum machining diameter of 20mm, headstock stroke of 205mm, and spindle speeds up to 10,000rpm. Equipped with a Hydrajet high-pressure coolant system, Fire Trace suppressor, and a parts conveyor, it ensures efficient and safe operations. If you are looking to get high-quality turning capabilities consider the Star SR-20J type C machine we have for sale. Contact us for more information.

Overview

brand: Star
year: 2019
MODEL: SR-20J type C
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SR-20J type C

Control Unit

Control Brand: FANUC
Control Model: SERIES 31I-MODEL B

Dimensions

Machine Depth: 2250 mm
Machine Height: 1700 mm
Machine Weight: 2200 kg

Movement

Number of Axes: 7

Technical Specification

Max. Workpiece Diameter: 20 mm
Spindle Power: 1.2 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Equipped with Hydrajet UB20-2000-4 High Pressure Coolant System, Filtermist S400 Mist Extraction Unit, Fire Trace Fire Suppressor, Tool Detection, Parts Conveyor, Werna Signal Production Tower & Manuals.

Machine Benefits

Technical Machine Benefits

Maximum stationary drilling capacity: Ø12mm (power driven Ø10mm)
Maximum tapping capacity: m10 (power driven m8) // maximum tapping capacity (back tools): m10 (power driven m8)
Maximum machining diameter: 20mm // back working maximum machining diameter: Ø20mm
Maximum front ejection length: 100mm
Maximum part projection length: 32mm
Maximum drilling capacity (back tools): Ø12mm (power driven Ø6mm)
Tool shank: 12mm
4 position sleeve holder: front 4 / back 4
Cross milling: 3 positions
4 position back tools

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
