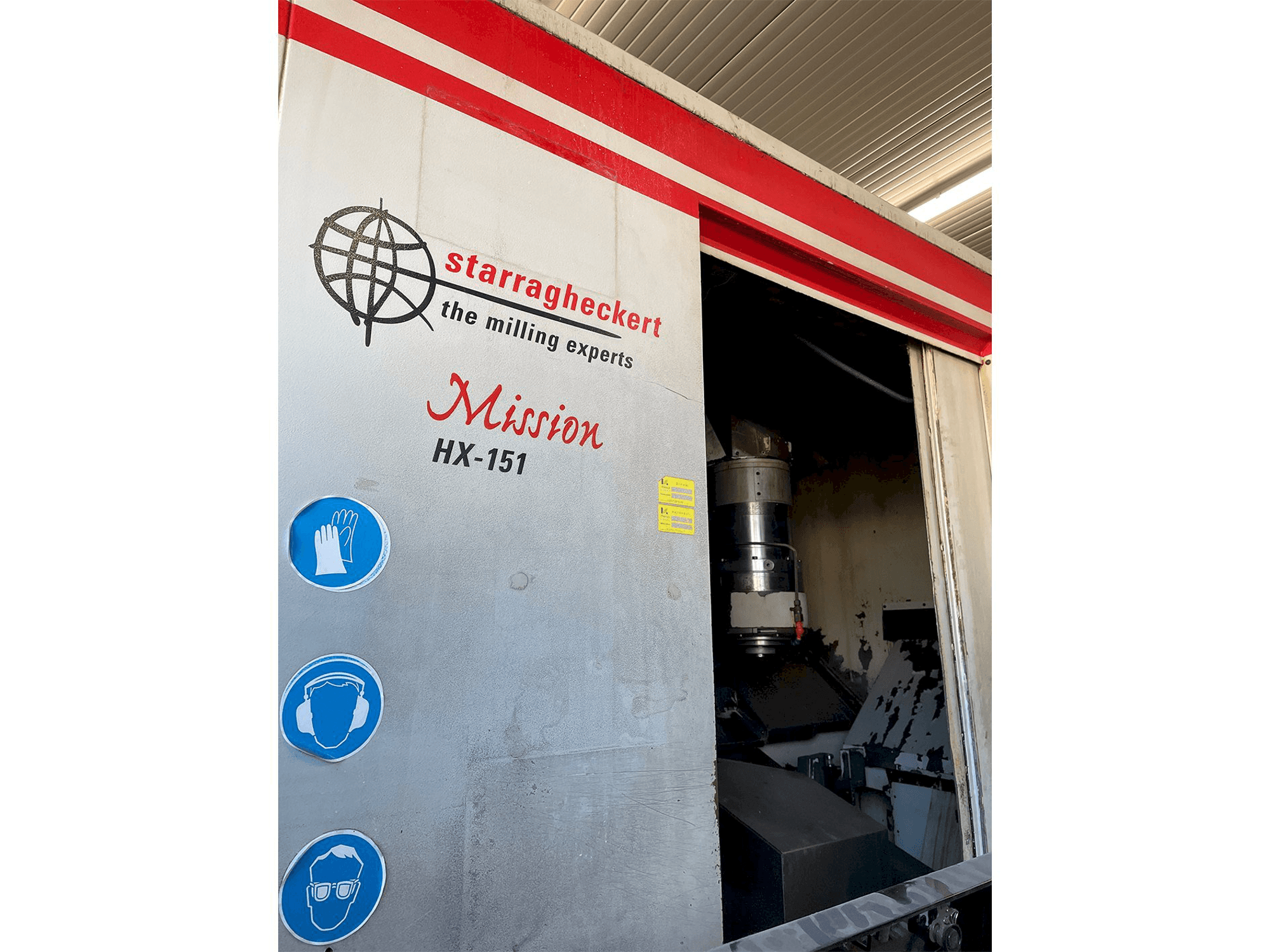

Front view of Starrag HX 151 (2004) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Starrag HX 151

Photo Gallery

Starrag - HX 151HU-MIL-STA-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Starrag HX 151 Milling Machine Center

Show in original language

This Starrag HX 151 Milling Machine Center manufactured in Germany in the year 2004. Operated through a Siemens 840D control unit. This machine can work with a spindle speed up to 15000 rpm and a blade length max of 700 mm.

Overview

brand: Starrag
year: 2004
MODEL: HX 151
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Starrag HX 151

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 27 kW
Tool taper: HSK A63

Movement

X-AXIS Movement: 1200 mm
X-AXIS Working Feed: 10 m/min
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Movement: 390 mm
Y-AXIS Working Feed: 10 m/min
Y-AXIS Rapid traverse: 25 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 10 m/min
Z-AXIS Rapid traverse: 25 m/min
A-AXIS Working Feed: 120 u/min
A-AXIS Rapid traverse: 120 u/min
B-AXIS Movement: +/-50º
B-AXIS Working Feed: 30 u/min
B-AXIS Rapid traverse: 30 u/min

Additional Information

Machine Benefits

Technical Machine Benefits

Blade length max 700 mm
Swivel rotation diameter max 300 mm
Degree of fredom pivoted on 1-axis
Angular speed 2900 rpm
Torque 85 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
