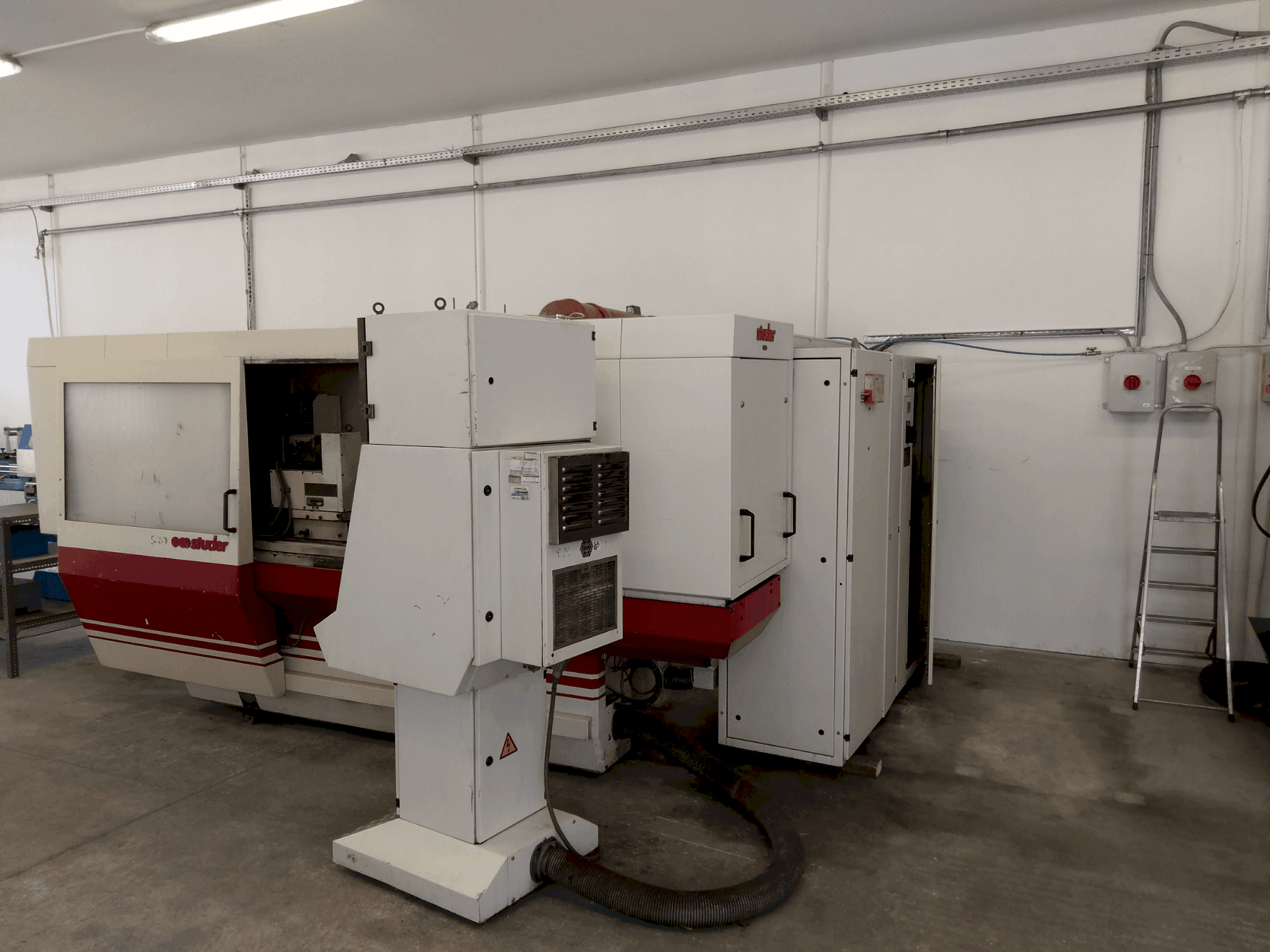

This cylindrical grinding machine was manufactured in 1990. Equipped with a turret head for external and internal grinding, a Marposs measuring control unit, and a robust coolant filtration system. It handles a grindable diameter of 450 mm and a length of 1000 mm, supporting a maximum workpiece weight of 130 kg. Consider the opportunity to buy this STUDER S40 cylindrical grinding machine. Contact us for more information about this machine.
Overview
- brand: STUDER
- year: 1990
- MODEL: S40
- application type: Grinding
- Location: Hungary
- machine type: Cylindrical Grinding Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - STUDER S40
General Data
- Machine weight: 3600 kg
Control Unit
- Brand: SIEMENS
- Model: Marposs Measuring Control
Workpiece
- Workpiece weight: 130 kg
Additional Information
- Technical Machine Benefits:
- - Grindable diameter: 450 mm // grindable length: 1000 mm
- - Center height: 225 mm // center distance: 1000 mm
- - Accessories: chuck, magnetic chuck, flat disc Ø195 mm and Ø400 mm, steady rest
- - Turret head (external/internal grinding)
- - Equipped with measuring control unit, coolant filtration system, and additional accessories
- - Grinding wheel diameter: 400 mm
- - Wheel bore diameter: 80/127 mm
- - Power supply/frequency: 380 v / 50 hz
- - Total power consumption: 22 kva
- - Space requirement (approx. ): 4. 5 x 2. 1 x 2. 0 m
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
