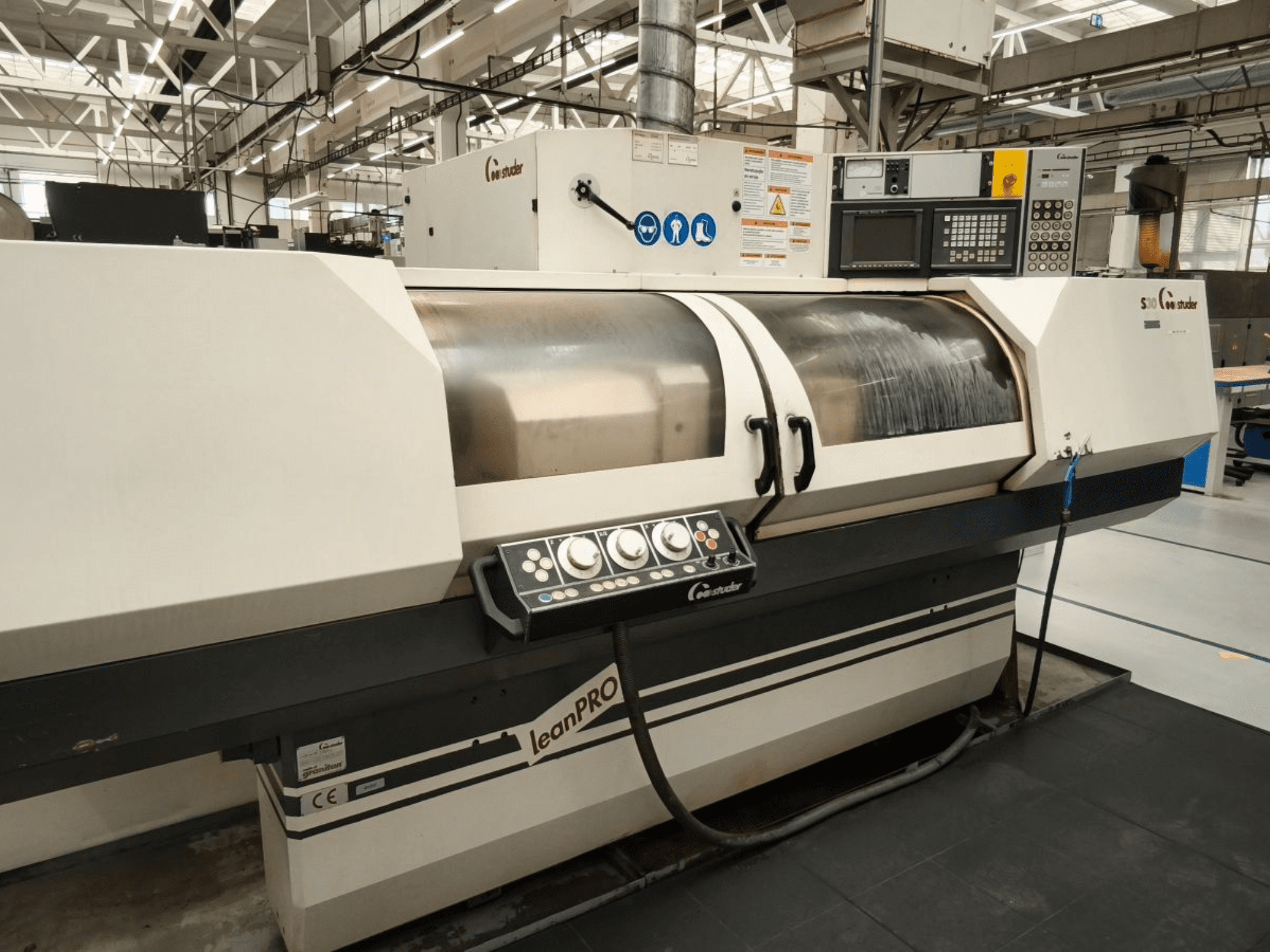

Cylindrical grinding machine manufactured in 1999. This STUDER S30 LEAN PRO features maximum table swivel 8.5 degrees, X-axis travel of 275 mm, and Z-axis travel of 1050 mm. If you are looking to get high-quality grinding capabilities, consider the STUDER S30 LEAN PRO machine we have for sale. Contact us for further details.
Overview
- brand: STUDER
- year: 1999
- MODEL: S30 LEAN PRO
- application type: Grinding
- Location: Czech Republic
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - STUDER S30 LEAN PRO
Control Unit
- Control Brand: FANUC
- Control Model: Series 16-T
Movement
- Number of Axes: 2
- X-axis Travel: 275 mm
- Z-axis Travel: 1050 mm
Additional Information
TECHNICAL SPECS:
- Centre height: 175 mm (6.9") - Centre distance: 1000 mm (39.4")
- Longitudinal slide Max. travel: 1050 mm (41.4")
- Longitudinal slide Speed (vt): 0.0001 - 10,000 mm/min (394 ipm)
- Longitudinal slide Resolution: 0.0001 mm (.000.004")
- Maximum table swivel (Centre distance 1000): 8.5 degrees
- Wheelhead slide Max. travel: 275 mm (10.8")
- Wheelhead slide Speed (vt): 0.0001 - 10,000 mm/min (394 ipm)
- Wheelhead slide Resolution: 0.0001 mm (.000.004")
- Max. workpiece weight between centres: 130 kg (286 lbs)
- Max. load moment (Mmax): 160 Nm (116 ft lbs)
- Workhead: Non-swivelling, Roller bearing, AC-Servodrive - Workhead Option: Camlock Adapter - Tailstock Fitting taper: Morse 3 - Tailstock Travel of barrel: 35 mm (1.37")
- Control Unit: Fanuc Series 16 (32-Bit processors, ISO and pictogram programming)
- Wheelhead Variants: Turret wheelhead U left 400x80 mm Turret wheelhead U left 500x80 mm Grinding wheel right 400x40 mm Grinding wheel right 250x25 mm
- Internal grinding attachment: For belt driven spindles Ø100 mm - Max. grinding length (Ls): SPW + b - 80 mm - Max. diameter with three-jaw chuck (ØF): 129 mm - Max. diameter with closed steady (ØL): 140 mm
Hours: 47.550
Condition: Well maintained
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
